990015 (PM 300) - Gravely Pro-Master Zero-Turn Mower, 25hp Kohler (SN: 000101 - 000675) SULKY FRAME & SEAT Parts Diagram

Pro-Master Zero-Turn Mower, 25hp Kohler

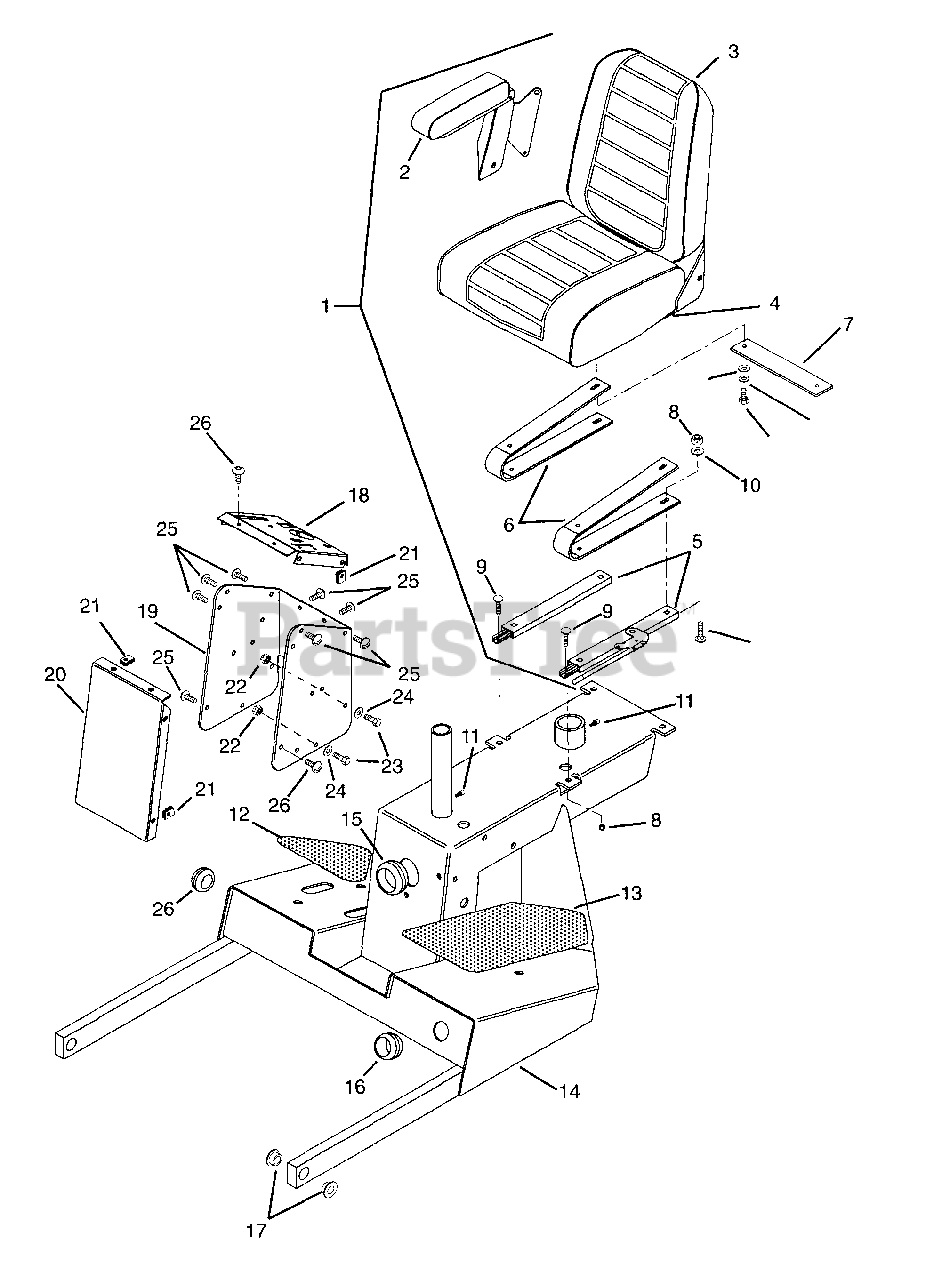

SULKY FRAME & SEAT Parts Diagram

  • Title

1

Gravely 09086300

Assembly-Seat

Note: (Contains items 2-5)

$

$

Not available

2

Gravely 21512400

Arm Rest-Right Hand

$

$

Not available

2

Gravely 21512300

Arm Rest-Left Hand

$

$

Not available

3

Gravely 21512100

Cushion-Back

$

$

Not available

4

Gravely 21512200

Seat Cushion w/Switch

$330.99

$

Usually ships in 4-12 days

0

5

Gravely 03600800

Seat Slides with Handle

$104.99

$

Usually ships in 4-12 days

0

6

Gravely 047528

Spring-Seat
(Superseded to 03486851)

$

$

Not available

7

Gravely 051278

Bracket-Seat
(Superseded to 09004051)

$

$

Not available

8

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06216100

Bolt-Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

12

Gravely 046238

Cover-Footboard Right Hand
(Superseded to 08901700)

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 046237

Cover-Footboard Left Hand
(Superseded to 08984300)

$11.99

$

Usually ships in 4-12 days

0

14

Gravely 050512

Weldment-Rear Frame
(Superseded to 08996800)

$

$

Not available

15

Gravely 051360

Grommet
(Superseded to 07536600)

$

$

Not available

16

Gravely 046396

Grommet 1.50 x 1.75 x 2.12
(Superseded to 07532300)

$

$

Not available

17

Gravely 010174

Bushing-Flange .762 x 1.0 x .580 x 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

18

Gravely 09084700

Panel-Instrument

$

$

Not available

19

Gravely 09084800

Panel-Support Instrument Panel

$51.99

$

Usually ships in 4-12 days

0

20

Gravely 09084900

Front Panel

$

$

Not available

21

Gravely 032369

Nut-Retainer .25-20 x .56
(Superseded to 07009000)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 05947700

Bolt-Hex .25-20 x 1.00 Grade 5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

24

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06114400

Screw-Machine .25-20

$0.99

$

In Stock, Qty 10

0

26

Gravely 046397

Grommet 1.25 x 1.5 x 1.81
(Superseded to 07532400)

$

$

Not available
