990015 (PM 300) - Gravely Pro-Master Zero-Turn Mower, 25hp Kohler (SN: 000101 - 000675) STEERING Parts Diagram

Pro-Master Zero-Turn Mower, 25hp Kohler

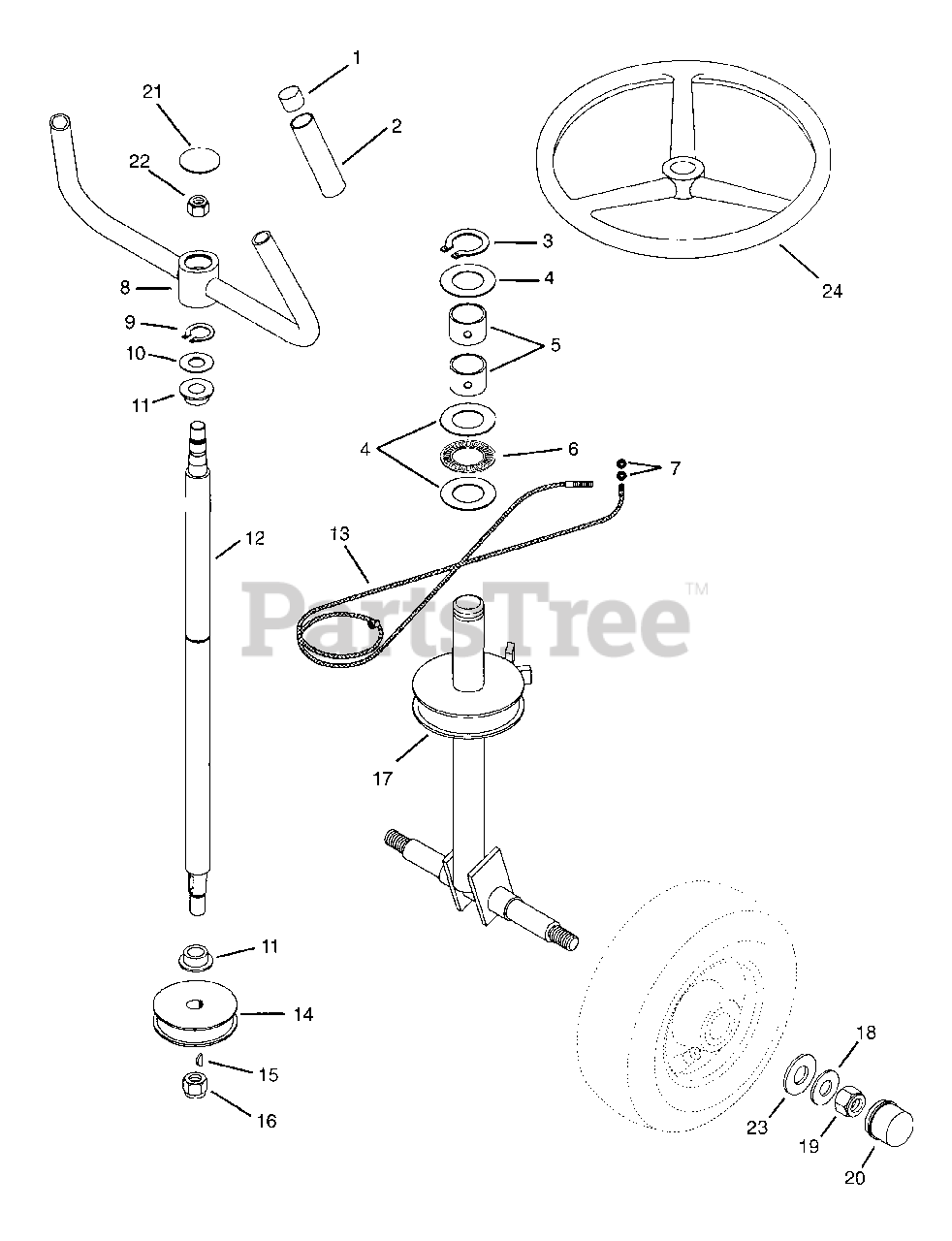

STEERING Parts Diagram

  • Title
1

Gravely 037973

Closure-Vinyl
(Superseded to 07524100)

$3.99

$

Usually ships in 4-12 days

0

2

Gravely 045550

Grip
(Superseded to 01570000)

$17.99

$

In Stock, only 2 left!

0

3

Gravely 046333

Ring-Retaining-External 1.5 x 1.38
(Superseded to 05715500)

$5.99

$

Usually ships in 4-12 days

0

4

Gravely 018954

Washer-Thrust 1.502 x 2.18 x .063
(Superseded to 06432200)

$13.99

$

In Stock, only 1 left!

0

5

Gravely 044954

Bearing 1.000 x 1.135 x 1.002
(Superseded to 05516500)

$41.99

$

Usually ships in 4-12 days

0

6

Gravely 035639

Bearing-Needle-Thrust 1.50 x 2.187 x .0781
(Superseded to 05424700)

$20.99

$

Usually ships in 4-12 days

0

7

Gravely 06536100

Nut-Jam .312-18
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 09085300

Weldment, Handlebar

$136.99

$

Usually ships in 4-12 days

0

9

Gravely 017980

Ring-Retaining-External .906 x .078
(Superseded to 05707300)

$2.99

$

In Stock, Qty 9

0

10

Gravely 017959

Washer-Thrust 1.55 x 1.002 x .093
(Superseded to 06426500)

$18.99

$

In Stock, only 2 left!

0

11

Gravely 018355

Bushing-Flange 1.020 x 1.385 x .75 x 1.75
(Superseded to 05520100)

$11.99

$

In Stock, Qty 12

0

12

Gravely 09085400

Shaft-Steering

$34.99

$

Usually ships in 4-12 days

0

13

Gravely 047194

Cable-Steering
(Superseded to 01404400)

$

$

Not available

14

Gravely 044875

Pulley-Cable
(Superseded to 08956700)

$77.99

$

Usually ships in 4-12 days

0

15

Gravely 120502

Key-Woodruff 3/16 x 7/8
(Superseded to 06608200)

$3.99

$

In Stock, only 1 left!

0

16

Gravely 06535300

Nut-Locking 5/8-11

$2.99

$

Usually ships in 4-12 days

0

17

Gravely 047001

Weldment-Caster Wheel
(Superseded to 09093651)

$

$

Not available

18

Gravely 06439000

Washer-Flat .812 x 1.469 x .134
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06535400

Nut-Locking-Center .62 x - 11

$5.99

$

Usually ships in 4-12 days

0

20

Gravely 038919

Cap-Dust
(Superseded to 20655400)

$10.99

$

In Stock, Qty 20+

0

21

Gravely 07528400

Closure-Vinyl

$3.49

$

Usually ships in 4-12 days

0

22

Gravely 06535600

Nut-Hex .62-11

$2.99

$

In Stock, only 3 left!

0

23

Gravely 06435300

Washer-Hardened-Thrust 1.00 x 1.55 x .03

$4.99

$

Usually ships in 4-12 days

0

24

Gravely 03066600

Steering Wheel

Note: (Optional)

$

$

Not available
