990014 (PM 300) - Gravely Pro-Master Zero-Turn Mower, 20hp Kohler (SN: 000101 & Above) PARKING BRAKE Parts Diagram

Pro-Master Zero-Turn Mower, 20hp Kohler

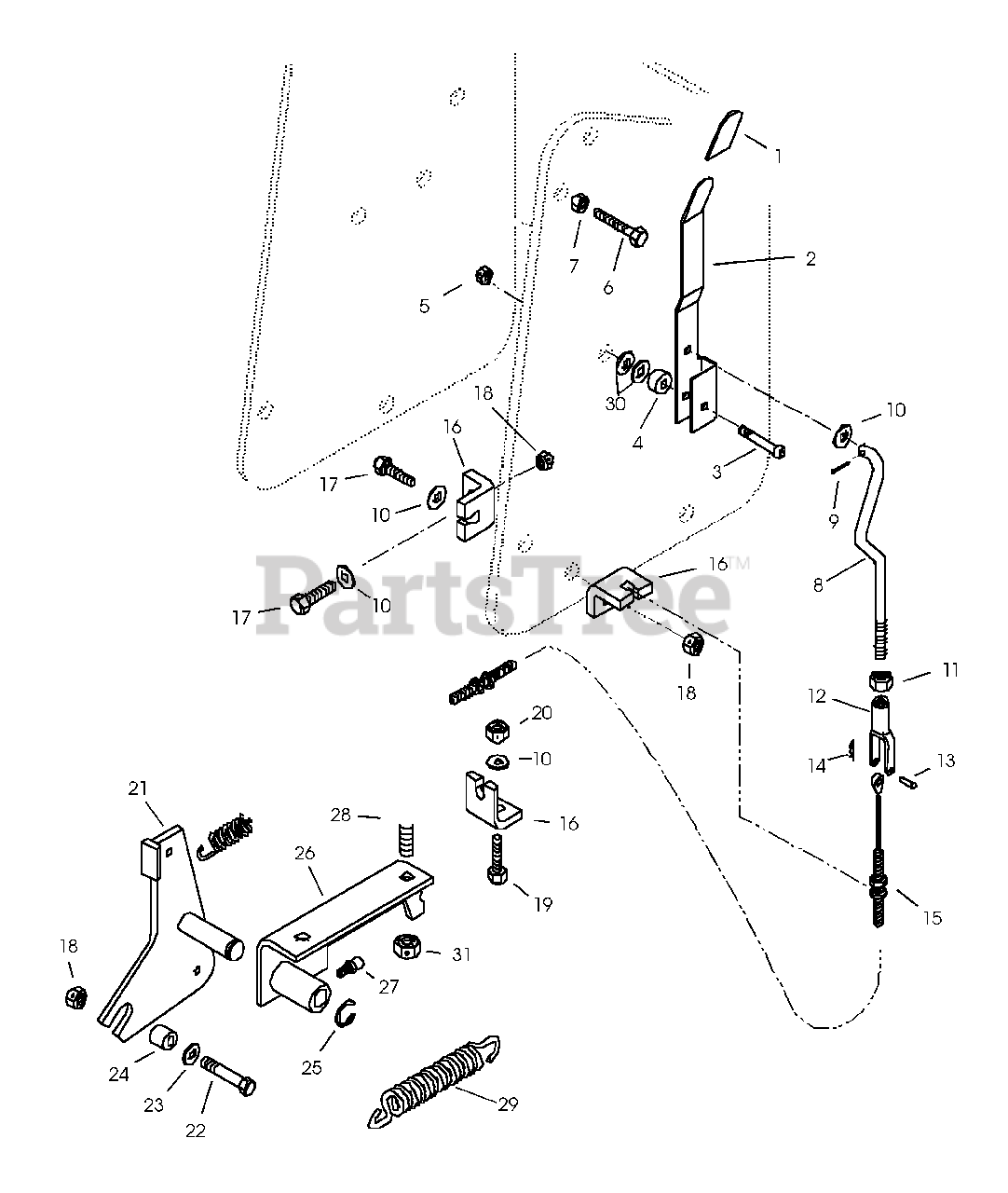

PARKING BRAKE Parts Diagram

  • Title

1

Gravely 07509400

Grip-Handle

$

$

Not available

2

Gravely 00514100

Lever-Brake

$

$

Not available

3

Gravely 07052300

Shoulder Bolt .38-16 X 1.25

$

$

Not available

4

Gravely 05522100

Sleeve

$4.99

$

Usually ships in 4-12 days

0

5

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 05964700

Bolt-Hex .25-20 x 1.5 Grade 5
(Superseded to 05901935)

$2.49

$

In Stock, only 1 left!

0

7

Gravely 06533200

Nut-Hex .25-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

8

Gravely 09085200

Rod-Brake Link

$

$

Not available

9

Gravely 06707300

Pin-Cotter .12 x .75

$0.99

$

In Stock, Qty 5

0

10

Gravely 06437200

Washer-Flat-Steel .344 X .688 X 1.25
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06536700

Nut-Jam .31-24
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

12

Gravely 00513800

Yoke .312-24 X 2.25

$29.99

$

Usually ships in 4-12 days

0

13

Gravely 06814000

Pin-Clevis .31 X .937

$3.99

$

In Stock, only 1 left!

0

14

Gravely 06713500

Pin-Hair Internal .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06940400

Cable-Brake

$75.99

$

Usually ships in 4-12 days

0

16

Gravely 045383

Bracket-Cable
(Superseded to 08968400)

$

$

Not available

17

Gravely 05947700

Bolt-Hex .25-20 x 1.00 Grade 5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

18

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 051665

Weldment-Brake Arm
(Superseded to 09006600)

$

$

Not available

22

Gravely 05964700

Bolt-Hex .25-20 x 1.75 Grade 5
(Superseded to 05901935)

$2.49

$

In Stock, only 1 left!

0

23

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 051358

Bushing-Sleeve .260 x .500 x .750
(Superseded to 08904700)

$

$

Not available

25

Gravely 014981

Ring-Retaining-External .392 x .042

$

$

Not available

26

Gravely 052065

Weldment-Brake Pivot
(Superseded to 09009000)

$

$

Not available

27

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

28

Gravely 05948700

Bolt-Hex .38-16 X 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 047314

Spring-Tension .093 x .75 x 4.0
(Superseded to 08343000)

$14.99

$

In Stock, only 1 left!

0

30

064358

Washer-Flat-Steel .312 x .734 x .065

$

$

Not available

31

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0
