990014 (PM 300) - Gravely Pro-Master Zero-Turn Mower, 20hp Kohler (SN: 000101 & Above) MAIN DRIVE Parts Diagram

Pro-Master Zero-Turn Mower, 20hp Kohler

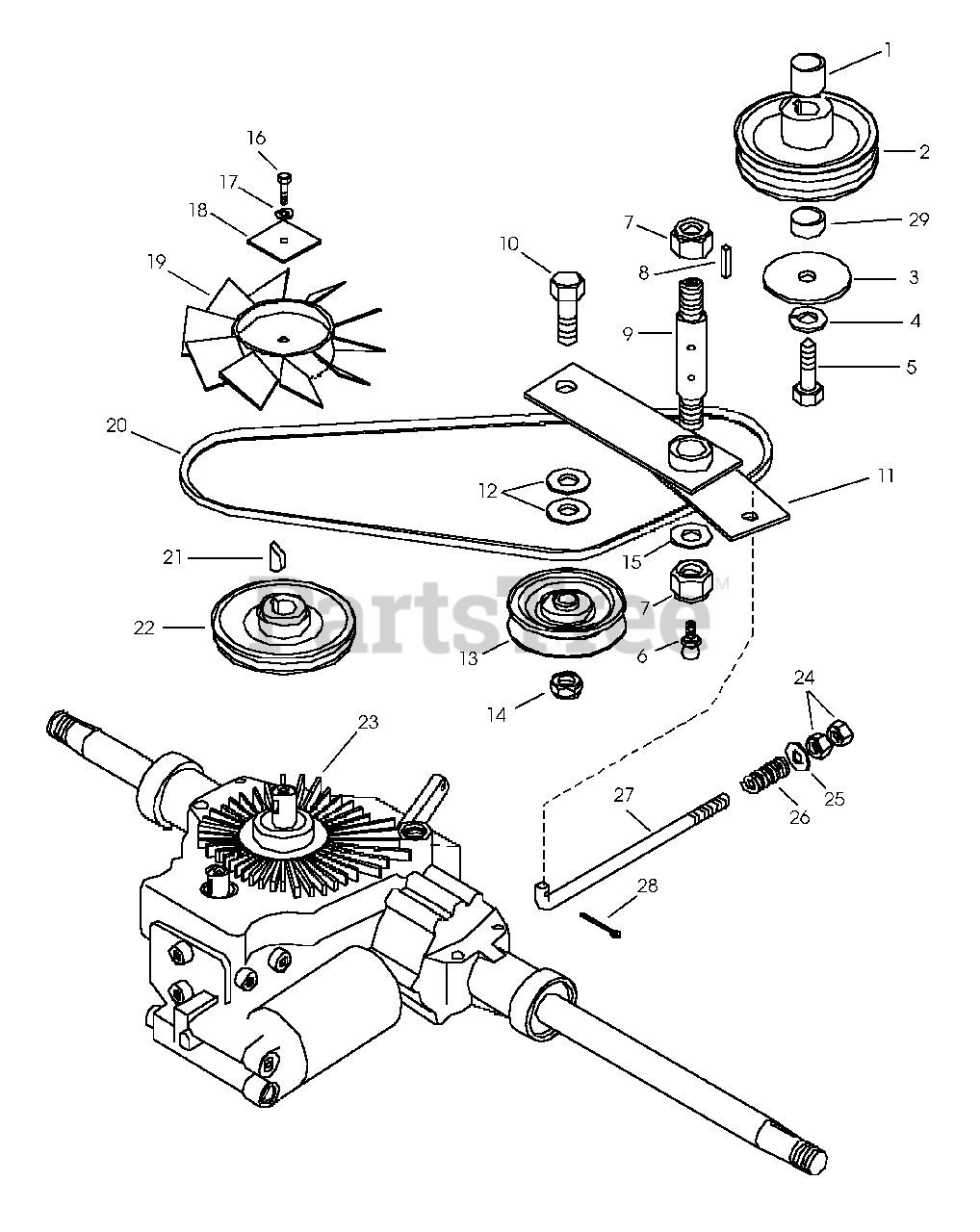

MAIN DRIVE Parts Diagram

  • Title

1

Gravely 051207

Bushing-Sleeve 1.13 x 1.38 x 1.25
(Superseded to 08984200)

$

$

Not available

2

Gravely 049737

Sheave
(Superseded to 08992000)

Note: (Model 014)

$

$

Not available

2

Gravely 09078300

Sheave

Note: (Model 015)

$

$

Not available

3

Gravely 06426400

Washer-Special .469 x 2.000 x .250
(Superseded to 06443600)

$6.99

$

In Stock, only 2 left!

0

4

Gravely 06309300

Washer-Locking .44 x 1.09
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

5

Gravely 05958800

Bolt-Hex .44-20 x 1.50
(Superseded to 05902004)

$5.99

$

In Stock, Qty 5

0

6

Gravely 411010

Fitting-Lube 1/8
(Superseded to 07012500)

$3.99

$

In Stock, only 2 left!

0

7

Gravely 06535300

Nut-Locking-Center .62-11

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 018345

Key-Square .248 x 1.25 x .248
(Superseded to 06606900)

$2.99

$

Usually ships in 4-12 days

0

9

Gravely 051886

Pin-Pivot
(Superseded to 09008100)

$77.99

$

In Stock, only 2 left!

0

10

Gravely 05967000

Bolt-Hex .38-16 x .50 Grade 5

$3.49

$

Usually ships in 4-12 days

0

11

Gravely 049329

Weldment-Idler Arm
(Superseded to 08988400)

$165.99

$

Usually ships in 4-12 days

0

12

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 044518

Pulley-V 4.00 x .84
(Superseded to 07318000)

$45.99

$

Usually ships in 4-12 days

0

14

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

15

Gravely 06442800

Washer-Flat-Steel .656 x 1.31 x .095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 05947400

Bolt-Hex .25-20 x 1.25 Grade 5
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

17

Gravely 06308400

Washer-Lock .25 x .062
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 046284

Washer-Flat-Steel .265 x 1.75 Square x .119
(Superseded to 06425800)

$

$

Not available

19

Gravely 044380

Fan
(Superseded to 09024700)

$

$

Not available

20

Gravely 034944

V-Belt A-Section 18.05 x .495
(Superseded to 07220000)

$28.99

$

In Stock, only 1 left!

0

21

Gravely 431787

Key-Woodruff .19 x .63
(Superseded to 06609300)

$2.99

$

In Stock, Qty 11

0

22

Gravely 049738

Pulley-Drive
(Superseded to 08992100)

$

$

Not available

23

Gravely 09036700

Transaxle-Eaton #851-109

$

$

Not available

24

Gravely 06535900

Nut-Hex .375-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 021506

Spring-Compression .072 x .561 x 2.50
(Superseded to 08329600)

$22.99

$

Usually ships in 4-12 days

0

27

Gravely 09037500

Rod-Idler

$258.99

$

Usually ships in 4-12 days

0

28

Gravely 06706900

Pin-Cotter .09 x .75

$0.99

$

In Stock, Qty 8

0

29

Gravely 03593100

Spacer 1.137 x 1.50 x .656

Note: (Model 015)

$

$

Not available
