990014 (PM 300) - Gravely Pro-Master Zero-Turn Mower, 20hp Kohler (SN: 000101 & Above) HYDRAULIC SYSTEM Parts Diagram

Pro-Master Zero-Turn Mower, 20hp Kohler

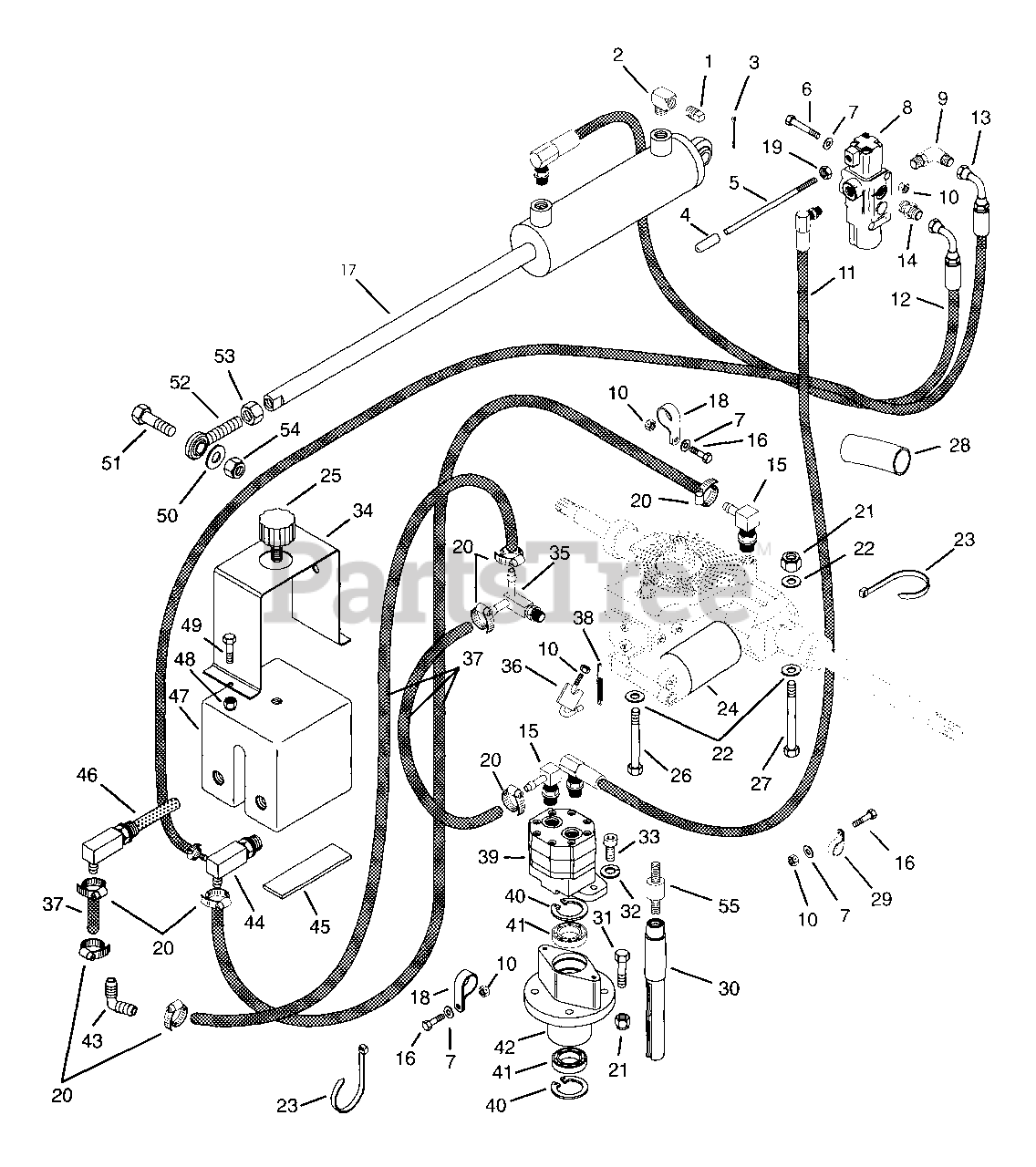

HYDRAULIC SYSTEM Parts Diagram

  • Title

1

Gravely 07050600

Plug-Breather

$

$

Not available

2

Gravely 07052600

Adapter 6MB-6FP x 90

$

$

Not available

3

Gravely 06712600

Pin-Cotter .12 x 1.25
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 043196

Grip-PTO Lever
(Superseded to 07528200)

$9.99

$

Usually ships in 4-12 days

0

5

Gravely 09085100

Rod-Hydraulic Lift

$5.99

$

Usually ships in 4-12 days

0

6

Gravely 05966300

Bolt-Hex .25-20 x 3.00
(Superseded to 05902128)

$

$

Not available

7

Gravely 06437300

Washer-Flat-Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 09067400

Valve-Hydraulic

$

$

Not available

9

Gravely 07051200

Fitting-Adapter (TF5515-6-8)

Note: (TF5515-6-8)

$

$

Not available

10

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 09086100

Assembly-Hydraulic Hose

$

$

Not available

12

Gravely 050524

Assembly-Pressure Hose
(Superseded to 08997000)

$188.99

$

Usually ships in 4-12 days

0

13

Gravely 09086000

Assembly-Hydraulic Hose

$34.99

$

Usually ships in 4-12 days

0

14

Gravely 07017500

Adapter-Pipe .56-18 "O" Ring to .56-18 M37

$11.99

$

In Stock, only 2 left!

0

15

Gravely 050192

Fitting
(Superseded to 03450600)

$32.99

$

Usually ships in 4-12 days

0

16

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 050128

Cylinder
(Superseded to 08994300)

$

$

Not available

18

Gravely 050395

Clamp, Steel 1.0
(Superseded to 06917900)

$14.99

$

Usually ships in 4-12 days

0

19

Gravely 06537800

Nut-Jam M10-1.5

$

$

Not available

20

Gravely 021247

Clamp .88 Dia. Hose
(Superseded to 06923500)

$1.99

$

In Stock, Qty 6

0

21

Gravely 06529600

Nut-Locking-Center.375-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06436200

Washer-Flat-Steel .406 X .812 X .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 041634

Tie Wrap-Black
(Superseded to 07519900)

$3.49

$

Usually ships in 4-12 days

0

24

Gravely 047195

Filter-Oil
(Superseded to 03467800)

$60.99

$

In Stock, only 1 left!

0

25

Gravely 050507

Cap-Filter
(Superseded to 08996400)

$35.99

$

In Stock, only 1 left!

0

26

Gravely 05961100

Bolt-Hex .38-16 x 3.25 Grade 5
(Superseded to 05901817)

$3.99

$

In Stock, Qty 20+

0

27

Gravely 05965400

Bolt-Hex .38-16 x 4.00 Grade 5

$3.99

$

In Stock, only 1 left!

0

28

Gravely 050782

Sleeve-Protective
(Superseded to 09011400)

$

$

Not available

29

Gravely 050394

Clamp-Cushioned Steel
(Superseded to 06908200)

$5.99

$

Usually ships in 4-12 days

0

30

Gravely 09085000

Shaft

$

$

Not available

31

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

32

Gravely 06308800

Washer-Locking .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 426368

Screw-Cap 38-16 x .75 Socket Head
(Superseded to 05933200)

$3.99

$

Usually ships in 4-12 days

0

34

Gravely 050525

Strap-Tank
(Superseded to 08997100)

$5.99

$

Usually ships in 4-12 days

0

35

Gravely 051637

Fitting-Pipe .875-14
(Superseded to 07018000)

$

$

Not available

36

Gravely 045404

Weldment Lever
(Superseded to 08968500)

$14.99

$

Usually ships in 4-12 days

0

37

Gravely 046379

Hose
(Superseded to 00915100)

$3.49

$

In Stock, Qty 20+

0

38

Gravely 034385

Spring-Tension .061 x .50 x 3.5
(Superseded to 08331900)

$30.99

$

In Stock, only 1 left!

0

39

Gravely 09085500

Pump-Hydraulic

$

$

Not available

40

Gravely 022497

Ring-Retaining-Internal 2.210 x .062
(Superseded to 05714200)

$2.99

$

In Stock, Qty 5

0

41

Gravely 032050

Bearing-Ball 1.0 x 2.0 x .56
(Superseded to 05416000)

$14.99

$

In Stock, only 3 left!

0

42

Gravely 09085600

Housing

$

$

Not available

43

Gravely 053232

Elbow-Barbed .63 x .63
(Superseded to 07019000)

$5.99

$

Usually ships in 4-12 days

0

44

Gravely 049068

Fitting with O-Ring 88-14 x .268
(Superseded to 07020100)

$

$

Not available

45

Gravely 031884

Pad, Gas Tank
(Superseded to 03301900)

$

$

Not available

46

Gravely 050506

Fitting-Filter
(Superseded to 08996300)

$

$

Not available

47

Gravely 050272

Tank Hydraulic
(Superseded to 09032900)

$

$

Not available

48

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

49

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

50

Gravely 06441000

Washer-Flat-Steel .50 x 1.25 x .083
(Superseded to 06401202)

$2.99

$

In Stock, Qty 6

0

51

Gravely 05962000

Bolt-Hex .50-13 x 1.50 Grade 5
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

52

Gravely 044950

Assembly-Rod End (Right Hand)
(Superseded to 08959600)

Note: (Right Hand)

$38.99

$

Usually ships in 4-12 days

0

53

Gravely 06539500

Nut-Jam .50-20 Grade 2

$2.49

$

Usually ships in 4-12 days

0

54

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

55

Gravely 21528000

Coupler, Drive

$

$

Not available
