990014 (PM 300) - Gravely Pro-Master Zero-Turn Mower, 20hp Kohler (SN: 000101 & Above) CONTINUITY DIAGRAMS Parts Diagram

Pro-Master Zero-Turn Mower, 20hp Kohler

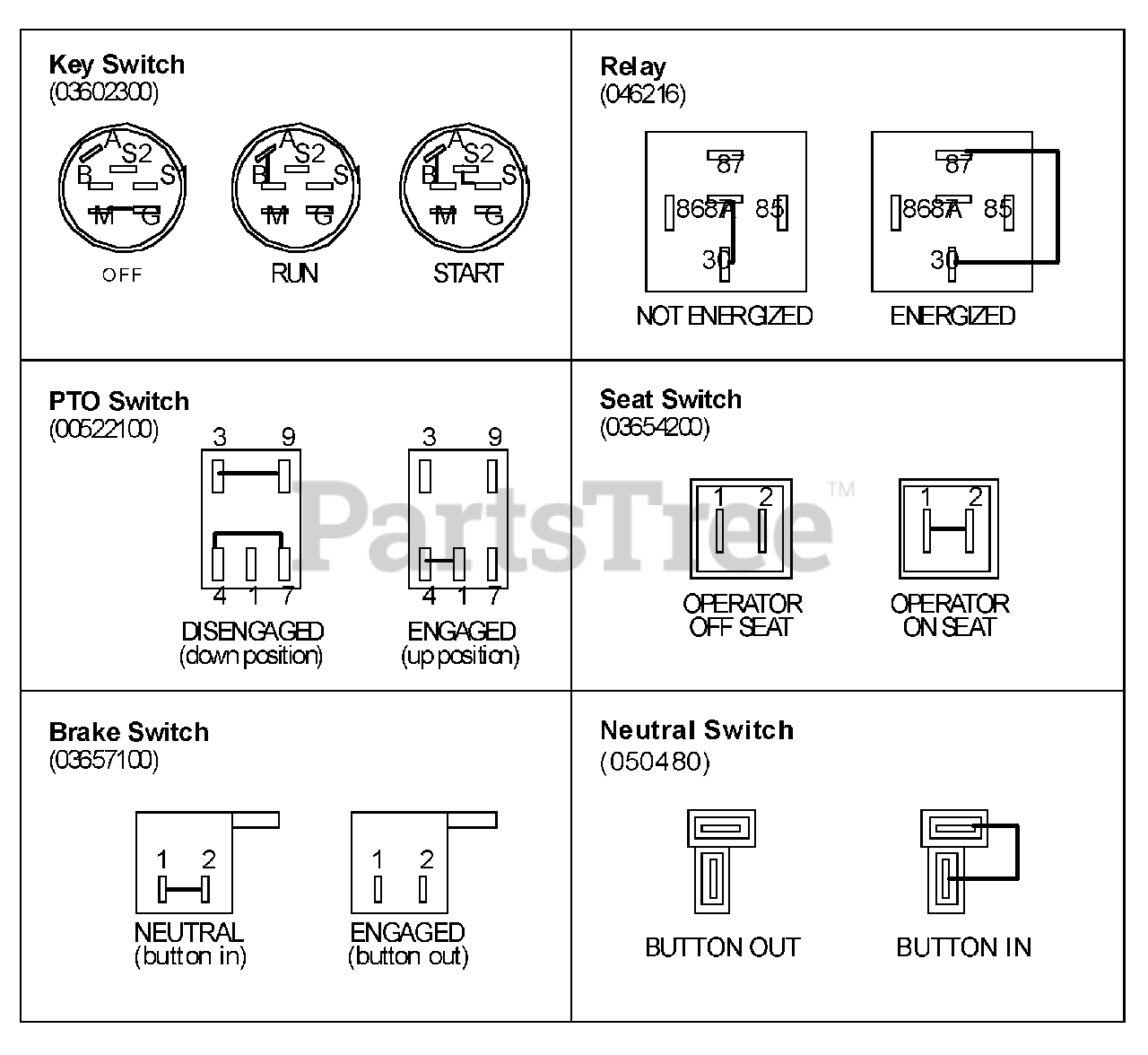

CONTINUITY DIAGRAMS Parts Diagram

  • Title
03602300

Gravely 03602300

Key Switch

$26.99

$

In Stock, only 1 left!

0

046216

Gravely 046216

Relay
(Superseded to 08975700)

$

$

Not available

00522100

Gravely 00522100

PTO Switch
(Superseded to 01545600)

$25.99

$

In Stock, Qty 20+

0

03654200

Gravely 03654200

Seat Switch

$

$

Not available

03657100

Gravely 03657100

Brake Switch

$9.49

$

In Stock, only 1 left!

0

050480

Gravely 050480

Neutral Switch
(Superseded to 08996200)

$52.99

$

Usually ships in 4-12 days

0
