990013 (PM 300) - Gravely Pro-Master Zero-Turn Mower, 25hp Kohler (SN: 000101 & Above) MAIN FRAME Parts Diagram

Pro-Master Zero-Turn Mower, 25hp Kohler

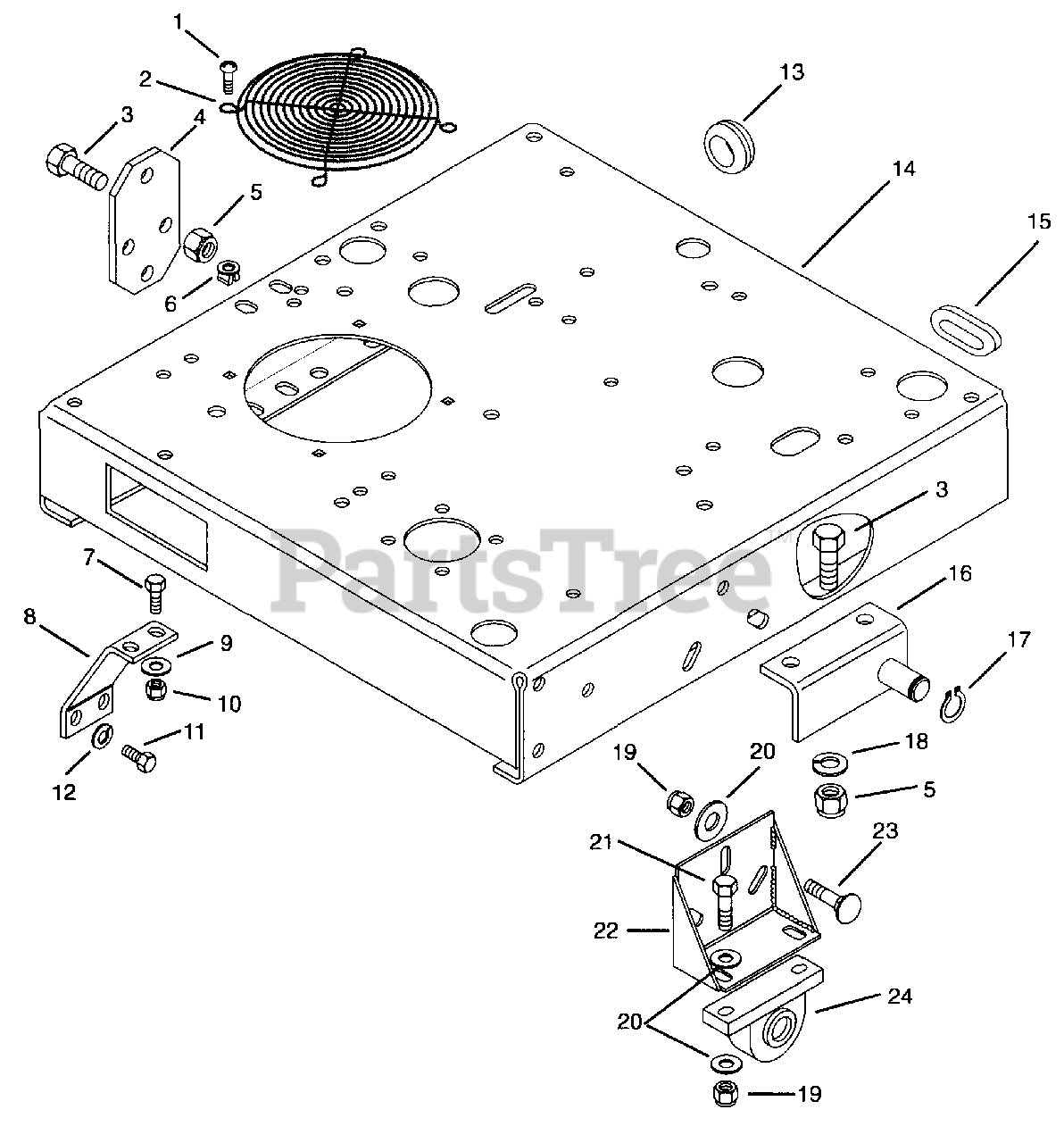

MAIN FRAME Parts Diagram

  • Title

1

Gravely 07412000

Screw-Tapping .25-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 045251

Guard Fan
(Superseded to 09029700)

$119.99

$

Usually ships in 4-12 days

0

3

Gravely 05962000

Bolt-Hex .50-13 x 1.50 Grade 5
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

4

Gravely 045877

Plate
(Superseded to 08972051)

$11.99

$

Usually ships in 4-12 days

0

5

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 1 left!

0

6

Gravely 011777

Grommet, Plastic
(Superseded to 07538100)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 044577

Bracket, Transaxle Support
(Superseded to 08952600)

$5.99

$

Usually ships in 4-12 days

0

9

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

10

05629800

Nut-Locking-Center .31-18

$

$

Not available

11

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06308600

Washer-Lock .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 046396

Grommet 1.50 x 1.75 x 2.12
(Superseded to 07532300)

$

$

Not available

14

Gravely 049722

Weldment, Frame
(Superseded to 09094553)

$

$

Not available

15

Gravely 046334

Grommet .63 x .687 x 1.25
(Superseded to 07531900)

$6.99

$

Usually ships in 4-12 days

0

16

Gravely 049643

Weldment, Pivot Left Hand
(Superseded to 08989800)

$51.99

$

Usually ships in 4-12 days

0

16

Gravely 049644

Weldment, Pivot Right Hand
(Superseded to 08989900)

$51.99

$

Usually ships in 4-12 days

0

17

Gravely 026300

Ring-Retaining-External .689 x .077
(Superseded to 05714600)

$2.49

$

In Stock, Qty 5

0

18

Gravely 06307300

Washer-Lock .50 x .125
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

19

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

22

Gravely 049647

Weldment, Axle Support
(Superseded to 08990200)

$

$

Not available

23

Gravely 06215500

Bolt-Round Head Square Neck .38-16 x 1.00
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

24

Gravely 044599

Bearing, Pillow Block 1.0 x 2.688 x 6.188
(Superseded to 05425600)

$82.99

$

Usually ships in 4-12 days

0
