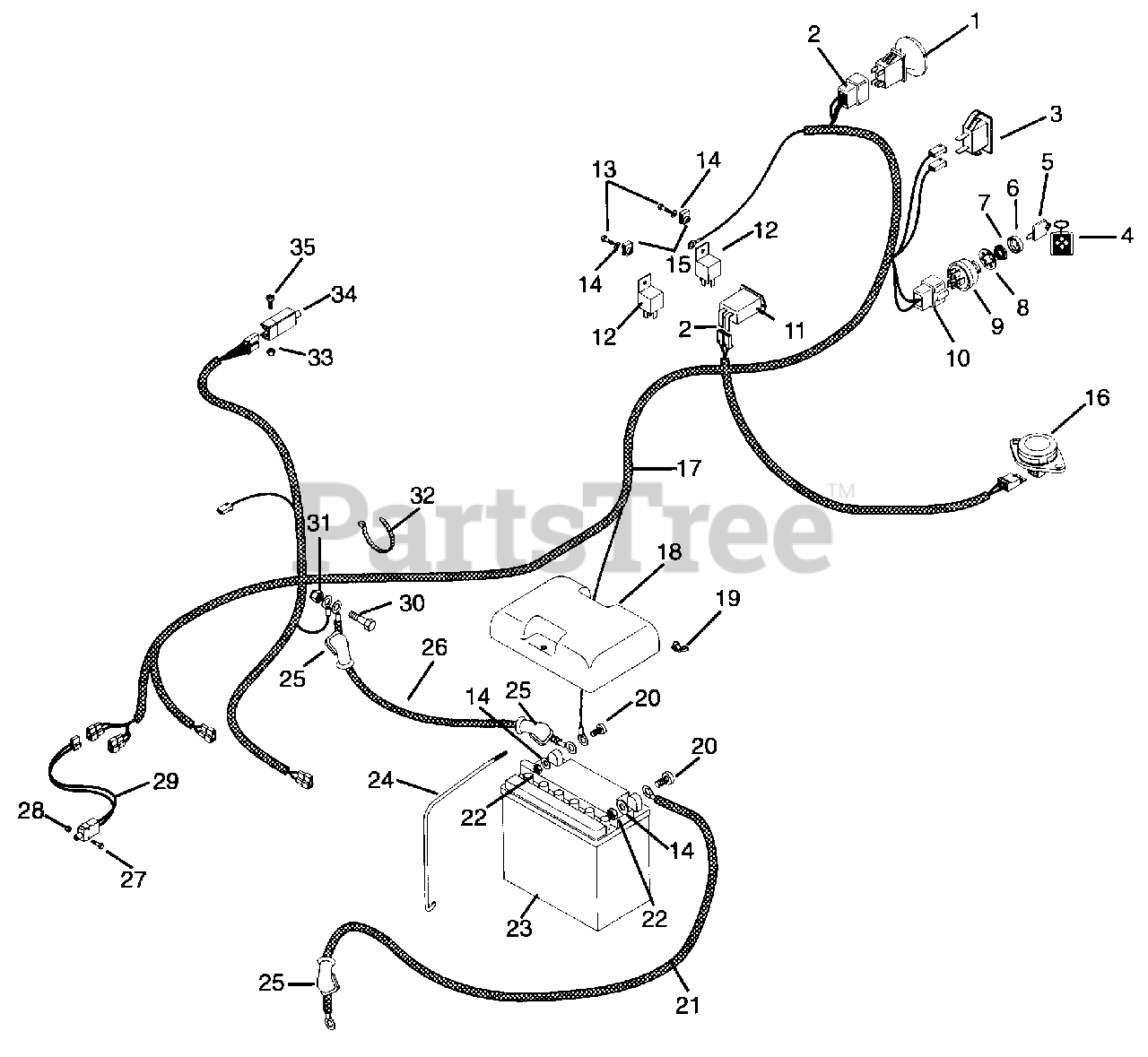

990013 (PM 300) - Gravely Pro-Master Zero-Turn Mower, 25hp Kohler (SN: 000101 & Above) ELECTRICAL SYSTEM Parts Diagram

Pro-Master Zero-Turn Mower, 25hp Kohler

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Gravely 00522100

Switch, Clutch with Retainer Ring
(Superseded to 01545600)

$25.99

$

In Stock, Qty 20+

0

2

Gravely 038059

Terminal
(Superseded to 08540001)

$3.99

$

In Stock, Qty 5

0

3

Gravely 050673

Light, Indicator
(Superseded to 05128700)

$6.99

$

Usually ships in 4-12 days

0

4

Gravely 045842

Key Chain
(Superseded to 03490000)

$

$

Not available

5

Gravely 045488

Ignition Switch Key
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

6

Gravely 045490

Cap-Ignition Switch
(Superseded to 07517700)

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 045489

Nut-Panel .562-24
(Superseded to 06517400)

$20.99

$

In Stock, only 1 left!

0

8

Gravely 019667

Washer-Lock-Internal .563 x .040
(Superseded to 06310900)

$2.49

$

In Stock, only 2 left!

0

9

Gravely 03602300

Key Switch

$26.99

$

Usually ships in 4-12 days

0

10

Gravely 038058

Connector
(Superseded to 20645101)

$7.99

$

In Stock, Qty 7

0

11

Gravely 038256

Hour Meter
(Superseded to 09497400)

$23.99

$

In Stock, only 1 left!

0

12

Gravely 040216

Relay
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

13

Gravely 06111400

Screw-Machine .31-18 x.625 Left Hand

$

$

Not available

14

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 011676

Nut-Speed .25-20
(Superseded to 07016800)

$

$

Not available

16

Gravely 03654200

Seat Switch

$

$

Not available

17

Gravely 09065800

Wire Harness

$

$

Not available

18

Gravely 044348

Cover, Battery
(Superseded to 04912900)

$11.99

$

Usually ships in 4-12 days

0

19

Gravely 06537500

Nut-Locking-Wing .250-20
(Superseded to 06500805)

$4.99

$

In Stock, Qty 19

0

20

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 047649

Cable, Starter
(Superseded to 03492500)

$21.99

$

Usually ships in 4-12 days

0

22

Gravely 06533200

Nut-Hex .25-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

23

Gravely 051188

Battery
(Superseded to 09206000)

$

$

Not available

24

Gravely 051246

Rod, Battery
(Superseded to 09030400)

$

$

Not available

25

Gravely 03384700

Boot, Insulator

$

$

Not available

26

Gravely 042130

Cable, Negative Battery
(Superseded to 03288100)

$17.99

$

In Stock, only 2 left!

0

27

Gravely 06117900

Screw-Machine 6-32 x .75

$3.49

$

Usually ships in 4-12 days

0

28

Gravely 06538900

Nut-Locking-Nylon 6-32 W/Insrt

$

$

Not available

29

Gravely 050480

Switch
(Superseded to 08996200)

$52.99

$

Usually ships in 4-12 days

0

30

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 041634

Tie, Wrap, Black
(Superseded to 07519900)

$3.49

$

Usually ships in 4-12 days

0

33

Gravely 06536000

Nut-Locking Nylon 10-24 W/Insrt
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

34

Gravely 046219

Switch, Interlock
(Superseded to 08828100)

$20.99

$

In Stock, only 1 left!

0

35

0611700

Screw-Machine .38 x 7.0

$

$

Not available
