990013 (PM 300) - Gravely Pro-Master Zero-Turn Mower, 25hp Kohler (SN: 000101 & Above) DIRECTION CONTROL Parts Diagram

Pro-Master Zero-Turn Mower, 25hp Kohler

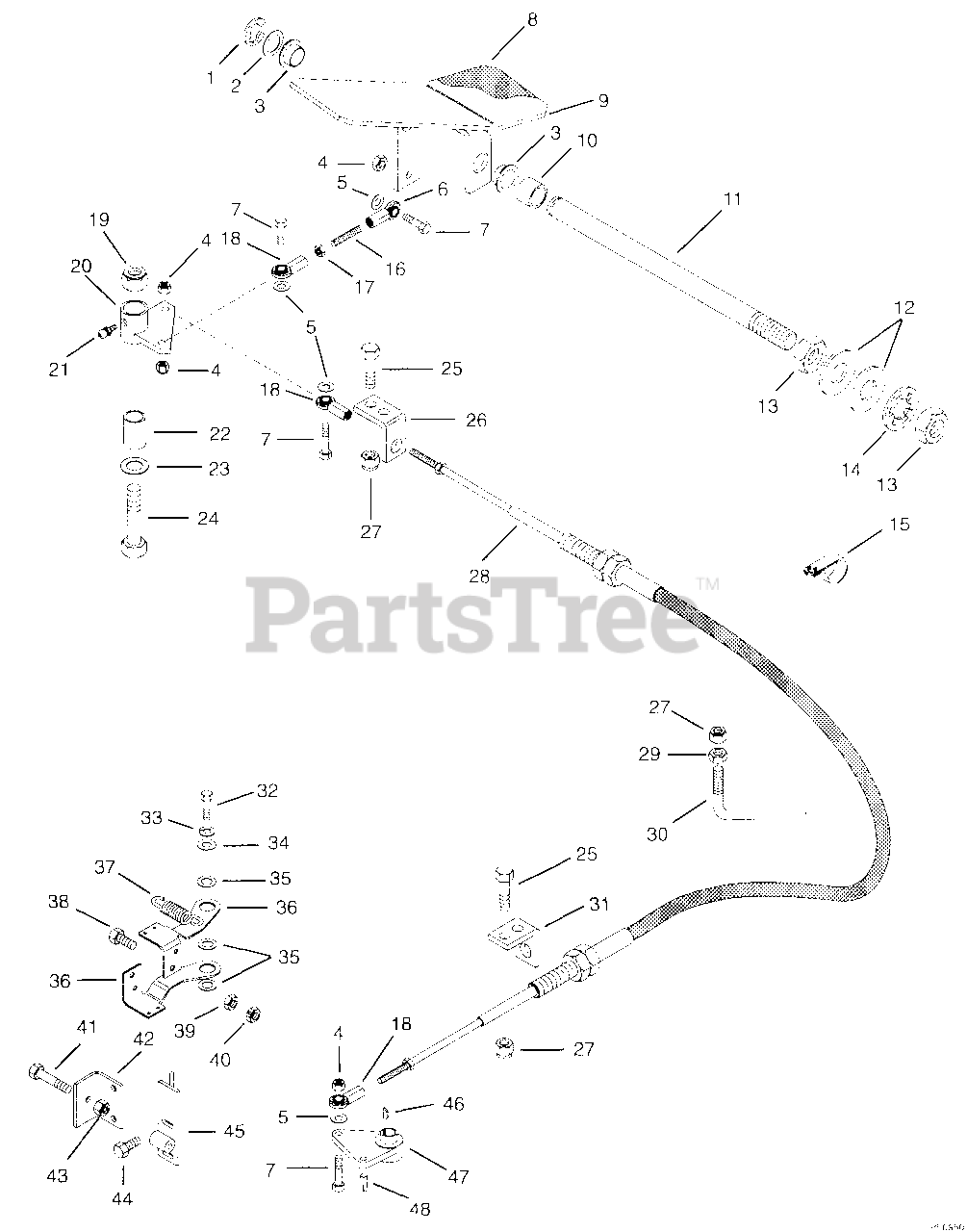

DIRECTION CONTROL Parts Diagram

  • Title

1

Gravely 011270

Ring-Retaining-External .574 x .050
(Superseded to 05707400)

$2.49

$

Usually ships in 4-12 days

0

2

Gravely 011223

Bearing-Needle-Thrust .752 x 1.24 x .031
(Superseded to 06413400)

$3.49

$

In Stock, only 2 left!

0

3

Gravely 010174

Bushing-Flange .762 x 1.0 x .580 x 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

4

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 047065

Rod End Left Hand
(Superseded to 08980300)

$

$

Not available

7

Gravely 05957400

Bolt-Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

8

Gravely 046185

Cover, Pedal
(Superseded to 08973100)

$5.99

$

Usually ships in 4-12 days

0

9

Gravely 051300

Weldment, Pedal
(Superseded to 09021700)

$

$

Not available

10

Gravely 044600

Bushing, Sleeve .782 x 1.00 x .710
(Superseded to 08905600)

$11.99

$

Usually ships in 4-12 days

0

11

Gravely 045189

Shaft, Pedal
(Superseded to 08965900)

$

$

Not available

12

Gravely 06439000

Washer-Flat-Steel .812 x 1.50 x .139
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06539900

Nut-Jam .75-16

$3.49

$

In Stock, only 2 left!

0

14

Gravely 06310800

Washer-Lock Internal .750

$1.49

$

Usually ships in 4-12 days

0

15

Gravely 050394

Clamp, Cushioned Steel
(Superseded to 06908200)

$5.99

$

Usually ships in 4-12 days

0

16

Gravely 047066

Rod
(Superseded to 09030000)

$

$

Not available

17

Gravely 06540000

Nut-Jam .25-28

$

$

Not available

18

Gravely 045808

Rod End, Female 1/4-28
(Superseded to 08971800)

$19.99

$

Usually ships in 4-12 days

0

19

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

20

Gravely 046168

Weldment, Lever
(Superseded to 08974400)

$17.99

$

Usually ships in 4-12 days

0

21

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

22

Gravely 045245

Spacer, .562 x .855 x 1.56
(Superseded to 08986400)

$

$

Not available

23

Gravely 06441000

Washer-Flat-Steel .50 x 1.25 x .083
(Superseded to 06401202)

$2.99

$

In Stock, Qty 6

0

24

Gravely 05966600

Bolt-Hex .50-13 x 2.50 Grade 5
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

25

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 044983

Bracket, Cable
(Superseded to 08960200)

$

$

Not available

27

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 045980

Cable, Forward-Reverse
(Superseded to 09086800)

$

$

Not available

29

Gravely 06535900

Nut-Jam .375-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 045068

Rod, Cable Guide
(Superseded to 09029300)

$5.99

$

Usually ships in 4-12 days

0

31

Gravely 045039

Bracket, Cable
(Superseded to 08961900)

$

$

Not available

32

Gravely 05929500

Bolt-Hex .25-20 x 1.50 Grade 5
(Superseded to 05967000)

$3.49

$

Usually ships in 4-12 days

0

33

Gravely 06308400

Washer-Locking .25 x .062
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

34

Gravely 06440600

Washer-Flat-Steel .281 x 1.250 x .048
(Superseded to 06403700)

$

$

Not available

35

Gravely 045248

Washer-Flat-Steel .760 x 1.125 x .030
(Superseded to 06431600)

$3.99

$

Usually ships in 4-12 days

0

36

Gravely 049238

Lever, Neutral
(Superseded to 08987400)

$102.99

$

Usually ships in 4-12 days

0

37

Gravely 015353

Spring-Tension .075 x .75 x 2.25
(Superseded to 08327600)

$17.99

$

In Stock, only 1 left!

0

38

Gravely 181595

Bolt-Hex .31-24 x .75 Grade 5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 124920

Nut-Jam .312-24
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

40

Gravely 414072

Nut-Locking-Center .312-24
(Superseded to 06537000)

$

$

Not available

41

Gravely 047479

Bolt-Hex .31-18 x 1.25
(Superseded to 05970900)

$2.99

$

Usually ships in 4-12 days

0

42

Gravely 050343

Bracket
(Superseded to 08994900)

$

$

Not available

43

Gravely 419455

Nut-Locking-Nylon .312-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

44

Gravely 07415700

Screw-Tapping .31-18 x .88 HWH

$3.49

$

Usually ships in 4-12 days

0

45

Gravely 049252

Weldment, Neutral Stop
(Superseded to 08987600)

$

$

Not available

46

Gravely 124543

Key, Woodruff .13 x .50
(Superseded to 06608300)

$2.49

$

In Stock, Qty 20+

0

47

Gravely 051939

Arm, Transmission Control
(Superseded to 09008400)

$

$

Not available

48

Gravely 045241

Pin-Groove .250 x .75
(Superseded to 05805300)

$1.99

$

Usually ships in 4-12 days

0
