990012 (PM 300) - Gravely Pro-Master Zero-Turn Mower, 20hp Kohler (SN: 000101 & Above) STEERING Parts Diagram

Pro-Master Zero-Turn Mower, 20hp Kohler

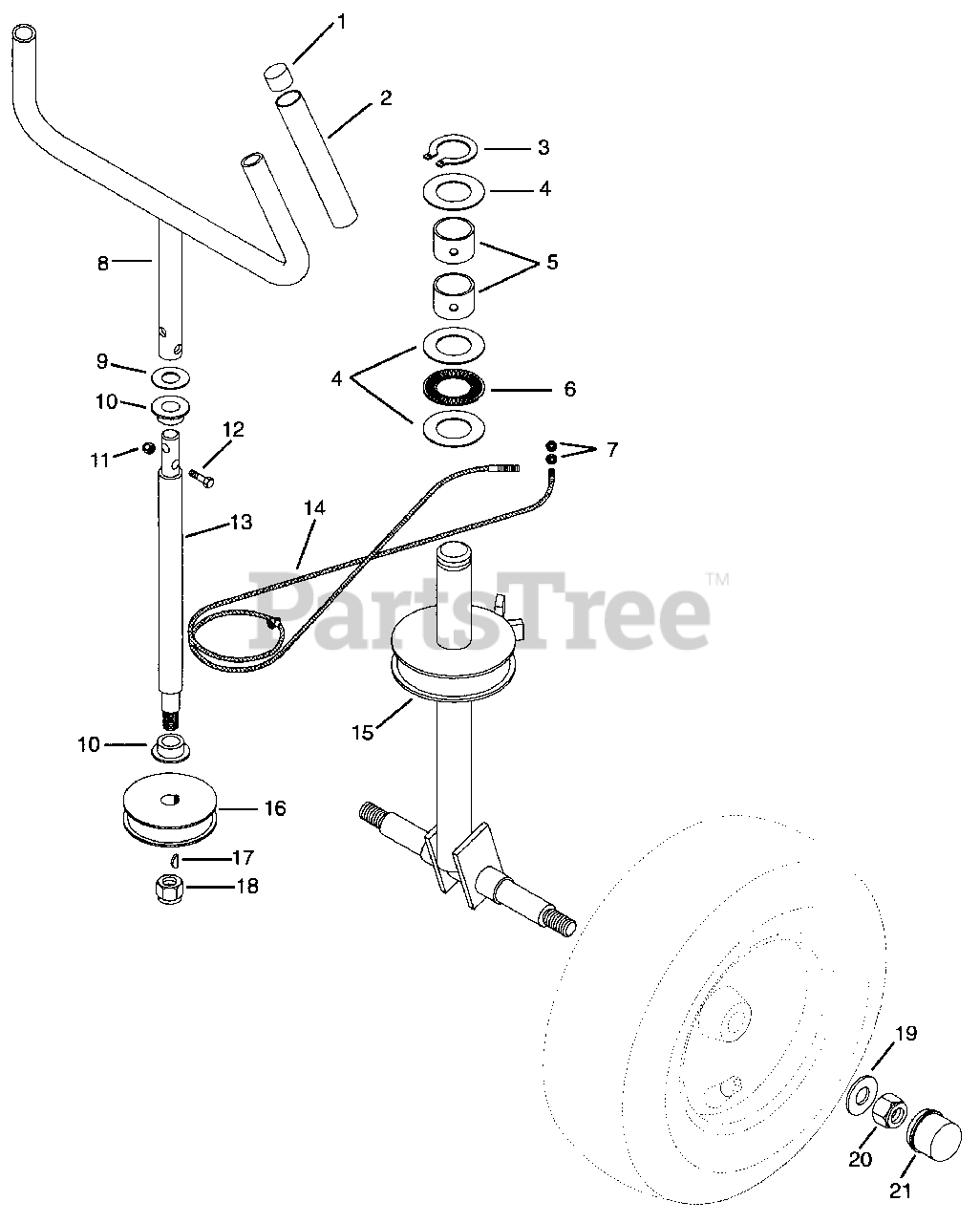

STEERING Parts Diagram

  • Title

1

Gravely 037973

Closure, Vinyl
(Superseded to 07524100)

$3.99

$

Usually ships in 4-12 days

0

2

Gravely 045550

Grip
(Superseded to 01570000)

$17.99

$

In Stock, only 2 left!

0

3

Gravely 046333

Ring-Retaining-External 1.5 x 1.38
(Superseded to 05715500)

$5.99

$

Usually ships in 4-12 days

0

4

Gravely 018954

Washer-Thrust 1.502 x 2.18 x .063
(Superseded to 06432200)

$13.99

$

In Stock, only 1 left!

0

5

Gravely 044954

Bearing 1.000 x 1.135 x 1.002
(Superseded to 05516500)

$41.99

$

Usually ships in 4-12 days

0

6

Gravely 035639

Bearing-Needle-Thrust 1.50 x 2.187 x .0781
(Superseded to 05424700)

$20.99

$

Usually ships in 4-12 days

0

7

Gravely 06536100

Nut-Jam .312-18
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 044805

Weldment, Handlebar
(Superseded to 08956200)

$

$

Not available

9

Gravely 014998

Bearing-Needle-Thrust .752 x 1.24 x .093
(Superseded to 06413300)

$5.99

$

In Stock, only 2 left!

0

10

Gravely 018355

Bushing-Flange 1.020 x 1.385 x .75 x 1.75
(Superseded to 05520100)

$11.99

$

In Stock, Qty 18

0

11

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 05947400

Bolt-Hex .25-20 x 1.38
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

13

Gravely 044878

Shaft
(Superseded to 08956900)

$

$

Not available

14

Gravely 047194

Cable, Steering
(Superseded to 01404400)

$

$

Not available

15

Gravely 047001

Weldment, Caster Wheel
(Superseded to 09093651)

$

$

Not available

16

Gravely 044875

Pulley, Cable
(Superseded to 08956700)

$77.99

$

Usually ships in 4-12 days

0

17

Gravely 120502

Key, Woodruff 3/16 x 7/8
(Superseded to 06608200)

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 06535300

Nut, Locking 5/8-11

$2.99

$

Usually ships in 4-12 days

0

19

Gravely 06439000

Washer-Flat .812 x 1.469 x .134
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06535400

Nut-Locking-Center .62-11

$5.99

$

Usually ships in 4-12 days

0

21

Gravely 09081100

Cap, Dust
(Superseded to 20655400)

$10.99

$

In Stock, Qty 20+

0
