990011 (PM 300) - Gravely Pro-Master Zero-Turn Mower, 25hp Kohler (SN: 000101 & Above) MAIN DRIVE Parts Diagram

Pro-Master Zero-Turn Mower, 25hp Kohler

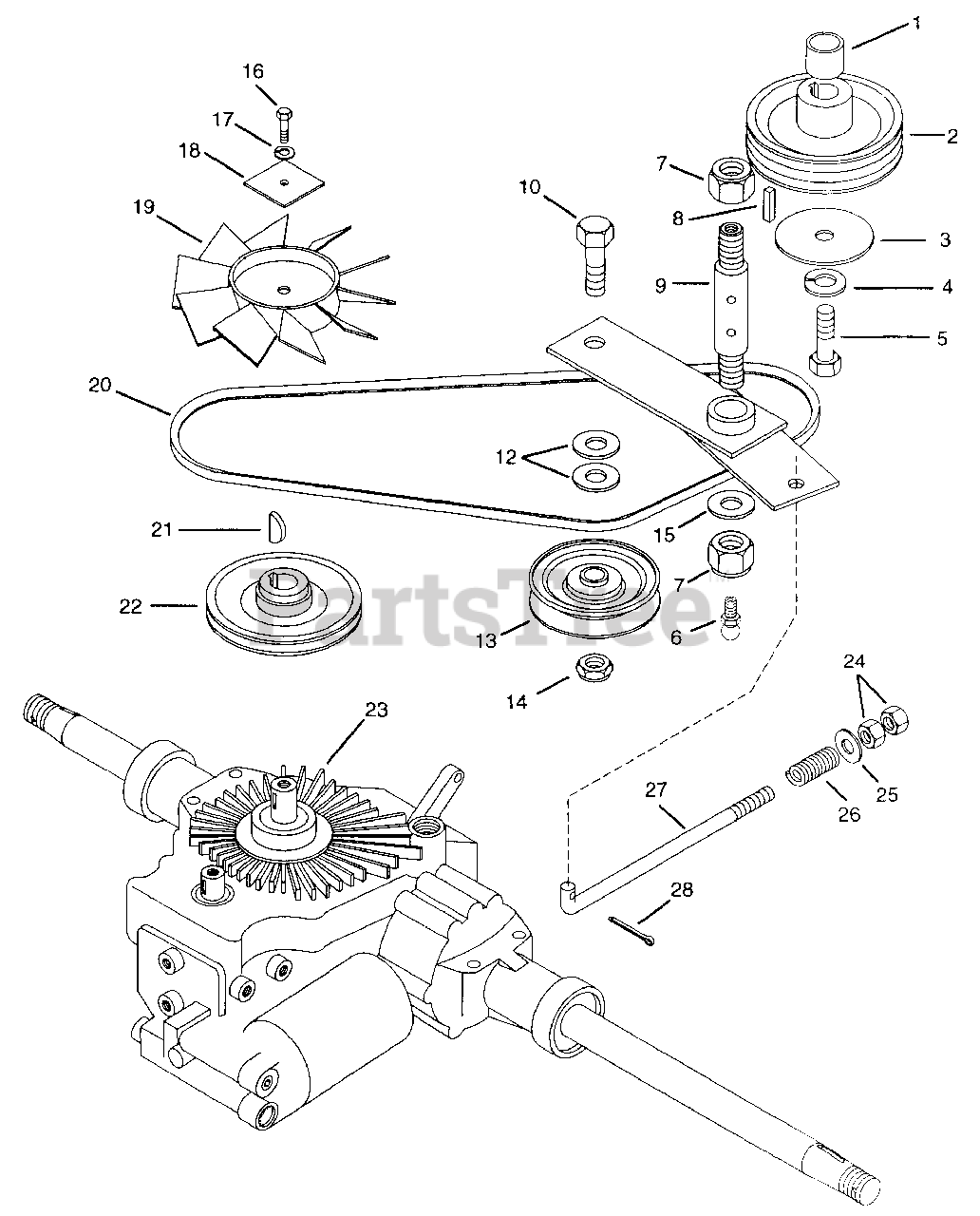

MAIN DRIVE Parts Diagram

  • Title

1

Gravely 049736

Bushing, Sleeve 1.00 x 1.25 x 1.25 (007)
(Superseded to 08983700)

Note: (007)

$

$

Not available

1

Gravely 051207

Bushing, Sleeve 1.13 x 1.38 x 1.25 (008,011)
(Superseded to 08984200)

Note: (008,011)

$

$

Not available

2

Gravely 049351

Sheave (007)
(Superseded to 08989000)

Note: (007)

$

$

Not available

2

Gravely 049737

Sheave (008)
(Superseded to 08992000)

Note: (008)

$

$

Not available

2

Gravely 09078300

Sheave (011)

Note: (011)

$

$

Not available

3

Gravely 044379

Washer-Special .469 x 2.000 x .250
(Superseded to 06401111)

$6.99

$

In Stock, only 3 left!

0

4

Gravely 120383

Washer-Lock .44
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

5

Gravely 181670

Bolt-Hex .44-20 x 1.50 Grade 5
(Superseded to 05902004)

$5.99

$

In Stock, Qty 5

0

6

Gravely 411010

Fitting, Lube 1/8
(Superseded to 07012500)

$3.99

$

In Stock, only 1 left!

0

7

Gravely 418692

Nut-Locking 5/8-11
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

8

Gravely 018345

Key-Square .248 x 1.25 x .248
(Superseded to 06606900)

$2.99

$

Usually ships in 4-12 days

0

9

Gravely 051886

Pin, Pivot
(Superseded to 09008100)

$77.99

$

In Stock, only 2 left!

0

10

Gravely 180178

Bolt-Hex .50-13 x 1.625
(Superseded to 05935900)

$

$

Not available

11

Gravely 049329

Weldment, Idler Arm
(Superseded to 08988400)

$165.99

$

Usually ships in 4-12 days

0

12

Gravely 120396

Washer-Flat-Steel .531 x 1.062 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 044518

Pulley-V 4.00 x .84
(Superseded to 07318000)

$45.99

$

Usually ships in 4-12 days

0

14

Gravely 020541

Nut-Locking .50-13
(Superseded to 06527200)

$

$

Not available

15

Gravely 421879

Washer-Flat-Steel .656 x 1.250 x .100
(Superseded to 06430300)

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 180024

Bolt-Hex .25-20 x 1.25 Grade 5
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

17

Gravely 120380

Washer-Lock .250
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 046284

Washer-Flat-Steel .265 x 1.75 Square x .119
(Superseded to 06425800)

$

$

Not available

19

Gravely 044380

Fan
(Superseded to 09024700)

$

$

Not available

20

Gravely 034944

V-Belt A-Section 18.05 x .495
(Superseded to 07220000)

$28.99

$

In Stock, only 1 left!

0

21

Gravely 431787

Key, Woodruff .19 x .63
(Superseded to 06609300)

$2.99

$

In Stock, Qty 11

0

22

Gravely 049738

Pulley, Drive
(Superseded to 08992100)

$

$

Not available

23

Gravely 09036700

Transaxle, Eaton #851-109

$

$

Not available

24

Gravely 120377

Nut-Hex .375-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 021506

Spring-Compression .072 x .561 x 2.50
(Superseded to 08329600)

$22.99

$

Usually ships in 4-12 days

0

27

Gravely 09037500

Rod, Idler

$258.99

$

Usually ships in 4-12 days

0

28

Gravely 121222

Pin-Cotter .09 x .75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0
