990011 (PM 300) - Gravely Pro-Master Zero-Turn Mower, 25hp Kohler (SN: 000101 & Above) FRONT AND REAR WHEELS Parts Diagram

Pro-Master Zero-Turn Mower, 25hp Kohler

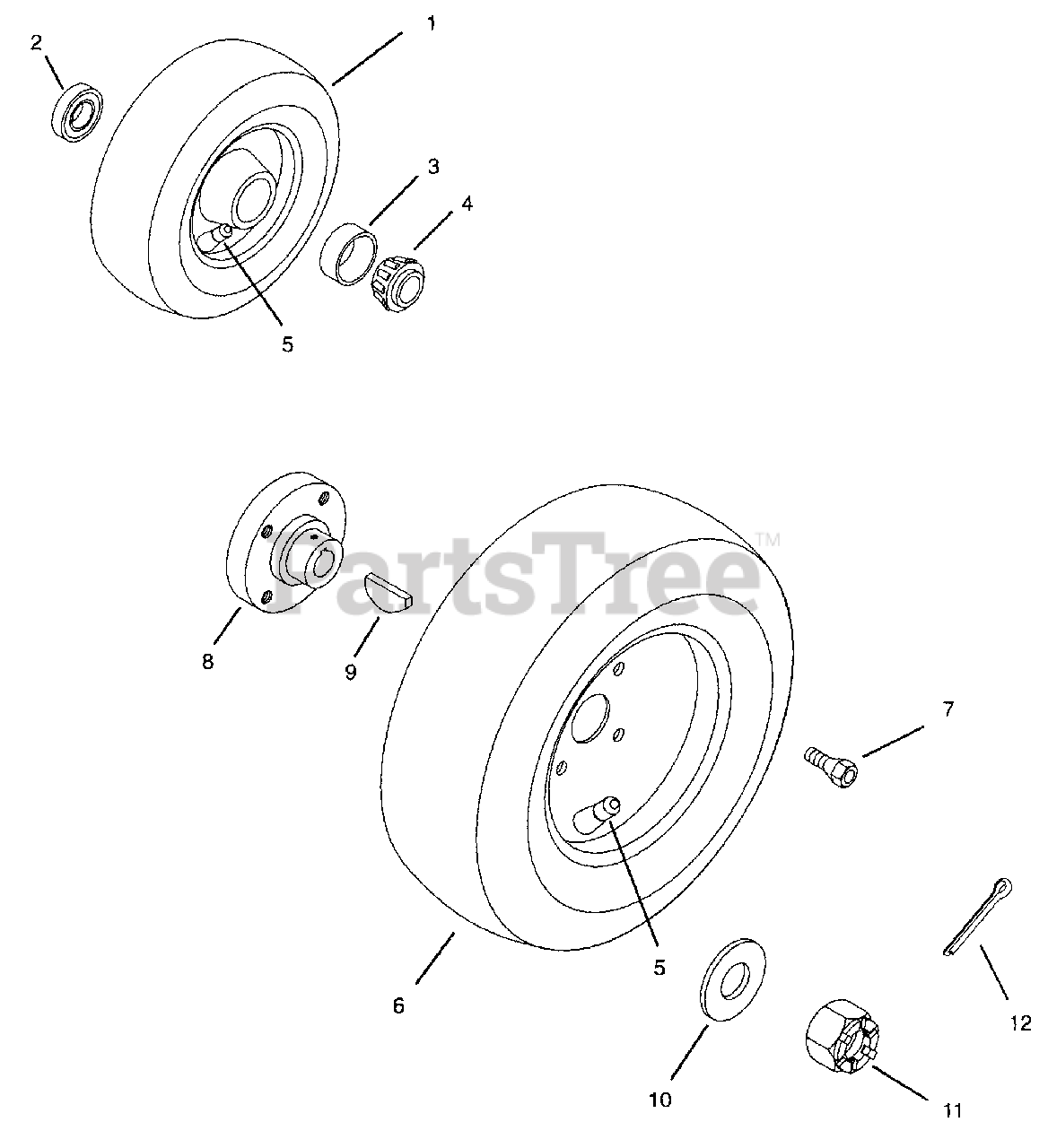

FRONT AND REAR WHEELS Parts Diagram

  • Title
1

Gravely 053130

Tire/Wheel Assembly 4.80-8
(Superseded to 07132200)

$

$

Not available

2

Gravely 038920

Seal
(Superseded to 20655500)

$11.99

$

Usually ships in 4-12 days

0

3

Gravely 038109

Bearing-Cup 1.980 x 4.20
(Superseded to 05407000)

$17.99

$

In Stock, Qty 20+

0

4

Gravely 038110

Bearing-Cone 1.0 x .58
(Superseded to 05406900)

$18.99

$

In Stock, Qty 20+

0

5

Gravely 011191

Valve Stem Assembly
(Superseded to 07520000)

$2.49

$

In Stock, Qty 5

0

6

Gravely 046987

Tire/Wheel Assembly 8.50-8 x 18
(Superseded to 07130200)

$170.99

$

Usually ships in 4-12 days

0

7

Gravely 034597

Bolt-Hex .50-20 x .75 x 1.62
(Superseded to 07000143)

$3.49

$

In Stock, Qty 9

0

8

Gravely 09036600

Hub
(Superseded to 59001800)

$

$

Not available

9

Gravely 06600200

Key-Woodruff .25 x 1.0 x 7.00

$3.99

$

In Stock, only 2 left!

0

10

Gravely 423315

Washer-Flat-Steel .813 x 1.370 x .100
(Superseded to 06401140)

Note: 11

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06528300

Nut-Hex-Slotted .75-20

$

$

Not available

12

Gravely 120123

Pin-Cotter .12 x 1.25
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0
