990010 (PM 360) - Gravely Pro-Master Zero-Turn Mower, 22hp Yanmar (SN: 000101 & Above) REAR AXLE Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Yanmar

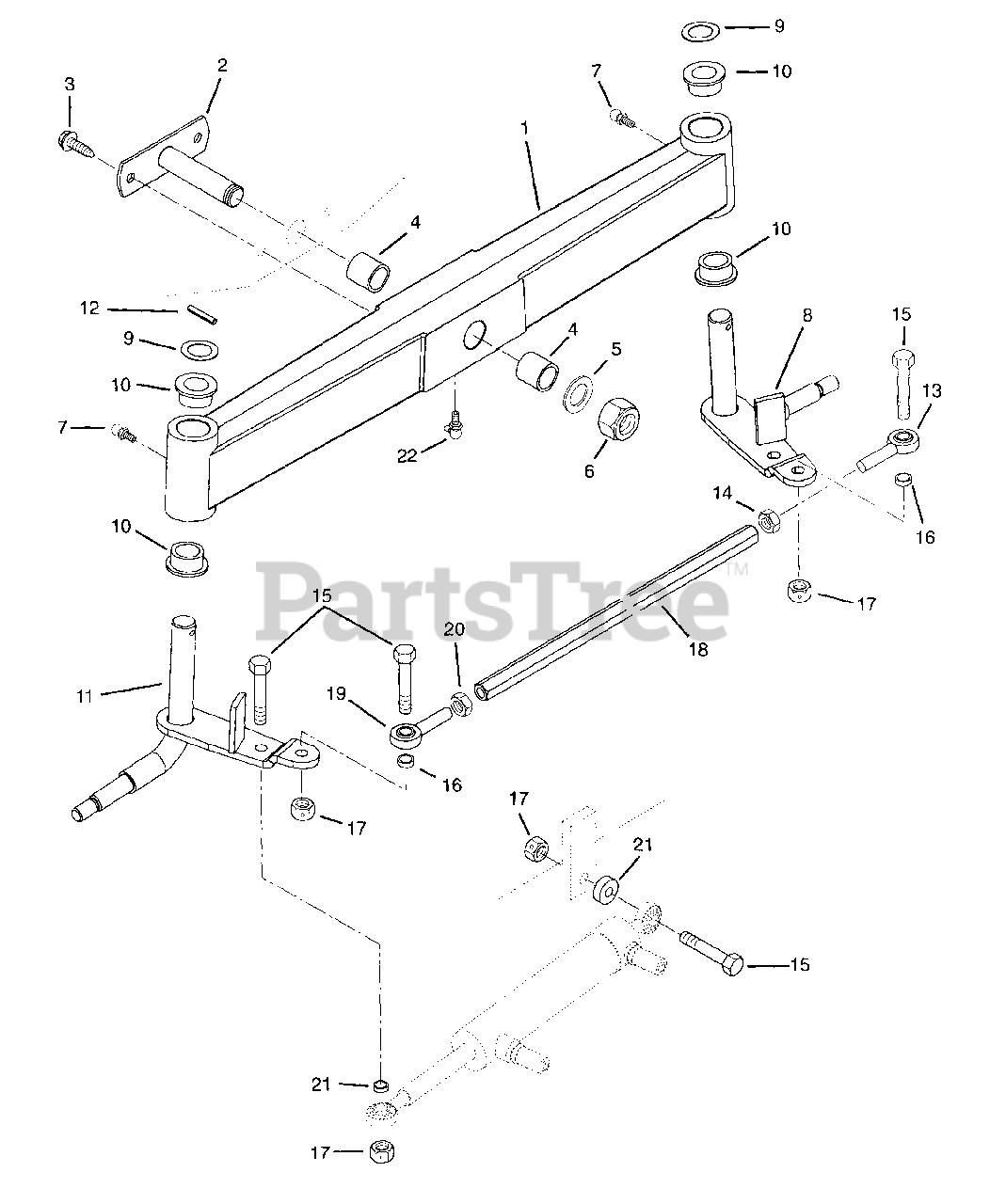

REAR AXLE Parts Diagram

  • Title

1

Gravely 09067700

Steering Axle

$

$

Not available

2

Gravely 09076700

Weldment, Axle Pin

$

$

Not available

3

Gravely 07402200

Screw-Tapping .375-16 x .75 Hex Washer Head
(Superseded to 07415400)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 05521400

Bearing-Sleeve 1.00 x 1.25 x 1.25

$

$

Not available

5

Gravely 06436300

Washer-Flat-Steel 1.010 x 1.505 x .062
(Superseded to 06401132)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06538400

Nut-Locking 1.0-14 Washer Insert
(Superseded to 00181818)

$

$

Not available

7

Gravely 07012600

Fitting-Lube .25-28 x .256
(Superseded to 07001806)

$

$

Not available

8

Gravely 09082700

Weldment, Kingpin (LH)

Note: (LH)

$

$

Not available

9

Gravely 06435300

Washer-Hardened-Thrust 1.00 x 1.55 x .03

$4.99

$

Usually ships in 4-12 days

0

10

Gravely 05520100

Bearing-Flange .020 x 1.385 x .75 x 1.75 Nylon

$11.99

$

In Stock, Qty 12

0

11

Gravely 09082800

Weldment, Kingpin (RH)

Note: (RH)

$

$

Not available

12

Gravely 05800400

Pin-Roll .25 x 1.50

$

$

Not available

13

Gravely 08959600

Rod End, 1/2 RH

$38.99

$

Usually ships in 4-12 days

0

14

Gravely 06539500

Nut-Hex .50-20 Grade 2

$2.49

$

Usually ships in 4-12 days

0

15

Gravely 05959700

Bolt-Hex .50-13 x 2.00
(Superseded to 05901929)

$

$

Not available

16

Gravely 08974800

Spacer .520 x .625 x .125

$21.99

$

In Stock, only 1 left!

0

17

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

18

Gravely 09073400

Tie Rod

$

$

Not available

19

Gravely 09002500

Rod End, 1/2 LH

$

$

Not available

20

Gravely 06538300

Nut-Jam .50-20 Left Hand Thread Grade 2

$

$

Not available

21

Gravely 09062100

Spacer .56 x 1.00 x .420

$5.99

$

Usually ships in 4-12 days

0

22

Gravely 07012800

Lube Fitting 90°

$4.99

$

In Stock, Qty 5

0
