990010 (PM 360) - Gravely Pro-Master Zero-Turn Mower, 22hp Yanmar (SN: 000101 & Above) PTO IDLER AND SHAFT Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Yanmar

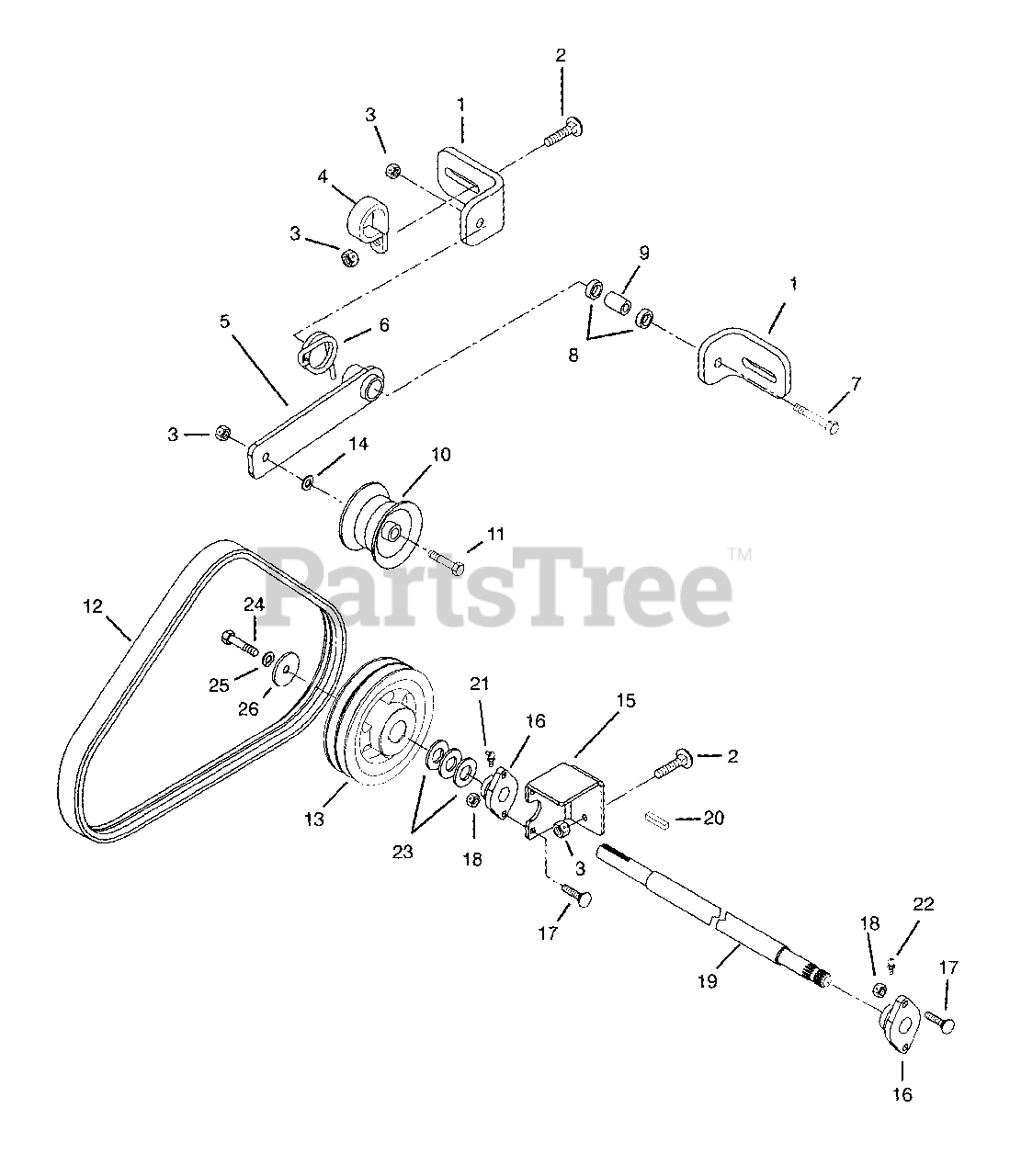

PTO IDLER AND SHAFT Parts Diagram

  • Title

1

Gravely 09071000

Bracket, Idler

$9.49

$

Usually ships in 4-12 days

0

2

Gravely 06212000

Bolt-Round Head Square Neck .38-16 x 1.00
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06941400

C-Clamp - .50 ID

$

$

Not available

5

Gravely 09071100

Weldment, Idler Arm

$

$

Not available

6

Gravely 08334200

Spring-Torsion

$60.99

$

Usually ships in 4-12 days

0

7

Gravely 05958400

Bolt-Hex .38-16 x 2.50 Grade 5
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

8

Gravely 00520100

Bushing-Bearing .75 ID x .88 x .50

$

$

Not available

9

Gravely 00520000

Spacer .38 x .75 x 1.5

$21.99

$

Usually ships in 4-12 days

0

10

Gravely 07324500

Flat Idler 2.75 x 1.25

$

$

Not available

11

Gravely 05962900

Bolt-Hex .381-6 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

12

Gravely 07233800

Belt, PTO

Note: (Model 010)

$

$

Not available

12

Gravely 07235300

Belt, PTO

Note: (Model 016)

$76.99

$

In Stock, only 1 left!

0

13

Gravely 09084500

PTO Pulley

$237.99

$

Usually ships in 4-12 days

0

14

Gravely 06436800

Washer-Flat-Steel .390 x .88 x .18

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 09084600

Weldment, Support Bracket

$

$

Not available

16

Gravely 00553600

Bearing, Flanged with Set Screw

$94.99

$

Usually ships in 4-12 days

0

17

Gravely 06219200

Bolt-Round Head Square Neck .31-18 x 1.25 Grade 5
(Superseded to 06200407)

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 09084400

Weldment, PTO Shaft

Note: (Model 010)

$

$

Not available

19

Gravely 09087500

Weldment, PTO Shaft

Note: (Model 016)

$

$

Not available

20

Gravely 06603400

Key-Square .25 x 1.25 x .25

$3.99

$

In Stock, Qty 11

0

21

Gravely 07012700

45° Lube Fitting

$3.99

$

Usually ships in 4-12 days

0

22

Gravely 07012600

Fitting-Lube .25-28 x .256
(Superseded to 07001806)

$

$

Not available

23

Gravely 06435300

Washer-Hardened-Thrust 1.00 x 1.55 x .03

Note: (6 maximum)

$4.99

$

Usually ships in 4-12 days

0

24

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06309300

Washer-Locking .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

26

Gravely 06443600

Washer-Flat-Steel .469 x 2.00 x .25
(Superseded to 06401111)

$6.99

$

In Stock, only 2 left!

0
