990010 (PM 360) - Gravely Pro-Master Zero-Turn Mower, 22hp Yanmar (SN: 000101 & Above) POWER STEERING Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Yanmar

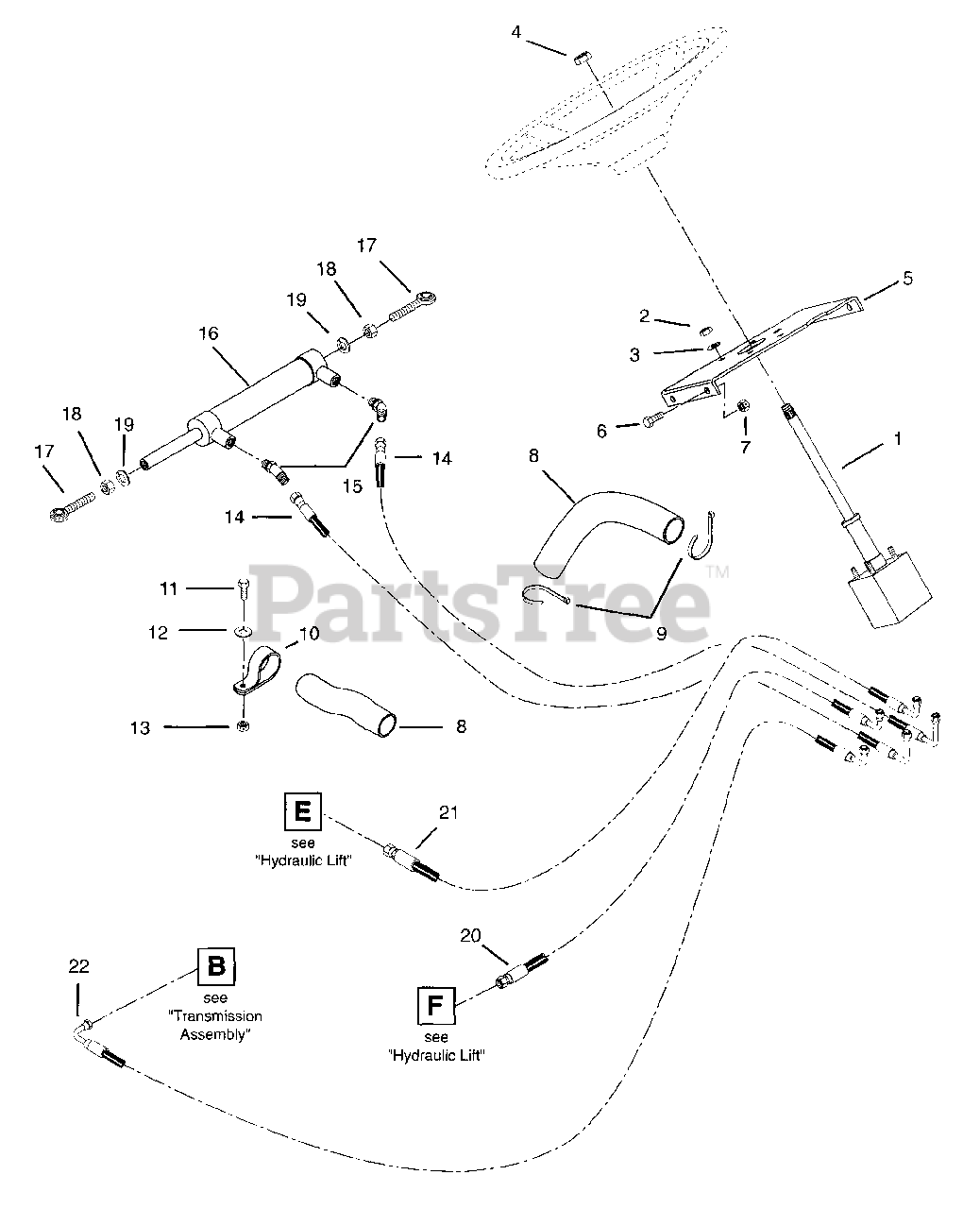

POWER STEERING Parts Diagram

  • Title
1

Gravely 09051600

Power Steering Unit
(Superseded to 09093200)

$

$

Not available

1

Gravely 58900600

Kit - Power Steering Unit

$

$

Not available

2

Gravely 06536700

Nut-Jam .31-24
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

3

Gravely 06308600

Washer-Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06535600

Nut-Hex .62-11

$2.99

$

In Stock, only 3 left!

0

5

Gravely 08977100

Bracket-Steering Pump

$

$

Not available

6

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 09011400

Sleeve 12"

$

$

Not available

9

Gravely 07519900

Tie Wrap, Black

$3.49

$

Usually ships in 4-12 days

0

10

Gravely 06921300

Clamp, Nylon
(Superseded to 06939900)

$

$

Not available

11

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 09061600

Hydraulic Hose Assembly

$

$

Not available

15

$21.99

$

Usually ships in 4-12 days

0

16

Gravely 08952900

Cylinder, Steering
(Superseded to 04935800)

$559.99

$

In Stock, only 1 left!

0

17

Gravely 08959600

Rod End, 1/2 RH

$38.99

$

Usually ships in 4-12 days

0

18

Gravely 06539500

Nut-Hex .50-20 Grade 2

$2.49

$

Usually ships in 4-12 days

0

19

Gravely 06307300

Washer-Locking .50 x .125
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

20

Gravely 09071600

Assembly, Hydraulic Hose

$

$

Not available

21

Gravely 09072400

Assembly, Hydraulic Hose

$

$

Not available

22

Gravely 09071700

Assembly, Hydraulic Hose

$

$

Not available
