990010 (PM 360) - Gravely Pro-Master Zero-Turn Mower, 22hp Yanmar (SN: 000101 & Above) FUEL SYSTEM Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Yanmar

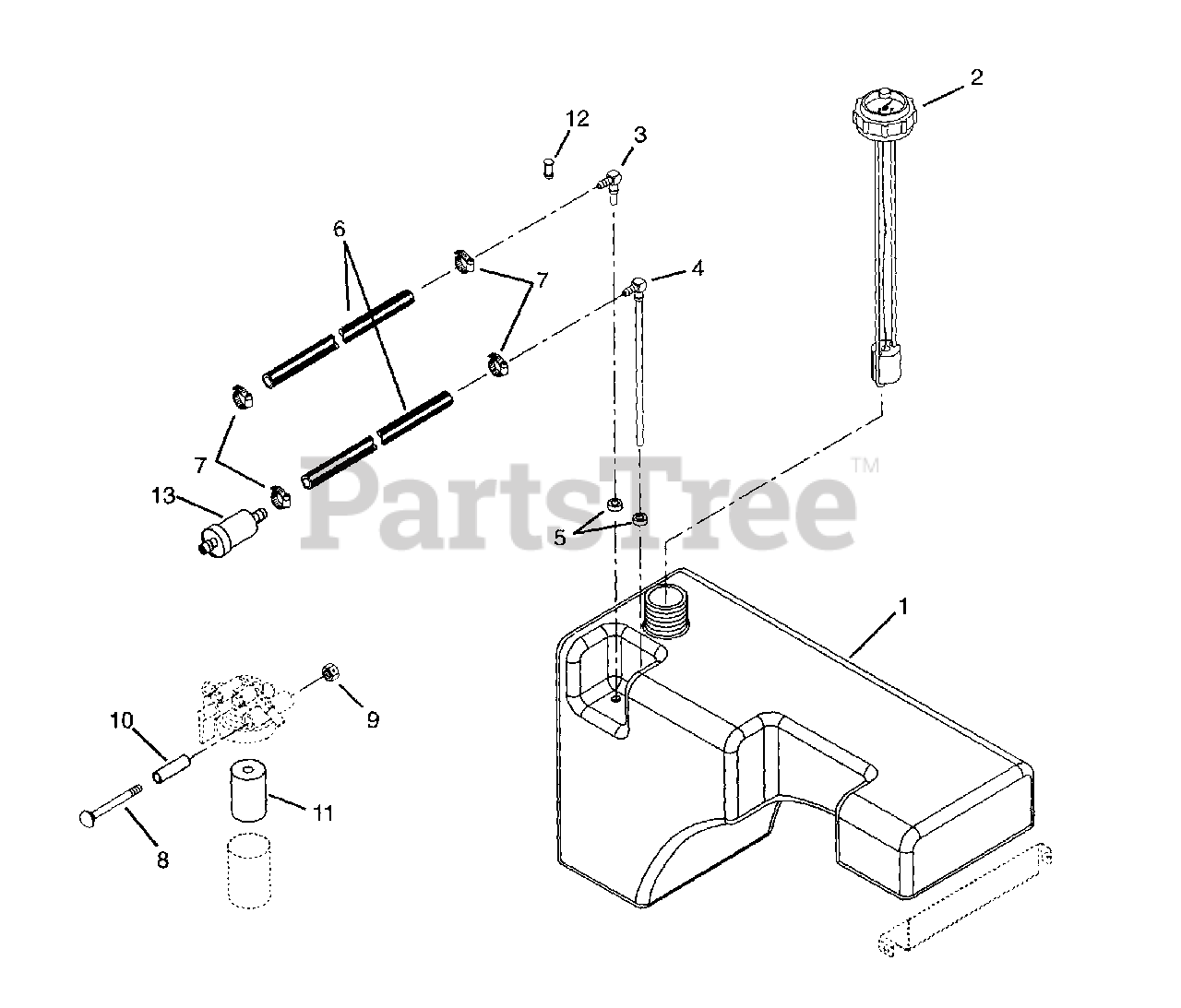

FUEL SYSTEM Parts Diagram

  • Title

1

Gravely 09051700

Tank, Fuel

$103.99

$

Usually ships in 4-12 days

0

2

Gravely 08983200

Gauge, Fuel

$47.99

$

Usually ships in 4-12 days

0

3

Gravely 07023300

Fitting-Tank 1.37 x .406

Note: (Model 010)

$

$

Not available

4

Gravely 09112300

Fitting, Tank
(Superseded to 03875300)

$14.99

$

In Stock, only 4 left!

0

5

Gravely 07511400

Bushing

$3.49

$

In Stock, Qty 20+

0

6

Gravely 00924300

Gas Line
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06924300

Hose Clamp

$6.99

$

Usually ships in 4-12 days

0

8

Gravely 06208700

Bolt-Round Head Square Neck .31-18 x 3.25
(Superseded to 06221300)

Note: (Model 010)

$5.99

$

Usually ships in 4-12 days

0

9

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

Note: (Model 010)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05525700

Bushing-Sleeve .407 x .625 x .750

Note: (Model 010)

$7.49

$

In Stock, only 1 left!

0

11

Gravely 21034400

Element, Fuel

Note: (Model 010)

$

$

Not available

12

Gravely 07044500

Plug, Fuel Tank Bushing

Note: (Model 016)

$

$

Not available

13

Gravely 08811700

Filter, Fuel

Note: (Model 016)

$10.99

$

Usually ships in 4-12 days

0
