990010 (PM 360) - Gravely Pro-Master Zero-Turn Mower, 22hp Yanmar (SN: 000101 & Above) DIRECTION CONTROL Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Yanmar

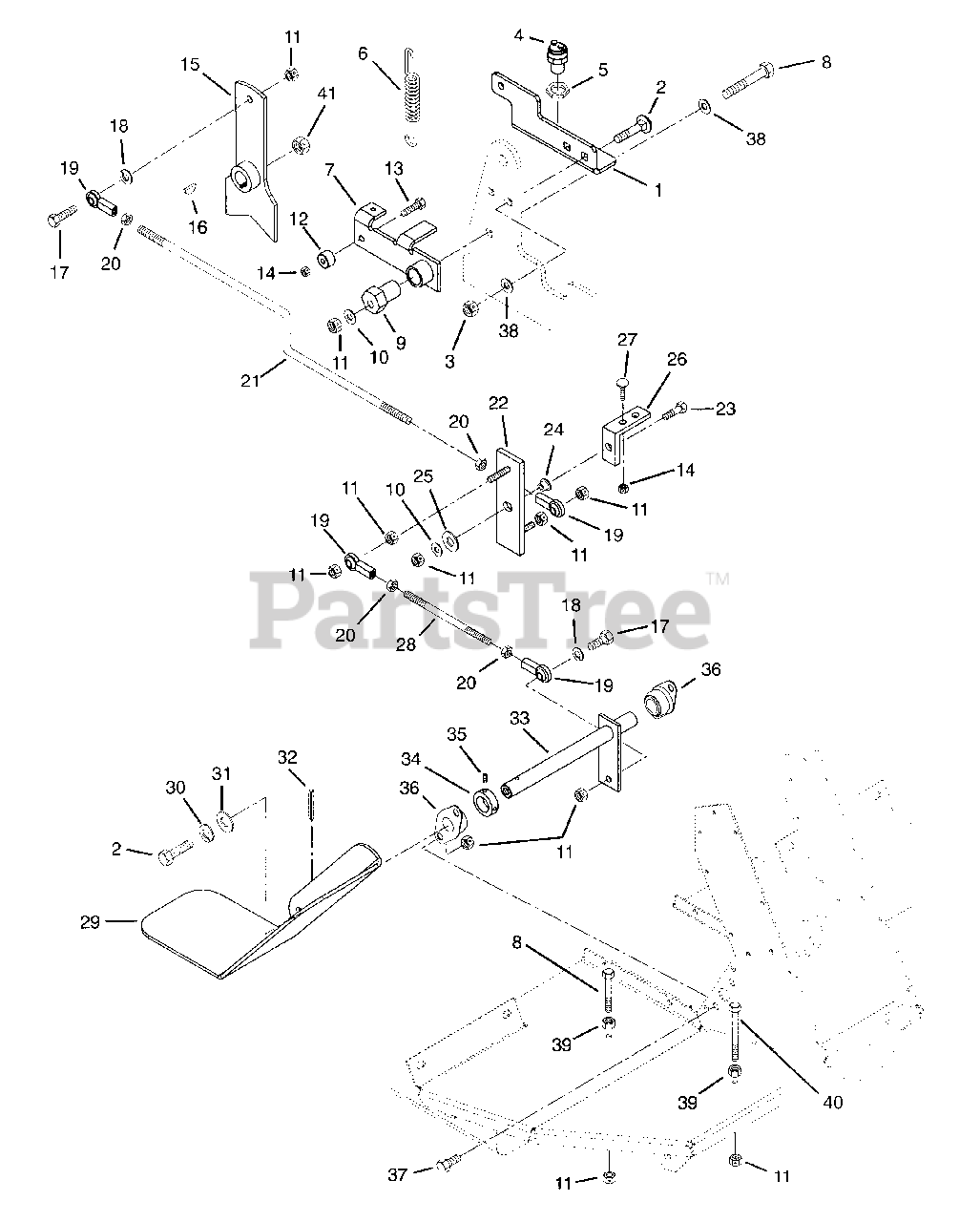

DIRECTION CONTROL Parts Diagram

  • Title

1

Gravely 09080000

Bracket

$

$

Not available

2

Gravely 06215700

Bolt-Round Head Square Neck .31-18 x .75
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

3

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 01526100

Switch, Neutral

$55.99

$

Usually ships in 4-12 days

0

5

Gravely 07015100

Nut-Stamped .56-18

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 08333900

Spring-Extension

$

$

Not available

7

Gravely 09079900

Weldment, Detent Arm

$17.99

$

Usually ships in 4-12 days

0

8

Gravely 05963700

Bolt-Hex .31-18 x 2.25
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 03039700

Eccentric

$

$

Not available

10

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 05425200

Roller-Clutch Cam .250 x .750 x .5625

$

$

Not available

13

Gravely 05947700

Bolt-Hex .25-20 x 1.00 Grade 5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

14

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 09071200

Weldment, Shift Arm

$

$

Not available

16

Gravely 06601500

Key-Woodruff .125 x .625 x .250

$2.49

$

In Stock, only 1 left!

0

17

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06308600

Washer-Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 08960700

Rod End, 5/16 RH Female
(Superseded to 03787100)

$12.99

$

In Stock, only 2 left!

0

20

Gravely 06536700

Nut-Jam .31-24
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

21

Gravely 09059400

Rod, Direction Control Rear

$

$

Not available

22

Gravely 09088800

Weldment, Reverse Pivot Bracket

Note: (Model 016)

$17.99

$

Usually ships in 4-12 days

0

22

Gravely 09059000

Weldment, Reverse Pivot Bracket

Note: (Model 010)

$

$

Not available

23

Gravely 05947500

Bolt-Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, Qty 9

0

24

Gravely 05514400

Bushing-Flange .344 x .468 x .485 x .750

$19.99

$

Usually ships in 4-12 days

0

25

Gravely 06410400

Washer-Flat-Steel .520 x .810 x .033
(Superseded to 06439600)

$2.49

$

Usually ships in 4-12 days

0

26

Gravely 09059300

Bracket, Reverse Pivot Mount

$

$

Not available

27

Gravely 06219900

Bolt-Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$0.99

$

In Stock, Qty 13

0

28

Gravely 09060700

Rod, Direction Control Short

$

$

Not available

29

Gravely 09070000

Weldment, Foot Control Lever

$

$

Not available

30

Gravely 06308800

Washer-Locking .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 05800300

Pin-Roll .188 x 1.25

$0.99

$

In Stock, Qty 20+

0

33

Gravely 09070100

Weldment, Control

$

$

Not available

34

Gravely 05424500

Bearing-Flange Locking Collar .75 x 1.85

$

$

Not available

35

Gravely 06000800

Screw-Set .25-20 x .38 Socket Head

$

$

Not available

36

Gravely 05402500

Bearing-Flange .751 x 2 Holes x .81

$23.99

$

Usually ships in 4-12 days

0

37

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

38

Gravely 06437500

Washer-Flat-Steel .328 x 1.0 x .094
(Superseded to 06401027)

$3.99

$

In Stock, only 3 left!

0

39

Gravely 06529200

Nut-Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

40

Gravely 05948000

Bolt-Hex .31-18 x 3.50 Grade 5

$

$

Not available

41

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0
