990010 (PM 360) - Gravely Pro-Master Zero-Turn Mower, 22hp Yanmar (SN: 000101 & Above) BATTERY AND ELECTRICAL BRACKET Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Yanmar

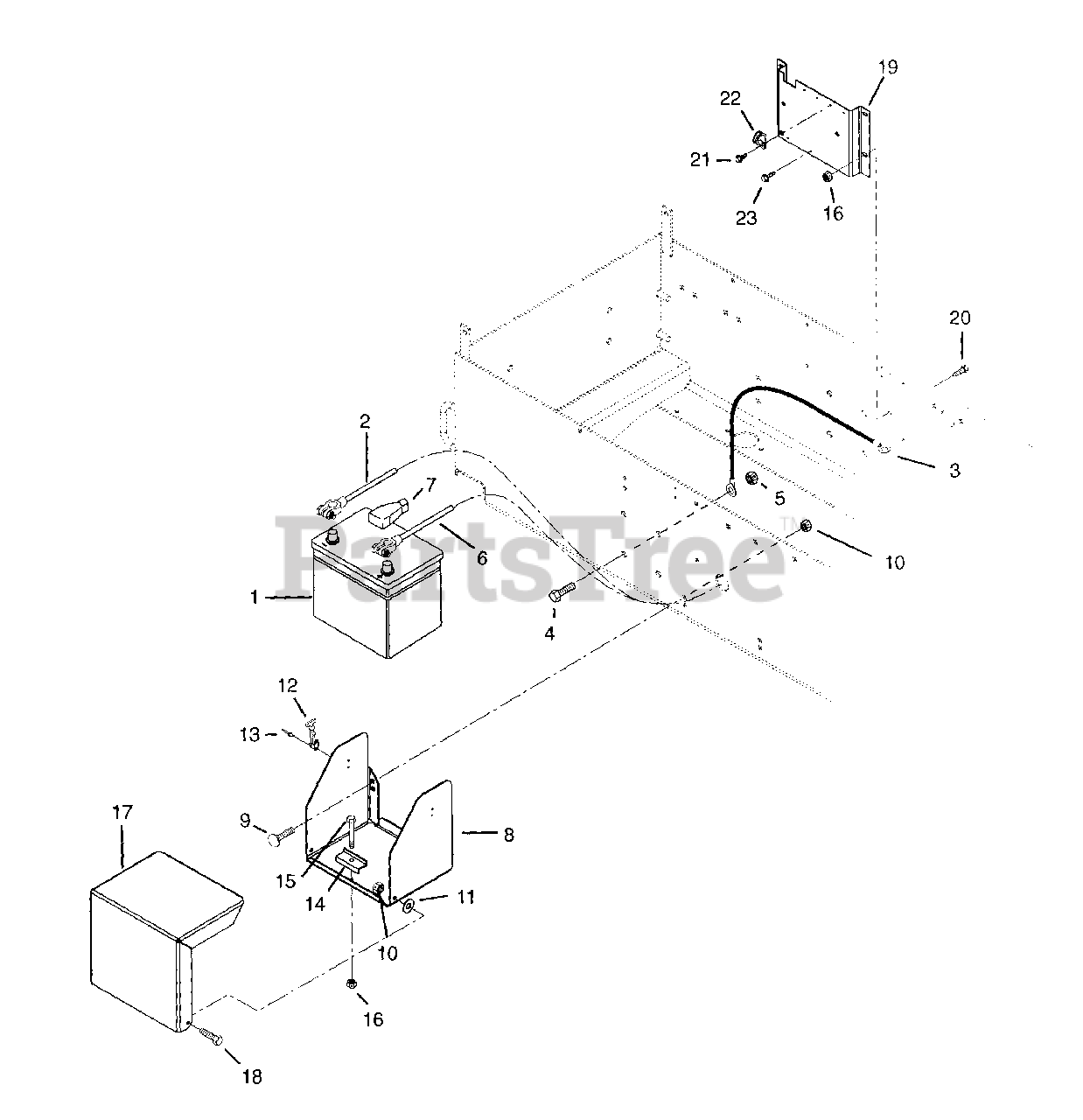

BATTERY AND ELECTRICAL BRACKET Parts Diagram

  • Title

1

Gravely 04202200

Battery
(Superseded to 02078500)

$

$

Not available

2

Gravely 08961000

Cable, Negative Battery

Note: (Model 010)

$

$

Not available

2

Gravely 08542000

Cable, Negative Battery

Note: (Model 016)

$

$

Not available

3

Gravely 09047600

Ground Strap

$

$

Not available

4

Gravely 05947100

Bolt-Hex .50-13 x 1.00 Grade 5
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

5

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

6

Gravely 09061900

Cable, Positive Battery

Note: (Model 010)

$

$

Not available

6

Gravely 08745500

Cable, Battery to Magneto Switch

Note: (Model 016)

$

$

Not available

7

Gravely 07523100

Cover, Battery Terminal

$

$

Not available

8

Gravely 09074800

Weldment, Battery Box

$31.99

$

Usually ships in 4-12 days

0

9

Gravely 06215700

Bolt-Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

10

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 00525200

Draw Latch, Rubber with Catch

$

$

Not available

13

Gravely 06804400

Rivet-Pop .125 x .357 Dome

$2.49

$

In Stock, only 1 left!

0

14

Gravely 00525400

Kubota Battery Clamp

$

$

Not available

15

Gravely 05947700

Bolt-Hex .25-20 x 1.00 Grade 5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

16

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 00525100

Weldment, Battery Box Cover

$

$

Not available

18

Gravely 05947200

Bolt-Hex .31-18 x .50 Grade 5
(Superseded to 05901904)

$1.49

$

In Stock, Qty 13

0

19

Gravely 09076800

Bracket, Electrical Component

Note: (Model 010)

$

$

Not available

20

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 07412100

Screw-Tapping 10-24 x .375 Hex Washer Head

Note: (Model 010)

$0.99

$

Usually ships in 4-12 days

0

22

Gravely 06916000

J-Clamp

Note: (Model 010)

$2.49

$

Usually ships in 4-12 days

0

23

Gravely 07413000

Screw-Tapping 10-24 x .75 Hex Washer Head
(Superseded to 07400118)

Note: (Model 010)

$3.99

$

In Stock, Qty 8

0
