990003 (PM 350) - Gravely Pro-Master Zero-Turn Mower, 21hp Kubota (SN: 000101 & Above) Wheels Parts Diagram

Pro-Master Zero-Turn Mower, 21hp Kubota

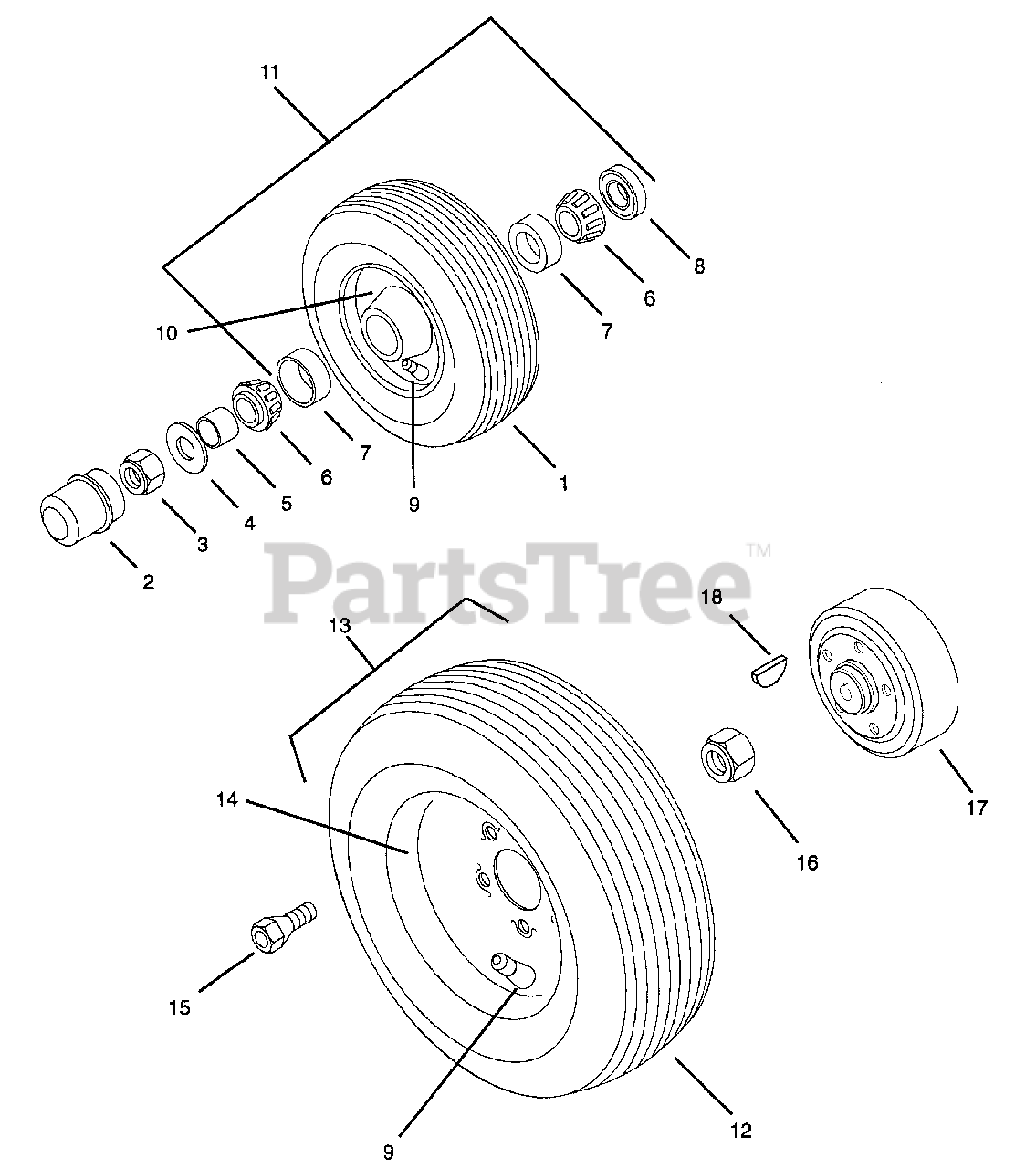

Wheels Parts Diagram

  • Title
1

Gravely 048924

Tire,Front 16 X 7.50-8
(Superseded to 07119600)

$216.99

$

Usually ships in 4-12 days

0

Gravely 07136000

Tire 15 x 6-6

$

$

Not available

2

Gravely 018449

Dust Cap
(Superseded to 03496000)

$14.99

$

In Stock, only 3 left!

0

3

Gravely 06506900

Nut-Lock-Center .625-11
(Superseded to 06535300)

$2.99

$

Usually ships in 4-12 days

0

4

Gravely 131016

Washer-Flat-Steel .656 x 1.312 x .095
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

5

Gravely 018448

Spacer .752 x 1.000 x .500
(Superseded to 03495900)

$15.99

$

In Stock, only 2 left!

0

6

Gravely 018446

Bearing-Cone .750 x .61
(Superseded to 05404500)

$23.99

$

In Stock, Qty 9

0

7

Gravely 018445

Bearing-Cup 1.78 x .475
(Superseded to 05404400)

$10.99

$

In Stock, Qty 20+

0

8

Gravely 018447

Seal 1.206 x 1.785 x .468
(Superseded to 05613200)

$15.99

$

In Stock, only 2 left!

0

9

Gravely 011191

ValveStem Assembly
(Superseded to 07520000)

$2.49

$

In Stock, Qty 5

0

10

Gravely 048925

Tire/Wheel Assembly 16 x 7.50-8
(Superseded to 07119600)

$216.99

$

Usually ships in 4-12 days

0

Gravely 07136100

Tire/Wheel Assembly 4.5 x 2.750

$

$

Not available

11

Gravely 031425

Tire,Front Assembly
(Superseded to 21212500)

$284.99

$

Usually ships in 4-12 days

0

Gravely 052779

Tire/Wheel Assembly 15 x 6.00-6
(Superseded to 07135400)

$

$

Not available

12

Gravely 052995

Tire/Wheel Assembly 23 x 10.50-12
(Superseded to 07150100)

$202.99

$

Usually ships in 4-12 days

0

Gravely 052994

Tire/Wheel Assembly 23 x 8.5-12
(Superseded to 20928200)

$142.99

$

Usually ships in 4-12 days

0

13

Gravely 048921

Tire,Rear 23 x 10.50-12
(Superseded to 20928100)

$

$

Not available

Gravely 048920

Tire,Rear 23 x 8.50-12
(Superseded to 20928000)

$

$

Not available

14

Gravely 048922

Weldment,Rim
(Superseded to 20928200)

$142.99

$

Usually ships in 4-12 days

0

15

Gravely 012744

Bolt .44-20 x 1.0
(Superseded to 07051400)

$10.99

$

In Stock, only 3 left!

0

16

Gravely 013619

Nut-Locking 1.00-14
(Superseded to 00181818)

$

$

Not available

17

Gravely 09049200

Hub,Wheel

$

$

Not available

18

Gravely 044386

Key-Square .312 x 2.25
(Superseded to 06607200)

$5.99

$

Usually ships in 4-12 days

0
