990003 (PM 350) - Gravely Pro-Master Zero-Turn Mower, 21hp Kubota (SN: 000101 & Above) Transmission Assembly Parts Diagram

Pro-Master Zero-Turn Mower, 21hp Kubota

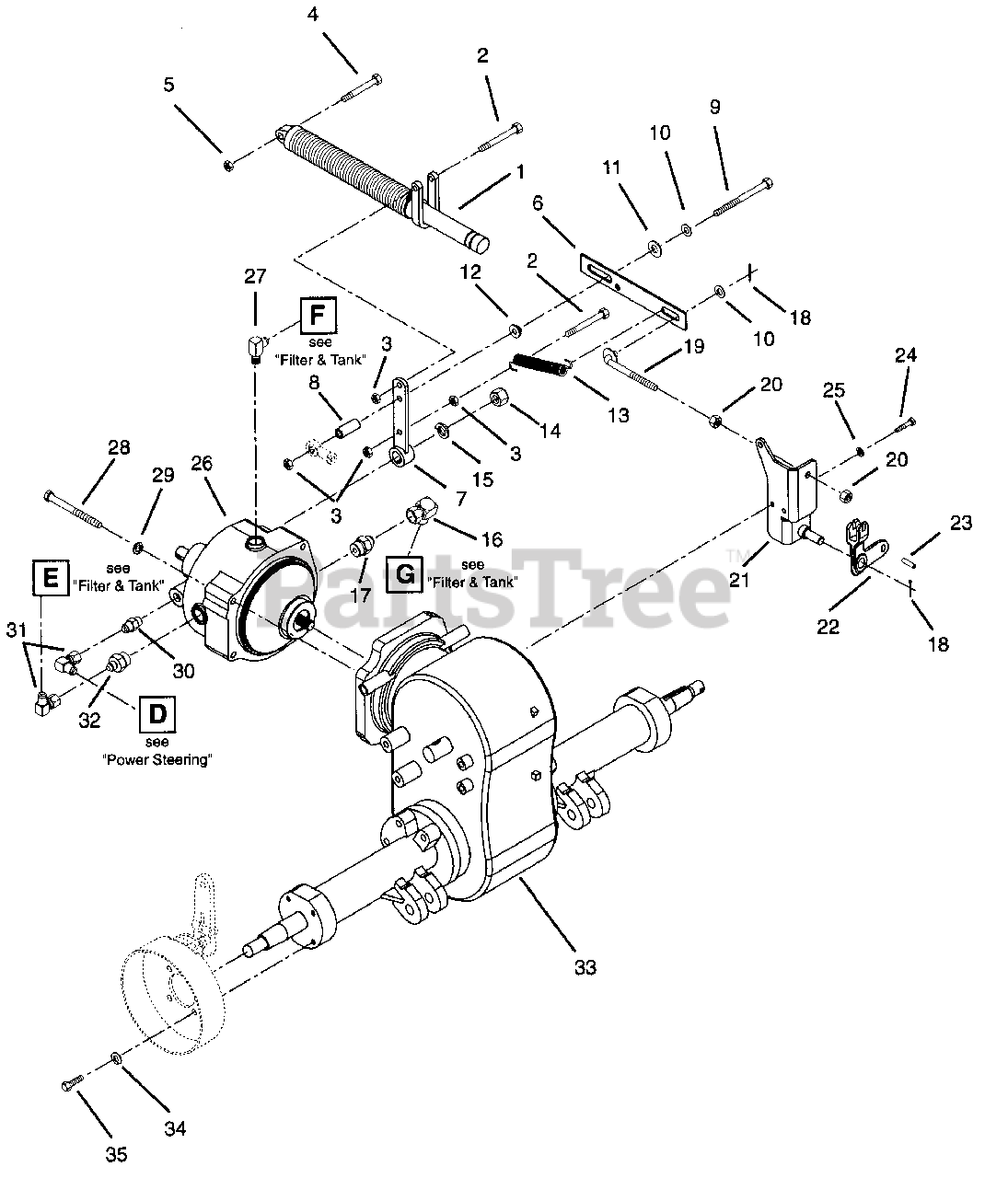

Transmission Assembly Parts Diagram

  • Title

1

Gravely 050131

Damper
(Superseded to 08994400)

$195.99

$

Usually ships in 4-12 days

0

2

Gravely 080087

Bolt-Hex .31 - 18 x 2.00 Grade 5

$

$

Not available

3

Gravely 419455

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 180085

Bolt-Hex .31 - 18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

5

Gravely 120376

Nut-Hex .312-18 Grade 2
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

6

Gravely 09054000

Strap, Neutral Detent

$

$

Not available

7

Gravely 09050500

Weldment, Transmission Control Lever

$

$

Not available

8

Gravely 09050600

Spacer

$5.99

$

Usually ships in 4-12 days

0

9

Gravely 05913600

Bolt-Hex .31-18 x 3.00 Grade 2
(Superseded to 05962500)

$3.99

$

In Stock, only 4 left!

0

10

Gravely 120394

Washer-Flat-Steel .406 x 812x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 120396

Washer-Flat-Steel .531 x 1.062 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 05514800

Bushing-Glange .312 x .500 x .344 x .880

$2.49

$

In Stock, only 3 left!

0

13

Gravely 015255

Spring-tension .091x .500x x 5.50
(Superseded to 08327500)

$

$

Not available

14

Gravely 414074

Nut-Locking .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

15

Gravely 120384

Washer-Lock .50
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

16

Gravely 04131500

Face Seal Adapater

$

$

Not available

17

Gravely 07025800

Adapter Hydraulic

$13.99

$

In Stock, only 2 left!

0

18

Gravely 0121222

Pin-Cotter .09x .75

$

$

Not available

19

Gravely 09054200

Weldment, Detent Rod

$

$

Not available

20

Gravely 120369

Nut-Hex .375-24 Grade 2
(Superseded to 06522900)

$2.49

$

In Stock, only 2 left!

0

21

Gravely 09053900

Bracket, Hi-Lo Pivot

$22.99

$

Usually ships in 4-12 days

0

22

Gravely 044559

Lever, Hi-Lo
(Superseded to 08952300)

$

$

Not available

23

Gravely 412287

Pin-Roll .250 x 1.000

$

$

Not available

24

Gravely 180020

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 120380

Washer-Lock .250
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 09048900

Transmission,Eaton Model 11/1100-061

$1612.99

$

Usually ships in 4-12 days

0

27

Gravely 018828

Adapter
(Superseded to 00313270)

$9.49

$

Usually ships in 4-12 days

0

28

Gravely 180138

Bolt-Hex .38-16 x 3.00
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

29

Gravely 120382

Washer-Lock .375 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 019167

Adapter-Pipe
(Superseded to 07017500)

$11.99

$

In Stock, only 2 left!

0

31

Gravely 018818

Adapter
(Superseded to 08901000)

$20.99

$

Usually ships in 4-12 days

0

32

Gravely 07042700

Adapter, Hydraulic

$

$

Not available

33

Gravely 09049100

Transaxle, Peerless
(Superseded to 09068100)

$1959.99

$

Usually ships in 4-12 days

0

34

Gravely 120214

Washer-Lock .313 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 180077

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0
