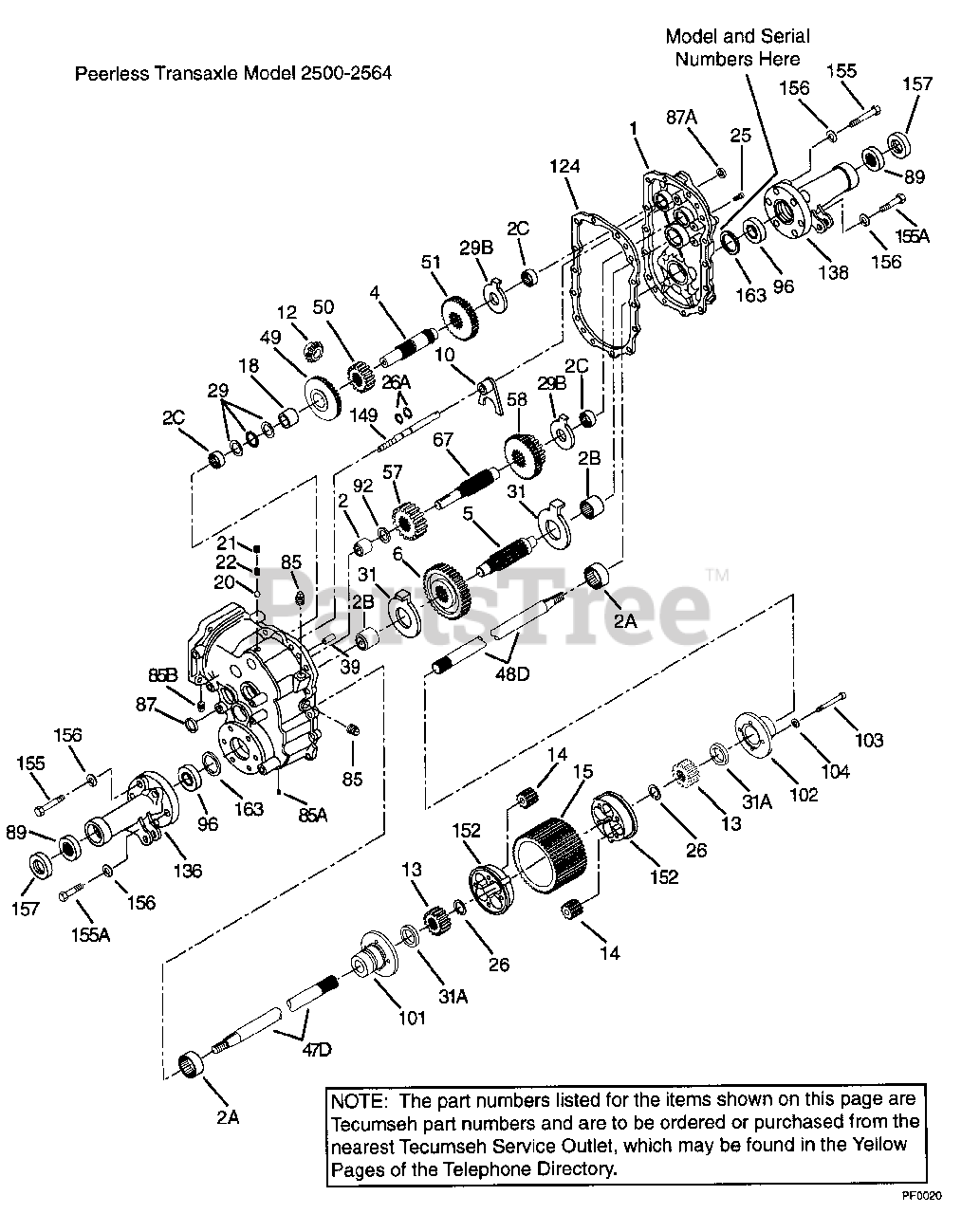

990003 (PM 350) - Gravely Pro-Master Zero-Turn Mower, 21hp Kubota (SN: 000101 & Above) Transaxle Parts Diagram

Pro-Master Zero-Turn Mower, 21hp Kubota

Transaxle Parts Diagram

  • Title

1

Gravely 772065

Transaxle Cover(Incl. 2A, 2B & 2C)

Note: (Incl. 2A, 2B & 2C)

$

$

Not available

2

Gravely 780097

Needle Bearing 1" ID

$

$

Not available

2A

Gravely 780098

Needle Bearing 2" ID

$

$

Not available

2B

Gravely 780099

Needle Bearing 1-1/4" ID

$

$

Not available

2C

Gravely 780100

Needle Bearing 1" ID

$

$

Not available

3

Gravely 770060B

Transaxle Case(Incl. 2, 2A, 2B, 2C & 85B)

Note: (Incl. 2, 2A, 2B, 2C & 85B)

$

$

Not available

4

Gravely 776209A

Countershaft

$

$

Not available

5

Gravely 776120A

Output Shaft(13 teeth)

Note: (13 teeth)

$

$

Not available

6

Gravely 778134

Spur Gear

$

$

Not available

10

Gravely 784195

Shift Fork

$

$

Not available

12

Gravely 778133

Bevel Pinion(13 teeth-steel)

Note: (13 teeth-steel)

$

$

Not available

13

Gravely 778085

Side Gear

$

$

Not available

14

Gravely 778086

Spur Pinion(10 teeth-steel)

Note: (10 teeth-steel)

$

$

Not available

15

Gravely 778084

Ring Gear

$

$

Not available

18

Gravely 786094A

Spacer

$

$

Not available

20

Gravely 792004

Ball 3/16" dia.

$

$

Not available

21

Gravely 792068

SetScrew 1/4-20 x 1/2"

$

$

Not available

22

Gravely 792003

Spring Detent

$

$

Not available

24

Gravely 780012

Thrust Bearing

$

$

Not available

25

Gravely 792067

Screw 5/16-18

$

$

Not available

26

Gravely 792062

Retaining Ring

$

$

Not available

26A

Gravely 792064

Ext. Retaining Ring .406

$

$

Not available

29

Gravely 780045

Thrust Washer

$

$

Not available

29B

Gravely 780157

Thrust Washer

$

$

Not available

31

Gravely 780156

Thrust Washer

$

$

Not available

31A

Gravely 780101

Thrust Washer(.060 thick)

Note: (.060 thick)

$

$

Not available

39

Gravely 786026

Dowel Pin

$

$

Not available

47D

Gravely 775005

Axle(19-15/16" long)

Note: (19-15/16" long)

$

$

Not available

48D

Gravely 775004

Axle(19-1/16" long)

Note: (19-1/16" long)

$

$

Not available

49

Gravely 778087

Bevel Gear(30 teeth-steel)

Note: (30 teeth-steel)

$

$

Not available

50

Gravely 778088

Spur Gear(16 teeth-steel)

Note: (16 teeth-steel)

$

$

Not available

51

Gravely 778096

Spur Gear(23 teeth-steel)

Note: (23 teeth-steel)

$

$

Not available

57

Gravely 778135

Spur Gear(19 teeth-steel)

Note: (19 teeth-steel)

$

$

Not available

58

Gravely 778097

Shifter Spur Gear(20 & 27 teeth)

Note: (20 & 27 teeth)

$

$

Not available

67

Gravely 776119

Shifter & Brake Shaft

$

$

Not available

85

Gravely 792010

PipePlug 3/8"

$

$

Not available

85A

Gravely 792019

Magnetic Drain Plug

$

$

Not available

85B

Gravely 792039

Plug 1/8-27

$

$

Not available

87

Gravely 788008

Oil Seal 1"

$

$

Not available

87A

Gravely 788034

Oil Seal 1/2"

$

$

Not available

89

Gravely 780103

Ball Bearing 1-1/8"

$

$

Not available

92

Gravely 780005

Thrust Washer

$

$

Not available

96

Gravely 780104

Thrust Bearing

$

$

Not available

101

Gravely 774200

Differential Carrier

$

$

Not available

102

Gravely 774199

Differential Carrier

$

$

Not available

103

Gravely 792063

Screw 3/8-16 x 3-5/16"

$

$

Not available

104

Gravely 792011

Lockwasher .343 ID

$

$

Not available

124

Gravely 788047

Gasket

$

$

Not available

136

Gravely 782054

Axle Housing(11.2" long)

Note: (11.2" long)

$

$

Not available

138

Gravely 782055

Axle Housing(11.2" long)

Note: (11.2" long)

$

$

Not available

149

Gravely 784196A

Shift Rod(High-Low)

Note: (High-Low)

$

$

Not available

152

Gravely 786054

Body Core

$

$

Not available

155

Gravely 792090

Screw 1/2-13 x 2-3/4"

$

$

Not available

155A

Gravely 792069

Screw 1/2-13 x 1-1/2"

$

$

Not available

156

Gravely 792066

Lockwasher

$

$

Not available

157

Gravely 788049

OilSeal 1-1/8"

$

$

Not available

163

Gravely 788048

Square Cut Ring

$

$

Not available
