990003 (PM 350) - Gravely Pro-Master Zero-Turn Mower, 21hp Kubota (SN: 000101 & Above) Power Steering Parts Diagram

Pro-Master Zero-Turn Mower, 21hp Kubota

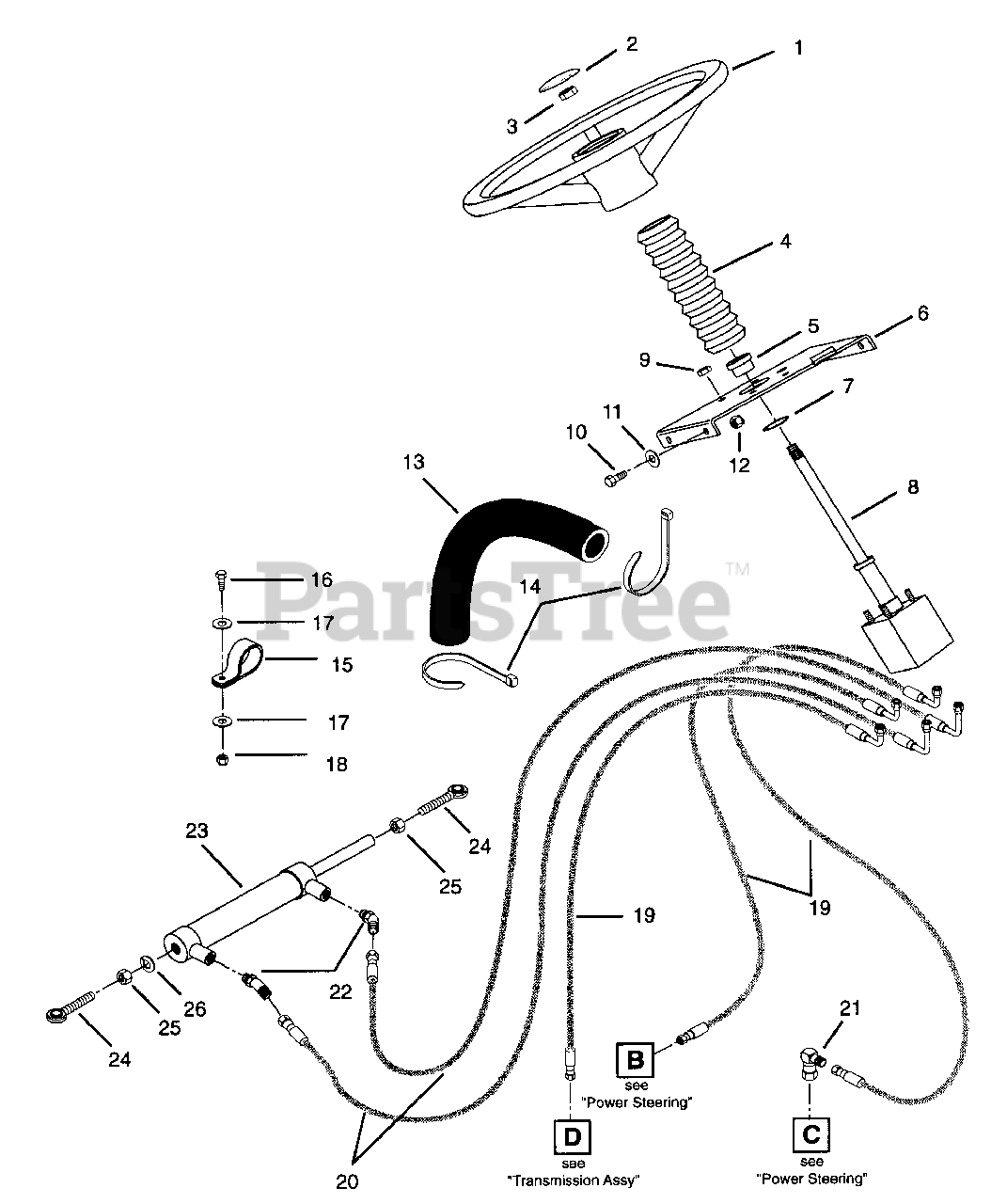

Power Steering Parts Diagram

  • Title
1

Gravely 031281

Steering Wheel
(Superseded to 03066600)

$

$

Not available

2

Gravely 031426

Steering Wheel Cap
(Superseded to 03489800)

$

$

Not available

3

Gravely 124847

Nut-Jam .625-11
(Superseded to 06539300)

$

$

Not available

4

Gravely 047311

Steering Wheel Boot
(Superseded to 08739200)

$

$

Not available

5

Gravely 010174

Bushing-Flange .762 x 1.0 x .580 x 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

6

Gravely 046290

Bracket,Steering Pump
(Superseded to 08977100)

$

$

Not available

7

Gravely 020273

Ring
(Superseded to 05717300)

$

$

Not available

8

Gravely 033845

Power Steering Unit
(Superseded to 06427400)

$2.49

$

In Stock, only 2 left!

0

9

Gravely 190139

Nut-Locking-Nylon .312-24 Grade 2
(Superseded to 06526500)

$1.99

$

Usually ships in 4-12 days

0

10

Gravely 180077

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 120393

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 419455

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 052780

Sleeve 12"
(Superseded to 09011400)

$

$

Not available

14

Gravely 041634

TieWrap, Black
(Superseded to 07519900)

$3.49

$

Usually ships in 4-12 days

0

15

Gravely 045279

Clamp,Nylon
(Superseded to 06939900)

$

$

Not available

16

Gravely 180122

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

19

Gravely 046381

Assembly,Hydraulic Hose
(Superseded to 08978100)

$64.99

$

Usually ships in 4-12 days

0

20

090616

Hydraulic Hose Assembly

$

$

Not available

21

Gravely 018818

Adapter
(Superseded to 08901000)

$20.99

$

Usually ships in 4-12 days

0

22

Gravely 018829

Adapter
(Superseded to 08901200)

$21.99

$

Usually ships in 4-12 days

0

23

Gravely 044583

Cylinder,Steering
(Superseded to 04935800)

$559.99

$

In Stock, only 1 left!

0

24

Gravely 044950

Assembly,Rod End
(Superseded to 08959600)

$38.99

$

Usually ships in 4-12 days

0

25

Gravely 124934

Nut-Jam .50-20 Grade 2
(Superseded to 06539500)

$2.49

$

Usually ships in 4-12 days

0

26

Gravely 120384

Washer-Lock .50
(Superseded to 06300115)

$1.49

$

In Stock, Qty 17

0
