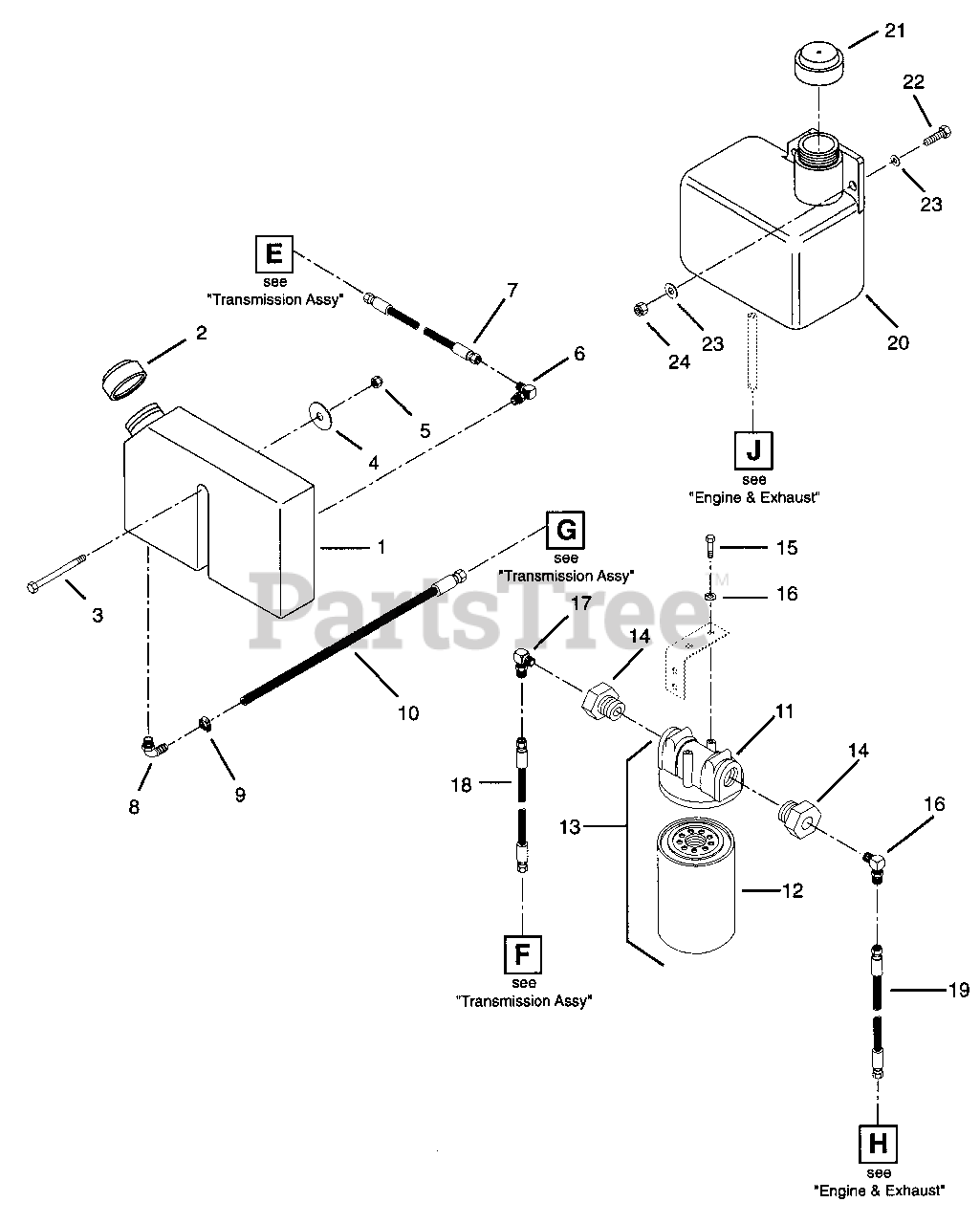

990003 (PM 350) - Gravely Pro-Master Zero-Turn Mower, 21hp Kubota (SN: 000101 & Above) Filter and Tank Parts Diagram

Pro-Master Zero-Turn Mower, 21hp Kubota

Filter and Tank Parts Diagram

  • Title
1

Gravely 053021

Tank,Hydraulic
(Superseded to 08868400)

$

$

Not available

2

Gravely 044877

Cap,Tank
(Superseded to 08826200)

$21.99

$

Usually ships in 4-12 days

0

3

Gravely 187147

Bolt-Hex .31-18 x 3.50
(Superseded to 05948000)

$

$

Not available

4

Gravely 053122

Washer,Flat .344 x 3.0 x .060
(Superseded to 08857300)

$

$

Not available

5

Gravely 419455

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 07042800

Adapter,Fitting 90 deg.

$

$

Not available

7

Gravely 046386

Assembly,Hydraulic Hose
(Superseded to 08978400)

$

$

Not available

8

Gravely 046116

Fitting-Elbow .50 x .50
(Superseded to 07019800)

$

$

Not available

9

Gravely 021247

Clamp, .88 Diameter Hose
(Superseded to 06923500)

$1.99

$

In Stock, Qty 6

0

10

Gravely 09047100

Hose Assembly

$

$

Not available

11

Gravely 09221100

Head,Oil Filter

$

$

Not available

12

Gravely 04108100

Replacement Element

$50.99

$

Usually ships in 4-12 days

0

13

Gravely 09204900

Assembly,Filter

$

$

Not available

14

Gravely 07020600

Adapter-Hydraulic .88-14

$

$

Not available

15

Gravely 180018

Bolt-Hex .25-20 x .63
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

16

Gravely 120380

Washer-Lock .250 Reg.
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 018828

Adapter
(Superseded to 00313270)

$9.49

$

Usually ships in 4-12 days

0

18

Gravely 046386

Assembly,Hydraulic Hose
(Superseded to 08978400)

$

$

Not available

19

Gravely 046381

Assembly,Hydraulic Hose
(Superseded to 08978100)

$64.99

$

Usually ships in 4-12 days

0

20

Gravely 044385

Tank,Plastic 1.5 Qt.
(Superseded to 09032400)

$

$

Not available

21

Gravely 045243

Cap, 1-5/8 Vented
(Superseded to 08967800)

$

$

Not available

22

Gravely 180077

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06412300

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 120376

Nut-Hex .312-18 Zinc Grade 2
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0
