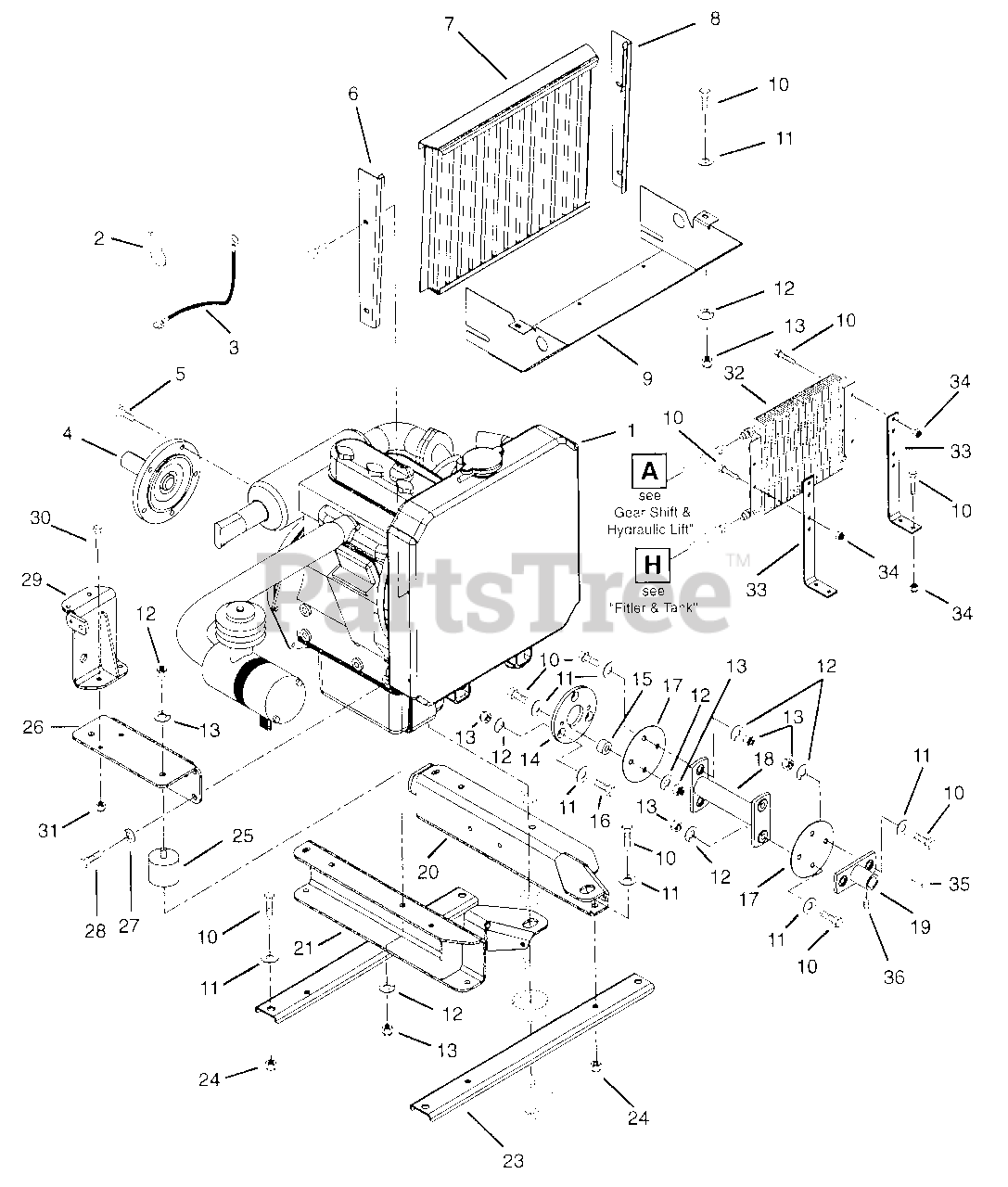

990003 (PM 350) - Gravely Pro-Master Zero-Turn Mower, 21hp Kubota (SN: 000101 & Above) Engine and Exhaust Kubota Parts Diagram

Pro-Master Zero-Turn Mower, 21hp Kubota

Engine and Exhaust Kubota Parts Diagram

  • Title

1

Gravely 00505500

Engine 21 HP Kubota Diesel D722B-1

$

$

Not available

2

Gravely 041634

Tie Wrap, Black
(Superseded to 07519900)

$3.49

$

Usually ships in 4-12 days

0

3

Gravely 09047700

Ground Strap

$

$

Not available

4

Gravely 00551200

Stud Shaft Weldment, Clutch

$

$

Not available

5

Gravely 05932500

Screw, M8 x 1.25 x 20mm

$

$

Not available

6

Gravely 09060300

Weldment, Screen Support, Right Hand

$17.99

$

Usually ships in 4-12 days

0

7

Gravely 00520600

Grille, Radiator
(Superseded to 09422600)

$

$

Not available

8

Gravely 09060400

Weldment, Screen Support, Left Hand

$17.99

$

Usually ships in 4-12 days

0

9

Gravely 09061000

Shield, Bottom Air Intake
(Superseded to 59001600)

$

$

Not available

10

Gravely 180122

Bolt-Hex .375-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06400200

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 120382

Washer-Lock .375 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 120377

Nut-Hex .375-16 Grade 2
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 09050200

Plate, Adapter

$

$

Not available

15

Gravely 00518000

Spacer, .406 I.D. x .88 O.D. x .38 Long

$10.99

$

Usually ships in 4-12 days

0

16

Gravely 00590700

Bolt-Hex .38-16 x 1.00

$

$

Not available

17

Gravely 00517800

Flex Coupling Disc

$

$

Not available

18

Gravely 09050300

Weldment, Transmission Drive Shaft

$

$

Not available

19

Gravely 09050000

Weldment, Transmission Coupling

$

$

Not available

20

Gravely 00519000

Weldment, Lower Left Hand Engine Mount

$

$

Not available

21

Gravely 00518700

Engine Mount, Lower Right Hand Kubota

$

$

Not available

22

Gravely 09049600

Bracket, Engine Mount

$

$

Not available

23

Gravely 09050400

Bracket, Engine Mount

$

$

Not available

24

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

25

Gravely 00518600

Vibration Isolator, Kubota

$

$

Not available

26

Gravely 00518500

Weldment, Upper Right Hand Kubota EngineMount

$

$

Not available

27

Gravely 06304600

Washer-Lock Metric 10MM

$2.49

$

Usually ships in 4-12 days

0

28

Gravely 00598700

Screw, Hex head 10MM-1.25 x 20
(Superseded to 05960500)

$3.49

$

Usually ships in 4-12 days

0

29

Gravely 00518800

Weldment, Diesel Fuel Filter Mount
(Superseded to 00578200)

$

$

Not available

30

Gravely 180079

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 413447

Nut-Locking .312-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 053101

Cooler, Oil
(Superseded to 08856200)

$

$

Not available

33

Gravely 09062300

Bracket, Oil Cooler Mount

$

$

Not available

34

Gravely 419454

Nut-Lock-Nylon .250-20 Grade 2
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

35

Gravely 06601500

Key-Woodruff .125 x .625 x .250

$2.49

$

In Stock, only 1 left!

0

36

Gravely 036357

Screw-Set .32-18 x .38 Socket Head Cup Point Nylon
(Superseded to 06005500)

$2.99

$

In Stock, Qty 15

0
