98982-1350-01 - Briggs & Stratton Vertical Engine Camshaft, Crankcase Cover/Sump, Crankshaft, Piston/Rings/Connecting Rod Parts Diagram

Vertical Engine

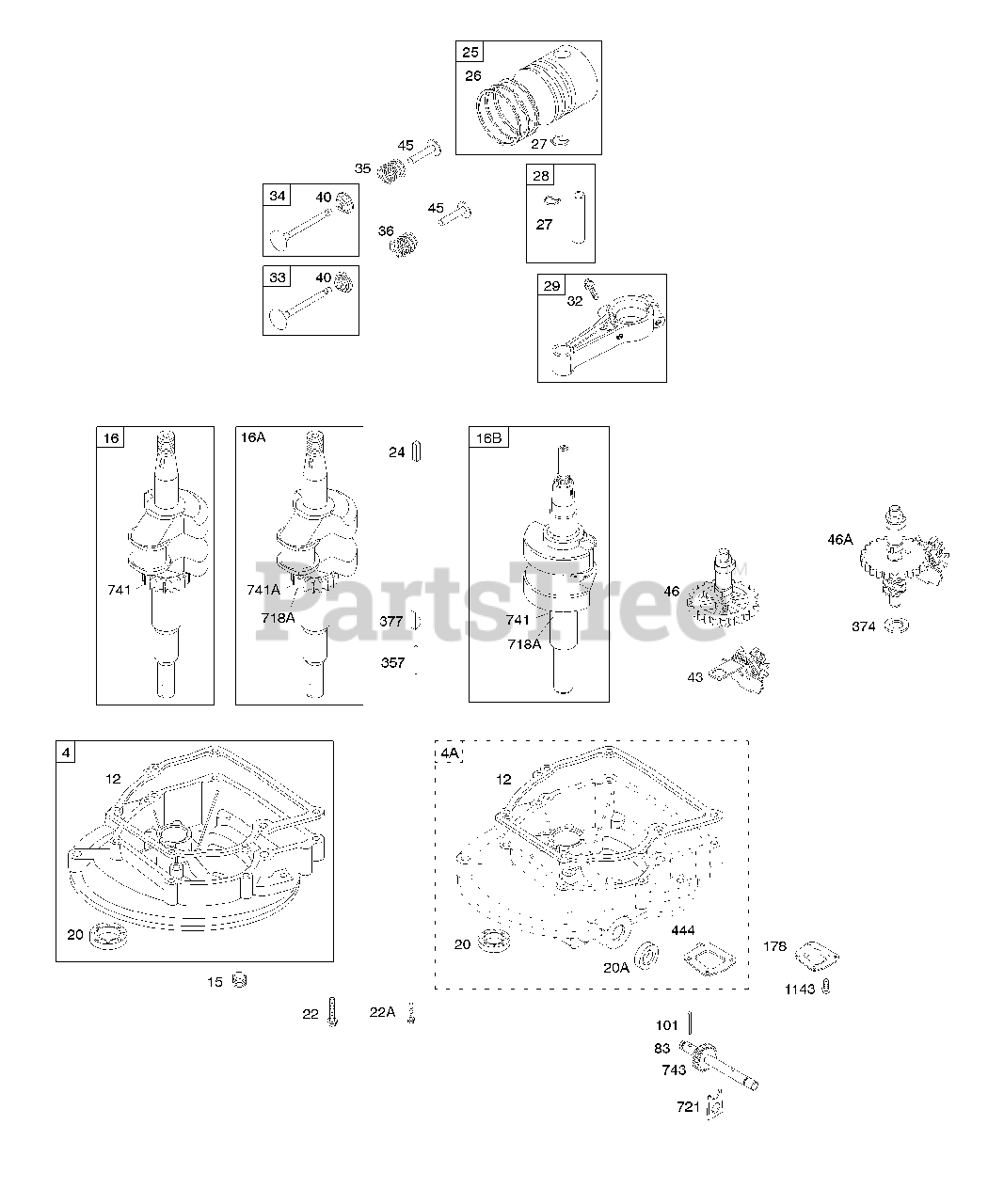

Camshaft, Crankcase Cover/Sump, Crankshaft, Piston/Rings/Connecting Rod Parts Diagram

  • Title

4

Briggs & Stratton 698691

Sump-Engine
(Superseded to 590569)

Note: Used After Code Date 02111200

$104.99

$

In Stock, Qty 5

0

4

Briggs & Stratton 395384

Sump-Engine
(Superseded to 590569)

Note: Used Before Code Date 02111300

$104.99

$

In Stock, Qty 5

0

4A

Sump-Engine

Note: (NO LONGER AVAILABLE)

$

$

Not available

12

Briggs & Stratton 270895

Gasket-Crankcase

Note: (.005" Thick)

$9.99

$

In Stock, only 2 left!

0

12

Briggs & Stratton 270896

Gasket-Crankcase

Note: (.009" Thick)

$5.99

$

In Stock, Qty 8

0

12

Briggs & Stratton 692218

Gasket-Crankcase

Note: (.015" Thick)(Standard)

$

$

Not available

15

Briggs & Stratton 691680

PLUG, Oil Drain

$5.99

$

In Stock, only 1 left!

0

16B

Briggs & Stratton 492748

Crankshaft

$172.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 391483S

Seal-Oil

Note: (PTO Side)

$5.99

$

In Stock, Qty 5

0

20A

Briggs & Stratton 691952

Seal-Oil

Note: (PTO Side) (Auxiliary PTO)

$9.99

$

In Stock, Qty 11

0

22

Briggs & Stratton 692551

Screw

Note: (Crankcase Cover/Sump) (1 3/16" Long)

$3.99

$

In Stock, only 2 left!

0

22A

Briggs & Stratton 691108

SCREW

Note: (Crankcase Cover/Sump) (3/4" Long)

$3.49

$

In Stock, Qty 20+

0

24

Briggs & Stratton 222698S

KEY, Flywheel

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 298906

Piston Assembly

Note: (.020 Oversize) Used Before Code Date 96020600

$

$

Not available

25

Briggs & Stratton 699657

Piston Assembly
(Superseded to 795691)

Note: (Standard) Used After Code Date 03080300 Used Before Code Date 04111500

$111.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 790908

Piston Assembly
(Superseded to 795691)

Note: (Standard) Used After Code Date 96020500 Used Before Code Date 03080400

$111.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 790908

Piston Assembly
(Superseded to 795691)

Note: (Standard) Used After Code Date 04111400

$111.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 792532

Piston Assembly
(Superseded to 795689)

Note: (.020 Oversize) Used After Code Date 04111400

$80.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 793214

Piston Assembly

Note: (Standard) Used Before Code Date 96020600

$

$

Not available

26

Briggs & Stratton 298982

Ring Set

Note: (Standard) Used Before Code Date 96020600

$48.99

$

In Stock, Qty 8

0

26

Briggs & Stratton 298984

Ring Set

Note: (.020 Oversize) Used Before Code Date 96020600

$35.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 498680

Ring Set

Note: (Standard) Used After Code Date 96020500 Used Before Code Date 03080400

$

$

Not available

26

Briggs & Stratton 498682

Ring Set

Note: (.020 Oversize) Used After Code Date 96020500 Used Before Code Date 04111500

$42.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 699658

Ring Set

Note: (Standard) Used After Code Date 03080300 Used Before Code Date 04111500

$45.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 795132

Ring Set
(Superseded to 795690)

Note: (Standard) Used After Code Date 04111400

$52.99

$

In Stock, only 3 left!

0

26

Briggs & Stratton 795134

Ring Set
(Superseded to 795688)

Note: (.020 Oversize) Used After Code Date 04111400

$98.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 691588

Lock-Piston Pin

$4.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 298909

Pin-Piston

Note: (Standard) Used Before Code Date 03080400

$8.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 699659

Pin-Piston

Note: (Standard) Used After Code Date 03080300

$8.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 699655

Rod-Connecting

Note: (Standard)

$39.99

$

In Stock, only 3 left!

0

32

Briggs & Stratton 691664

Screw

Note: (Connecting Rod)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 296676

Valve-Exhaust

$23.99

$

In Stock, only 2 left!

0

34

Briggs & Stratton 296677

Valve-Intake

$24.99

$

In Stock, only 3 left!

0

35

Briggs & Stratton 690520

Spring-Valve

Note: (Intake)

$5.49

$

In Stock, only 1 left!

0

36

Briggs & Stratton 690520

Spring-Valve

Note: (Exhaust)

$5.49

$

In Stock, only 1 left!

0

40

Briggs & Stratton 692194

Retainer-Valve

$5.99

$

In Stock, Qty 11

0

43

Briggs & Stratton 698690

Slinger-Governor/Oil

Note: Used After Code Date 02110400

$15.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 691983

Slinger-Governor/Oil
(Superseded to 698690)

Note: Used Before Code Date 02110500

$15.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 691762

Tappet-Valve

$9.99

$

Usually ships in 2-12 days

0

46A

Briggs & Stratton 690644

Camshaft

Note: (Counterclockwise)

$109.99

$

Usually ships in 2-12 days

0

83

Briggs & Stratton 690506

Shaft-Auxiliary Drive

$24.99

$

Usually ships in 2-12 days

0

101

Briggs & Stratton 691623

Pin-Shaft

$

$

Not available

178

Briggs & Stratton 690398

Cover-Drive Gear

$3.99

$

Usually ships in 2-12 days

0

357

Briggs & Stratton 692191

Key-Drive Pulley

$

$

Not available

374

Briggs & Stratton 691074

Washer

Note: (Camshaft)

$

$

Not available

377

Briggs & Stratton 692193

Key-Woodruff

$3.99

$

In Stock, only 1 left!

0

444

Briggs & Stratton 691868

Gasket-Drive Gear Cover

$4.49

$

Usually ships in 2-12 days

0

718A

Briggs & Stratton 499047

Pin-Locating

Note: (Crankshaft) Used Before Code Date 08071400

$4.99

$

Usually ships in 2-12 days

0

721

Briggs & Stratton 690397

Stop-Shaft

$4.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 796210

Gear-Timing

Note: Used After Code Date 08071300

$9.49

$

Usually ships in 2-12 days

0

741A

Briggs & Stratton 691805

Gear-Timing

Note: Used Before Code Date 08071400

$15.99

$

Usually ships in 2-12 days

0

743

Briggs & Stratton 691772

Gear-Drive

Note: (Counterclockwise)

$82.99

$

Usually ships in 2-12 days

0

1143

Briggs & Stratton 691141

Screw

Note: (Drive Gear Cover)

$3.99

$

Usually ships in 2-12 days

0
