989306 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) PTO Clutch Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

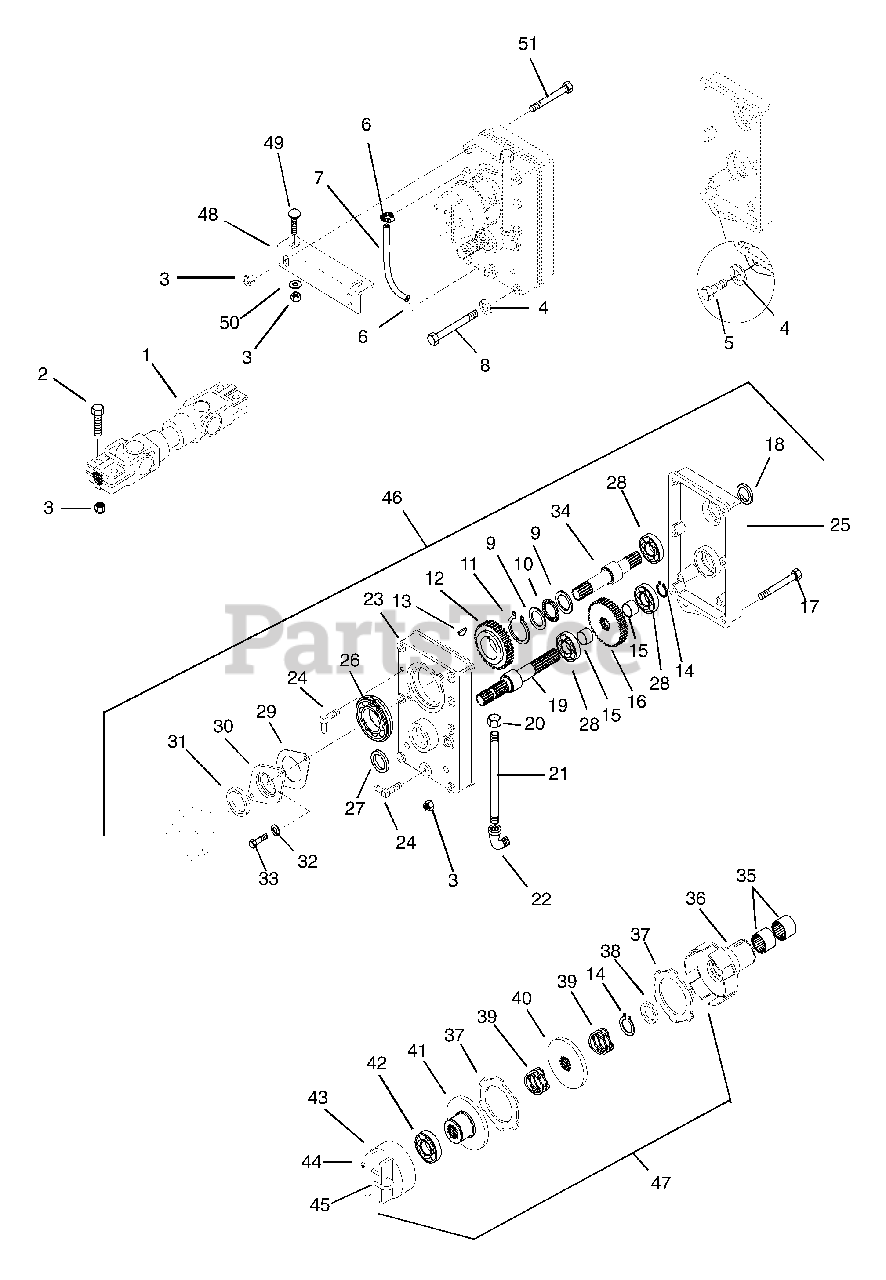

PTO Clutch Parts Diagram

  • Title

1

Gravely 09018500

Assembly, PTO U-Joint

$

$

Not available

2

Gravely 05958500

Bolt-Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06307300

Washer-Locking .50 X 1.25
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

5

Gravely 05962000

Bolt-Hex .50-13 x 1.50 Grade 5
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

6

Gravely 032045

Hose Clamp
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

7

Gravely 050477

Hose, 1/4 Inch Viny
(Superseded to 00918300)

$3.49

$

Usually ships in 4-12 days

0

8

Gravely 05969100

Bolt-Hex .50-13 x 4.25 Grade 5
(Superseded to 05901906)

$4.99

$

In Stock, only 4 left!

0

9

Gravely 017959

Washer-Thrust 1.55
(Superseded to 06426500)

$18.99

$

In Stock, only 2 left!

0

10

Gravely 011225

Bearing-Needle-Thrust 1.0 x 1.55 x .078
(Superseded to 05427900)

$9.49

$

Usually ships in 4-12 days

0

11

Gravely 017919

Ring-Retaining-External 1.819 x .062
(Superseded to 05712100)

$3.49

$

Usually ships in 4-12 days

0

12

Gravely 048635

Gear, PTO
(Superseded to 08984900)

$

$

Not available

13

Gravely 124553

Key-Woodruff .25 x 1
(Superseded to 06608900)

$3.99

$

In Stock, Qty 18

0

14

Gravely 017980

Ring-Retaining-External .906 x .078
(Superseded to 05707300)

$2.99

$

In Stock, Qty 9

0

15

Gravely 045113

Spacer 1.01 x 1.25 x .645
(Superseded to 08963700)

$11.99

$

In Stock, only 1 left!

0

16

Gravely 048636

Gear, PTO
(Superseded to 08985000)

$180.99

$

Usually ships in 4-12 days

0

17

Gravely 05960900

Bolt-Hex .38-16 x 3.50 Grade 5
(Superseded to 05901818)

$3.99

$

In Stock, Qty 20+

0

18

Gravely 045133

Seal .984 x 1.6 x .25
(Superseded to 05617400)

$26.99

$

Usually ships in 4-12 days

0

19

Gravely 045112

Shaft, PTO
(Superseded to 08963600)

$

$

Not available

20

Gravely 050476

Cap, Pipe 3/8"
(Superseded to 08996100)

$

$

Not available

21

Gravely 07025000

Nipple, Pipe .38 x 6.0

$

$

Not available

22

Gravely 07024200

Elbow .38 x 90

$9.49

$

Usually ships in 4-12 days

0

23

Gravely 044901

Cover
(Superseded to 08958000)

$

$

Not available

24

Gravely 014745

Elbow, Hose
(Superseded to 08900300)

$

$

Not available

25

Gravely 044900

Case, PTO
(Superseded to 08957900)

$640.99

$

Usually ships in 4-12 days

0

26

Gravely 05435400

Bearing-Ball 1.97 x 3.14 x .63

$

$

Not available

27

Gravely 045134

Seal 1.25 x 1.75 x .25
(Superseded to 05617500)

$26.99

$

In Stock, only 1 left!

0

28

Gravely 05421500

Bearing-Ball .984 x 2.047 x .591

$13.99

$

In Stock, only 3 left!

0

29

Gravely 021528

Gasket, Front PTO Cap
(Superseded to 08737300)

$5.99

$

Usually ships in 4-12 days

0

30

Gravely 045116

Cap, Front PTO
(Superseded to 08963800)

$122.99

$

Usually ships in 4-12 days

0

31

Gravely 017917

Seal 2.250 x 3.002 x .375
(Superseded to 05614000)

$21.99

$

In Stock, only 1 left!

0

32

Gravely 06308600

Washer-Lock .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 045110

Shaft, PTO Input (Upper)
(Superseded to 08963500)

Note: (Upper)

$

$

Not available

35

Gravely 045121

Bearing-Roller 1.0 x 1.312 x .75
(Superseded to 05425900)

$

$

Not available

36

Gravely 042631

Hub, PTO Clutch
(Superseded to 08943600)

$

$

Not available

37

Gravely 042634

Disc, Clutch
(Superseded to 08943700)

$68.99

$

In Stock, only 2 left!

0

38

Gravely 045132

Seal 1.0 x 1.50 x .25
(Superseded to 05617300)

$15.99

$

Usually ships in 4-12 days

0

39

Gravely 050958

Spring-Wave
(Superseded to 08345200)

$13.99

$

In Stock, only 2 left!

0

40

Gravely 042636

Plate, Clutch
(Superseded to 08943800)

$

$

Not available

41

Gravely 042637

Hub, Clutch Actuating
(Superseded to 08943900)

$312.99

$

Usually ships in 4-12 days

0

42

Gravely 035330

Bearing-Ball 1.57 x 3.15 x .71
(Superseded to 05420900)

$193.99

$

In Stock, only 3 left!

0

43

Gravely 034734

Trunnion, Forward-Reverse Clutch
(Superseded to 08911000)

$95.99

$

In Stock, only 4 left!

0

44

Gravely 06707500

Pin-Cotter .062 x .75

$0.99

$

In Stock, only 2 left!

0

45

Gravely 035681

Pin, Clutch Spring
(Superseded to 08654800)

$45.99

$

In Stock, only 1 left!

0

46

Gravely 58902200

PTO Assembly-PM 400

Note: Contains Items 4 - 36

$

$

Not available

47

Gravely 58903100

PTO Clutch Service Kit

$685.99

$

Usually ships in 4-12 days

0

48

Gravely 09091951

Bracket, PTO

$5.99

$

Usually ships in 4-12 days

0

49

Gravely 06223900

Bolt, Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

50

Gravely 06430200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

51

Gravely 05959500

Bolt-Hex .38-16 x 3.75 Grade 5
(Superseded to 05902025)

$3.49

$

Usually ships in 4-12 days

0
