989306 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) Gear Shift Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

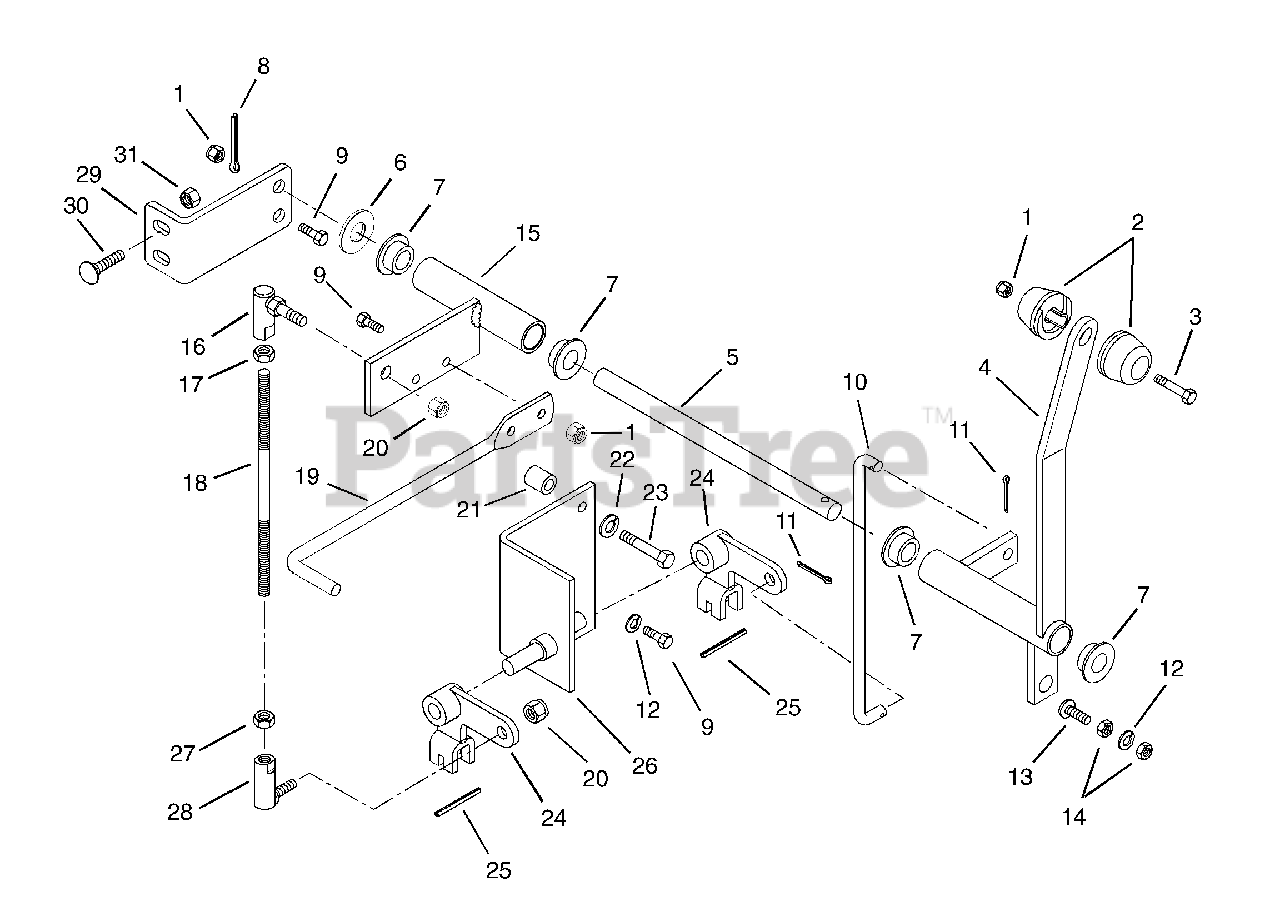

Gear Shift Parts Diagram

  • Title

1

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 041941

Knob, Control
(Superseded to 07527100)

$

$

Not available

3

Gravely 05952500

Bolt-Hex .25-20 x 1.50 Grade 5
(Superseded to 05901739)

$1.49

$

In Stock, Qty 16

0

4

Gravely 09090751

Control, Hi-Lo

$

$

Not available

5

Gravely 09090500

Shaft, Control

$

$

Not available

6

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 034738

Bushing-Flange .515 x .750 x .745 x 1.00
(Superseded to 05521100)

$2.49

$

In Stock, only 3 left!

0

8

Gravely 103422

Pin-Cotter .250 x 2.00
(Superseded to 06713100)

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 05946800

Bolt-Hex .25-20 x .875
(Superseded to 05901716)

$0.99

$

In Stock, Qty 19

0

10

Gravely 09090900

Rod, Hi-Lo

$

$

Not available

11

Gravely 06707000

Pin-Cotter .09 x .75
(Superseded to 121224)

$0.99

$

Usually ships in 4-12 days

0

12

Gravely 06308400

Washer-Locking .25 X .062
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 454480

Screw-Machine .25-20 x 1.25
(Superseded to 06114200)

$

$

Not available

14

Gravely 120375

Nut-Hex .250-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

15

Gravely 09090651

Weldment, Differential Lock Control

$

$

Not available

16

Gravely 021084

Joint, Steering Ball
(Superseded to 02917100)

$23.99

$

In Stock, Qty 6

0

17

Gravely 06529500

Nut-Hex .375-24
(Superseded to 06500939)

$1.99

$

Usually ships in 4-12 days

0

18

Gravely 051840

Rod, Lock Control
(Superseded to 09030500)

$

$

Not available

19

Gravely 051892

Bar, Foot
(Superseded to 09030600)

$

$

Not available

20

Gravely 06538800

Nut-Locking-Nylon .38-24

$1.99

$

In Stock, only 4 left!

0

21

Gravely 038696

Bushing-Sleeve .407 x .625 x .750
(Superseded to 05525700)

$7.49

$

In Stock, only 1 left!

0

22

Gravely 06308600

Washer-Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 05957200

Bolt-Hex .31-18 x 2.00 Grade 5
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 044559

Lever, Hi-Lo
(Superseded to 08952300)

$

$

Not available

25

Gravely 412281

Pin-Roll .250 x 1.000
(Superseded to 05808400)

$3.99

$

Usually ships in 4-12 days

0

26

Gravely 051813

Bracket, Shift
(Superseded to 09007300)

$

$

Not available

27

Gravely 06537400

Nut-Jam .38-24 Left Hand
(Superseded to 06500924)

$3.99

$

Usually ships in 4-12 days

0

28

Gravely 03562900

Ball Joint-LH

$45.99

$

Usually ships in 4-12 days

0

29

Gravely 09090853

Bracket, Angle

$

$

Not available

30

Gravely 06215700

Bolt, Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

31

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0
