989306 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) Direction Control Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

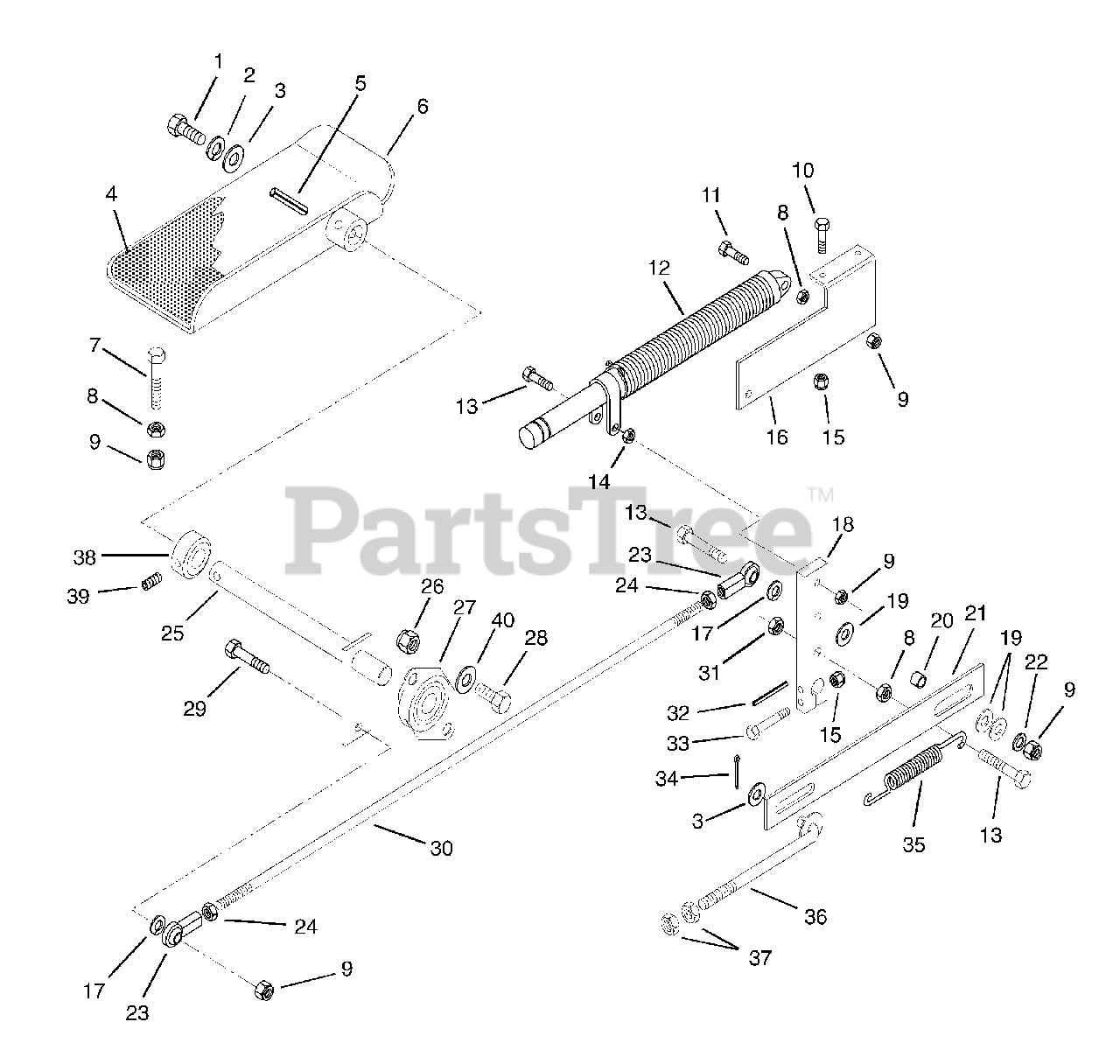

Direction Control Parts Diagram

  • Title

1

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 06308800

Washer-Lock .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 09094200

Cover, Large Foot-board

$

$

Not available

5

Gravely 05800300

Pin-Roll .188 x 1.25

$0.99

$

In Stock, Qty 20+

0

6

Gravely 09092951

Weldment, Foot Control Lever

$

$

Not available

7

Gravely 05952600

Bolt-Hex .31-18 x 2.50 Grade 5
(Superseded to 05901912)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06529200

Nut-Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

9

Gravely 06529800

Nut-Locking-Nylon .312-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 05957400

Bolt-Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

12

Gravely 050131

Damper
(Superseded to 08994400)

$195.99

$

Usually ships in 4-12 days

0

13

Gravely 05957200

Bolt-Hex .31-18 x 2.00 Grade 5
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06536100

Nut-Jam .312-18
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 050531

Bracket, Damper
(Superseded to 08997500)

$

$

Not available

17

Gravely 06308600

Washer-Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 050532

Arm, Pump
(Superseded to 08997600)

$

$

Not available

19

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 05514800

Bushing-Flange .312 x .500 x .344 x .880

$2.49

$

In Stock, only 3 left!

0

21

Gravely 046170

Strap, Neutral Detent
(Superseded to 08974600)

$

$

Not available

22

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 045002

Rod End, 5/16" Female
(Superseded to 03787100)

$12.99

$

In Stock, only 2 left!

0

24

Gravely 06534700

Nut-Jam .375-24
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0

25

Gravely 09070100

Weldment, Control

$

$

Not available

26

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 05402500

Bearing-Flange .751 x 2 Holes x .81

$23.99

$

Usually ships in 4-12 days

0

28

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 05947500

Bolt-Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

30

Gravely 09092100

Rod, Speed Control

$

$

Not available

31

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 412281

Pin-Roll .250 x 1.000
(Superseded to 05808400)

$3.99

$

Usually ships in 4-12 days

0

33

Gravely 05964700

Bolt-Hex .25-20 x 1.75 Grade 5
(Superseded to 05901935)

$2.49

$

In Stock, only 1 left!

0

34

Gravely 06706900

Pin-Cotter .09 x .75

$0.99

$

In Stock, Qty 10

0

35

Gravely 015255

Spring-Tension .091 x .500 x 5.50
(Superseded to 08327500)

$

$

Not available

36

Gravely 044492

Weldment, Detent Rod
(Superseded to 08950900)

$

$

Not available

37

Gravely 06534700

Nut - Jam .38-24
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0

38

Gravely 05424500

Bearing Flange Locking Collar .75 x 1.85

$

$

Not available

39

Gravely 06000800

Set Screw-Socket Head Cup Point .25-20 x .38

$

$

Not available

40

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0
