989306 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) Cooling System Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

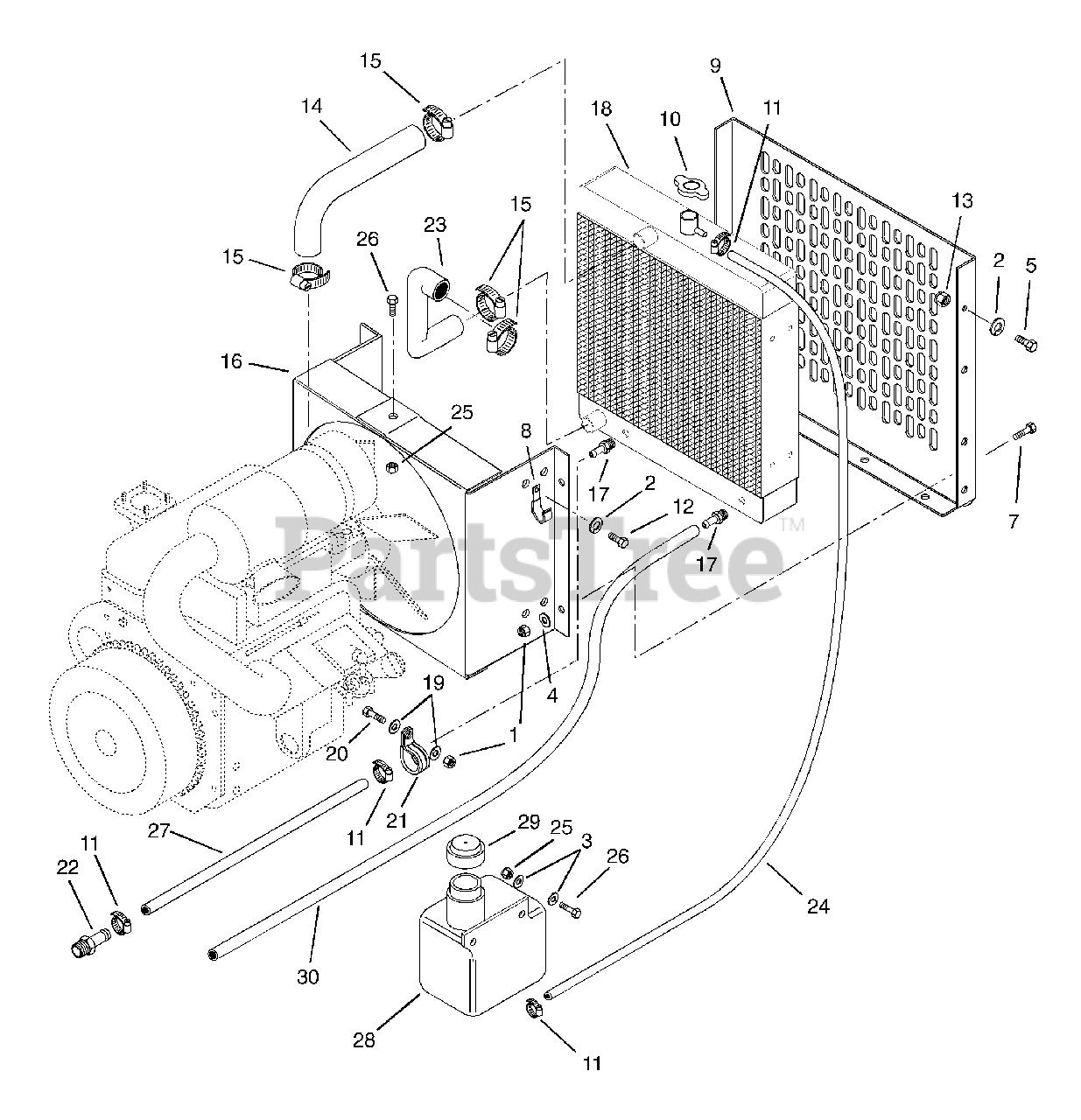

Cooling System Parts Diagram

  • Title

1

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 06308600

Washer-Lock .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 05947100

Bolt-Hex .50-13 x 1.00 Grade 5
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

6

Gravely 05962000

Bolt-Hex .50-13 x 1.50 Grade 5
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

7

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06916000

J-Clamp

$2.49

$

Usually ships in 4-12 days

0

9

Gravely 09086551

Mount, Radiator

$

$

Not available

10

Gravely 046291

Cap, Radiator
(Superseded to 08977200)

$

$

Not available

11

Gravely 032045

Hose Clamp
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

12

Gravely 05947200

Bolt-Hex .31-18 x .50 Grade 5
(Superseded to 05901904)

$1.49

$

In Stock, Qty 13

0

13

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

14

Gravely 09046700

Hose, Radiator Upper

$

$

Not available

15

Gravely 046365

Clamp-Hose 1.50 x .81 x 1.42
(Superseded to 06922200)

$5.99

$

Usually ships in 4-12 days

0

16

Gravely 09086451

Weldment, Fan Cover

$

$

Not available

17

Gravely 049257

Adapter .38 Male Pipe to .38 Tube
(Superseded to 07020200)

$

$

Not available

18

Gravely 09058900

Radiator

$

$

Not available

19

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 050394

Clamp, Cushioned Steel
(Superseded to 06908200)

$5.99

$

Usually ships in 4-12 days

0

22

Gravely 045227

Fitting-Adapter .562-18
(Superseded to 07019600)

$

$

Not available

23

Gravely 09044700

Hose, Lower Radiator

$

$

Not available

24

Gravely 00922600

Hose, 5/16" ID

$

$

Not available

25

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 09083500

Hose, 3/8" x 42"

$

$

Not available

28

Gravely 044385

Tank, Plastic 1.5 Quart (Coolant)
(Superseded to 09032400)

Note: (Coolant)

$

$

Not available

29

Gravely 045243

Cap, 1-5/8 Vented
(Superseded to 08967800)

$

$

Not available

30

Gravely 09083300

Hose, Return 3/8" ID x 52"

$

$

Not available
