989305 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) WEIGHT TRANSFER KIT Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

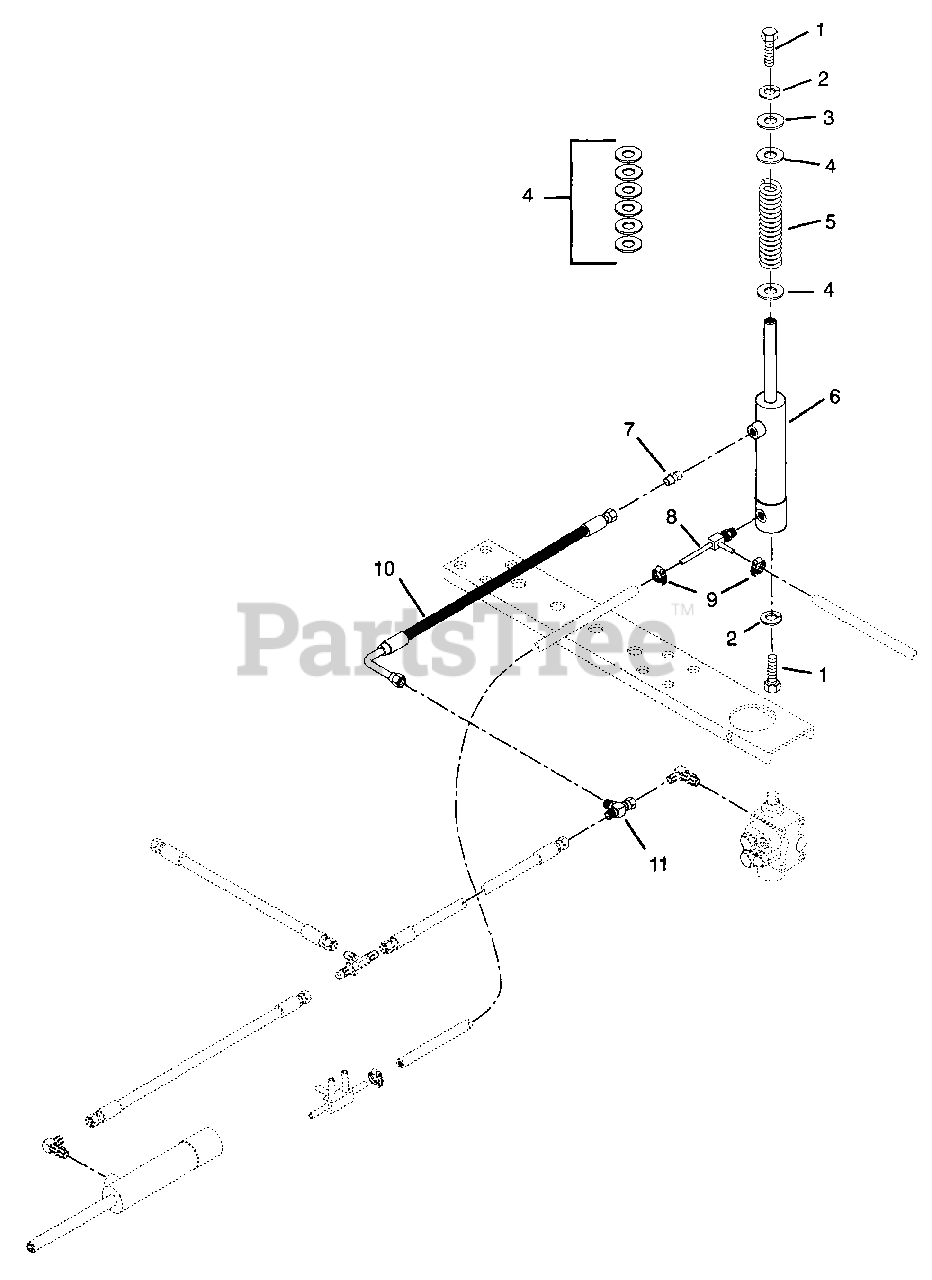

WEIGHT TRANSFER KIT Parts Diagram

  • Title

1

Gravely 455025

Bolt-Hex .50-20 x 1.00 Grade 8
(Superseded to 05940800)

$

$

Not available

2

Gravely 120384

Washer-Lock .50 Reg.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

3

Gravely 415543

Washer-Flat-Steel .531 x 1.250 x .100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

4

Gravely 035640

Washer-Flat-Steel .700 x 1.470 x .134
(Superseded to 06427600)

$5.99

$

In Stock, only 1 left!

0

5

Gravely 047483

Spring, Compression .207 x 1.25 x 6
(Superseded to 08343100)

$

$

Not available

6

Gravely 047482

Cylinder, Lift Assist
(Superseded to 08982200)

$

$

Not available

7

Gravely 019167

Adapter-Pipe .56-18 "O" Ring to .56-18
(Superseded to 07017500)

$11.99

$

In Stock, only 2 left!

0

8

Gravely 047549

Adapter-Barb tee .38 to .56-18 w/ "O" Ring
(Superseded to 07019400)

$

$

Not available

9

Gravely 032045

Hose Clamp
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

10

Gravely 047304

Hose, PSU to Tank
(Superseded to 08981200)

$

$

Not available

11

Gravely 047657

Adapter-Pipe .56-18 to .56-18
(Superseded to 07019500)

$

$

Not available
