989304 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) STEERING AXLE ASSEMBLY Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

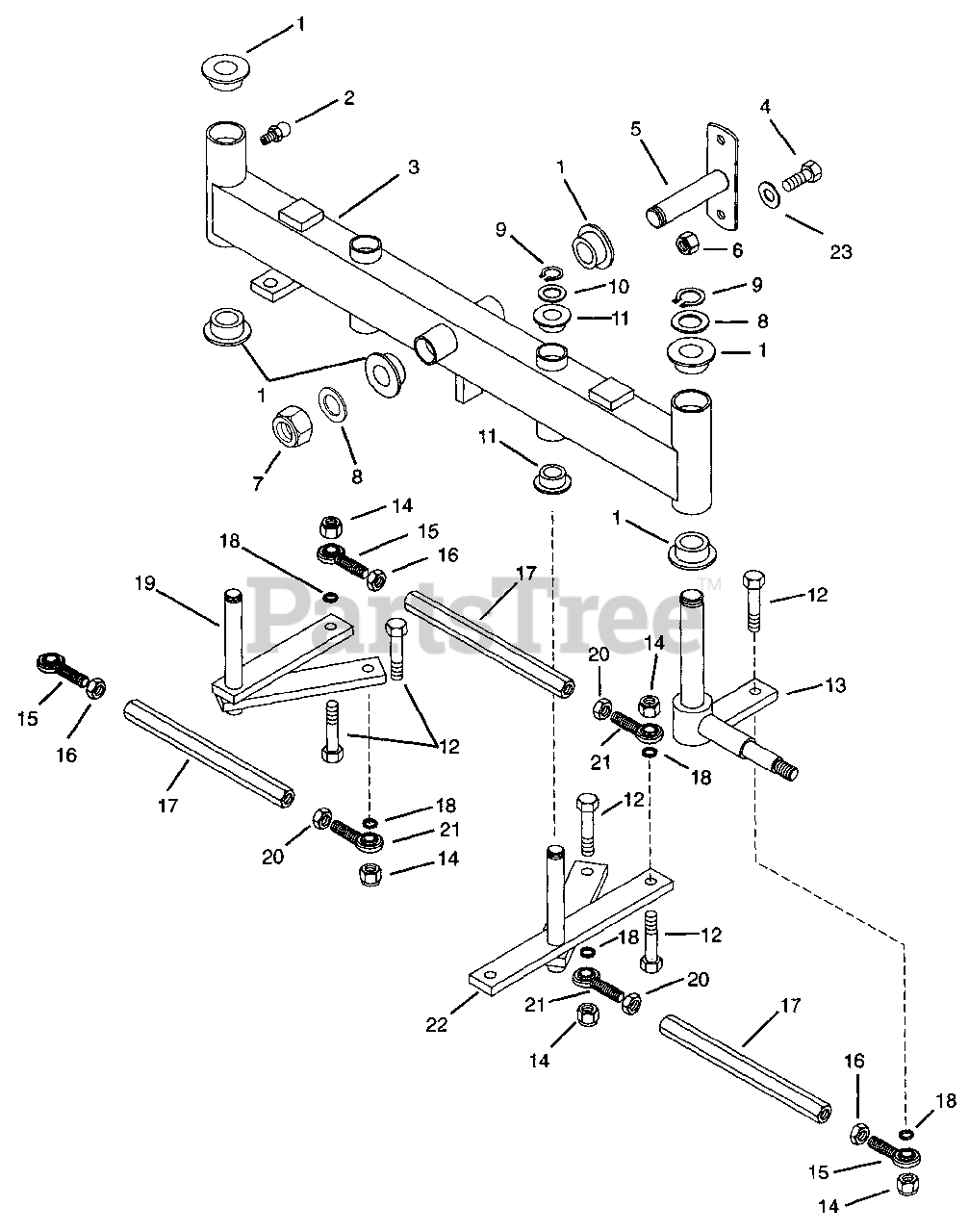

STEERING AXLE ASSEMBLY Parts Diagram

  • Title
1

Gravely 018355

Bushing-Flange 1.020 x 1.385 x .75 x 1.75
(Superseded to 05520100)

$11.99

$

In Stock, Qty 18

0

2

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

3

Gravely 044412

Weldment, Axle
(Superseded to 08949400)

$

$

Not available

4

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 09080700

Weldment, Axle Pin

$

$

Not available

6

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06538400

Nut-Locking 1.0-14
(Superseded to 00181818)

$

$

Not available

8

Gravely 06436300

Washer-Flat-Steel 1.010 X 1.505 X .062
(Superseded to 06401132)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 026300

Ring-Retaining-External .689 x .077
(Superseded to 05714600)

$2.49

$

In Stock, Qty 5

0

10

Gravely 011223

Bearing-Needle-Thrust .752 x 1.24 x .031
(Superseded to 06413400)

$3.49

$

In Stock, only 2 left!

0

11

Gravely 010174

Bushing-Flange .762 x 1.0 x .580 x 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

12

Gravely 05959700

Bolt-Hex .50-13 x 2.00 Grade 5
(Superseded to 05901929)

$

$

Not available

13

Gravely 049752

Weldment, Kingpin Left Hand
(Superseded to 58903900)

$

$

Not available

13

Gravely 049753

Weldment, Kingpin Right Hand
(Superseded to 58903800)

$

$

Not available

14

Gravely 06535300

Nut-Locking-Center .62-11

$2.99

$

Usually ships in 4-12 days

0

15

Gravely 044950

Assembly, Rod End
(Superseded to 08959600)

Note: (Right Hand)

$38.99

$

Usually ships in 4-12 days

0

16

Gravely 06539500

Nut-Jam .50-20 Grade 2

$2.49

$

Usually ships in 4-12 days

0

17

Gravely 051085

Rod, Tie
(Superseded to 09002400)

$

$

Not available

18

Gravely 046192

Spacer .520 x .625 x .125
(Superseded to 08974800)

$21.99

$

In Stock, only 1 left!

0

19

Gravely 044422

Weldment, Steering Idler
(Superseded to 08950000)

$

$

Not available

20

Gravely 06538300

Nut-Jam .50-20 Left Hand Grade 2

$

$

Not available

21

Gravely 051086

Assembly, Rod End Left Hand
(Superseded to 09002500)

$

$

Not available

22

Gravely 044423

Weldment, Steering Arm
(Superseded to 08950100)

$

$

Not available

23

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0
