989302 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) SEAT AND DECK ASSEMBLY Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

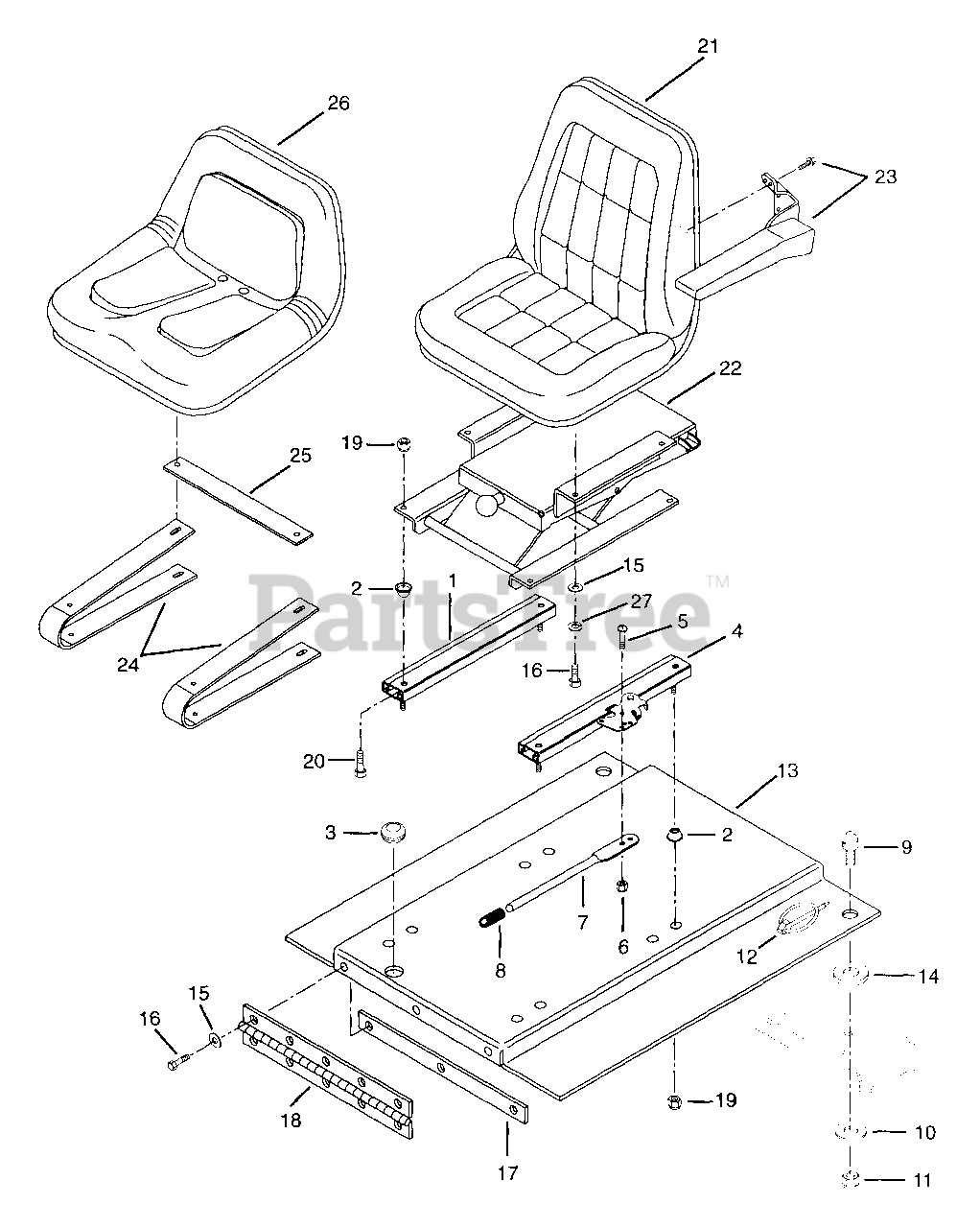

SEAT AND DECK ASSEMBLY Parts Diagram

  • Title

1

Gravely 035642

Adjuster, Seat
(Superseded to 03600800)

$104.99

$

Usually ships in 4-12 days

0

2

Gravely 035670

Seat Slide Spacer
(Superseded to 03418300)

$4.49

$

Usually ships in 4-12 days

0

3

Gravely 045290

Grommet 75 x 1.06 x 1.38
(Superseded to 07530600)

$2.49

$

Usually ships in 4-12 days

0

4

Gravely 035641

Adjuster, Seat w/Latch
(Superseded to 03600800)

$104.99

$

Usually ships in 4-12 days

0

5

Gravely 159929

Screw-Machine 10-24 x .625
(Superseded to 06111100)

$0.99

$

In Stock, Qty 12

0

6

Gravely 190254

Nut-Locking 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 039063

Seat Slide Handle
(Superseded to 03416500)

$

$

Not available

8

Gravely 043192

Tip-Brake Lock Lever
(Superseded to 07503800)

$1.49

$

In Stock, only 4 left!

0

9

Gravely 045148

Pin, Catch
(Superseded to 08964800)

$

$

Not available

10

Gravely 120396

Washer-Flat-Steel .531 x 1.062 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 435507

Nut-Locking-Nylon .50-13 Grade 5
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

12

Gravely 011902

Pin-Klik .25 x 1.75
(Superseded to 07015400)

$5.99

$

In Stock, only 1 left!

0

13

Gravely 045117

Plate, Deck
(Superseded to 08963900)

$

$

Not available

14

Gravely 044476

Washer-Snub-Steel .53 x 2.38 x .125 (989300,301)
(Superseded to 06428100)

Note: (989300,301)

$

$

Not available

15

Gravely 120393

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 120393

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

Note: With Seat Kit

$0.99

$

In Stock, Qty 20+

0

16

Gravely 180077

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 180077

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

Note: With Seat Kit

$1.49

$

In Stock, Qty 20+

0

17

Gravely 044570

Plate, Clamping
(Superseded to 01539100)

$

$

Not available

18

Gravely 039090

Hinge
(Superseded to 03102800)

$

$

Not available

19

Gravely 419455

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 419455

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

Note: With Seat Kit

$0.99

$

In Stock, Qty 20+

0

20

Gravely 180082

Bolt-Hex .31-18 x 1.38
(Superseded to 05934500)

$

$

Not available

21

Gravely 046220

Seat, Pro Master
(Superseded to 08975800)

Note: With Kit 048577

$283.99

$

Usually ships in 4-12 days

0

22

Gravely 045230

Seat, Suspension
(Superseded to 08967500)

Note: With Kit 048577

$

$

Not available

23

Gravely 044143

Kit-Pro Master Arm Rest
(Superseded to 78901400)

$

$

Not available

24

Gravely 047528

Spring, Seat
(Superseded to 03486851)

Note: With Kit 051546

$

$

Not available

25

Gravely 09004000

Plate, Control Shaft
(Superseded to 09004051)

Note: With Kit 051546

$

$

Not available

26

Gravely 09112400

Seat, V-560 High Back

Note: With Kit 051546

$

$

Not available

27

Gravely 180079

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

Note: With Seat Kit

$1.49

$

In Stock, Qty 20+

0

Gravely 048577

Kit, Deluxe Seat
(Superseded to 78703200)

Note: As Required

$

$

Not available

Gravely 044143

Kit, Pro Master Arm Rest
(Superseded to 78901400)

Note: As Required

$

$

Not available

Gravely 051546

Kit, High Back Seat
(Superseded to 78901300)

Note: As Required

$

$

Not available

Gravely 044144

Arm Rest Kit - G Series

Note: As Required

$

$

Not available

Gravely 787078

Arm Rest Kit

Note: As Required

$

$

Not available
