989301 (PM 400) - Gravely Pro-Master Zero-Turn Mower, 31hp Yanmar (SN: 000101 & Above) STEERING AXLE ASSEMBLY Parts Diagram

Pro-Master Zero-Turn Mower, 31hp Yanmar

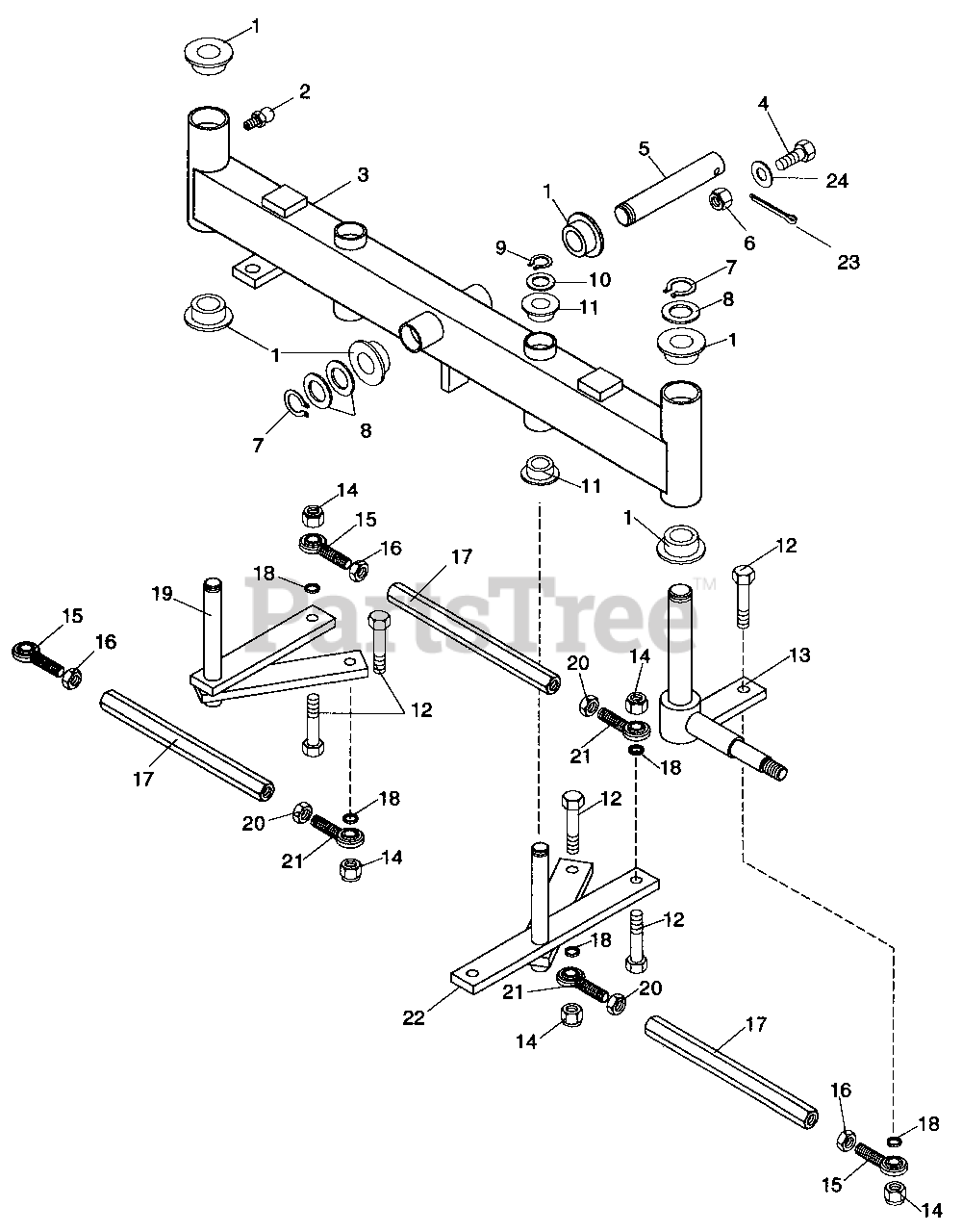

STEERING AXLE ASSEMBLY Parts Diagram

  • Title
1

Gravely 018355

BSHG-FLG 1.020 X 1.385 X .75 X 1.75 NY
(Superseded to 05520100)

$11.99

$

In Stock, Qty 18

0

2

Gravely 411027

FTG, LUBE; .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

3

Gravely 044412

WLDMT, AXLE
(Superseded to 08949400)

$

$

Not available

4

Gravely 180122

BLT-HEX .38-16 X 1.00 PL GR 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 053030

SHAFT, PIVOT
(Superseded to 09016500)

$

$

Not available

6

Gravely 456004

NUT-LK-NYL .375-16 PL
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

7

Gravely 017980

RG-RTNG-EXT .906 X .078
(Superseded to 05707300)

$2.99

$

In Stock, Qty 9

0

8

Gravely 019340

BRG-NEEDLE .688 X .876 X .63
(Superseded to 06435300)

$4.99

$

In Stock, only 3 left!

0

9

Gravely 026300

RG-RTNG-EXT .689 X .077
(Superseded to 05714600)

$2.49

$

In Stock, Qty 5

0

10

Gravely 011223

BRG-N-THRST .752 X 1.24 X .031
(Superseded to 06413400)

$3.49

$

In Stock, only 2 left!

0

11

Gravely 010174

BSHG-FLG .762 X 1.0 X .580 X 1.48 NY
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

12

Gravely 180181

BLT-HEX .50-13 X 2.00 PL GR 5
(Superseded to 05901929)

$

$

Not available

13

Gravely 049752

WLDMT, KINGPIN L.H.
(Superseded to 58903900)

$

$

Not available

13

Gravely 049753

WLDMT, KINGPIN R.H.
(Superseded to 58903800)

$

$

Not available

14

Gravely 435507

NUT-LK-NYL .50-13 PL
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

15

Gravely 044950

ASM, ROD END(R.H.)
(Superseded to 08959600)

Note: (R.H.)

$38.99

$

Usually ships in 4-12 days

0

16

Gravely 124934

NUT-JAM .50-20 PL
(Superseded to 06539500)

$2.49

$

Usually ships in 4-12 days

0

17

Gravely 051085

ROD TIE
(Superseded to 09002400)

$

$

Not available

18

Gravely 046192

BUSH., S .520 X .625 X .125 ST
(Superseded to 08974800)

$21.99

$

In Stock, only 1 left!

0

19

Gravely 044422

WLDMT, STEERING IDLER
(Superseded to 08950000)

$

$

Not available

20

Gravely 428172

NUT-JAM .50-20 LH THD PL
(Superseded to 06538300)

$

$

Not available

21

Gravely 051086

ASM, ROD END L.H.
(Superseded to 09002500)

$

$

Not available

22

Gravely 044423

WLDMT, STEERING ARM
(Superseded to 08950100)

$

$

Not available

23

Gravely 067050

PIN-COTR .250 X 2.00
(Superseded to 06713100)

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 064127

WSHR-FL-STL .281 X .62 X .065 PL
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0
