989301 (PM 400) - Gravely Pro-Master Zero-Turn Mower, 31hp Yanmar (SN: 000101 & Above) PTO CLUTCH Parts Diagram

Pro-Master Zero-Turn Mower, 31hp Yanmar

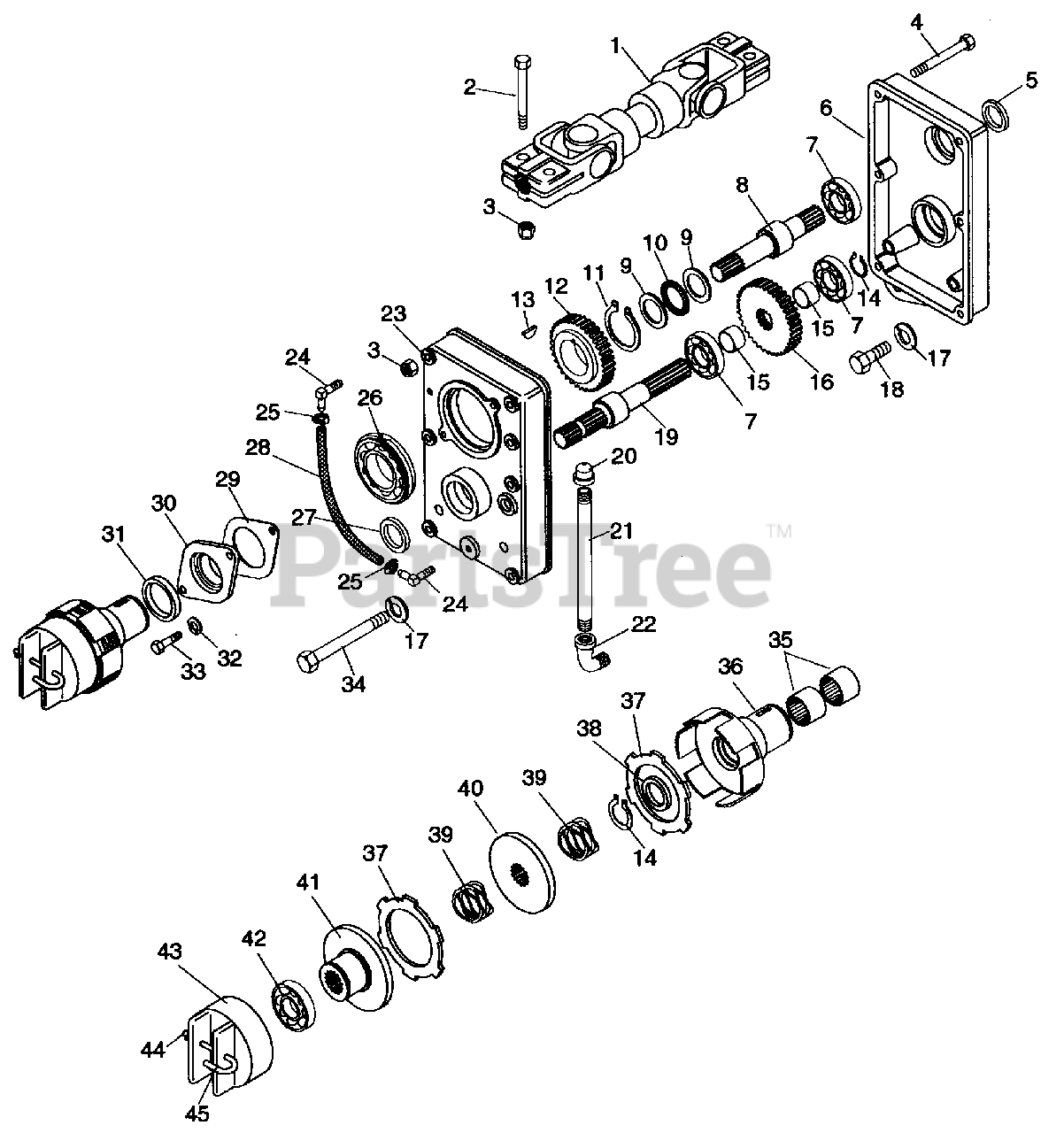

PTO CLUTCH Parts Diagram

  • Title
1

Gravely 044482

ASM, PTO U-JOINT
(Superseded to 09018500)

$

$

Not available

2

Gravely 180128

BLT-HEX .38-16 X 1.75 PL GR 5
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 456004

NUT-LK-NYL .375-16 PL
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

4

Gravely 189305

BLT-HEX .38-16 X 3.50 PL GR 5
(Superseded to 05901818)

$3.99

$

In Stock, Qty 20+

0

5

Gravely 045133

SEAL-LIP .984 X 1.6 X .25
(Superseded to 05617400)

$26.99

$

Usually ships in 4-12 days

0

6

Gravely 044900

CASE, PTO
(Superseded to 08957900)

$640.99

$

Usually ships in 4-12 days

0

7

Gravely 021929

BRG-BALL .984 X 2.047 X .591
(Superseded to 05422200)

$15.99

$

Usually ships in 4-12 days

0

8

Gravely 045110

SHFT, PTO INPUT(UPPER)
(Superseded to 08963500)

Note: (UPPER)

$

$

Not available

9

Gravely 017959

WSHR-THRST 1.55 X 1.002 X .093
(Superseded to 06426500)

$18.99

$

In Stock, only 2 left!

0

10

Gravely 011225

BRG-N-THRST 1.0 X 1.55 X .078
(Superseded to 05427900)

$9.49

$

Usually ships in 4-12 days

0

11

Gravely 017919

RG-RTNG-EXT 1.819 X .062
(Superseded to 05712100)

$3.49

$

Usually ships in 4-12 days

0

12

Gravely 048635

GR, PTO INPUT 10DP 41T
(Superseded to 08984900)

$

$

Not available

13

Gravely 124553

KEY, WDRF 1/4 X 1 HRD # 15
(Superseded to 06608900)

$3.99

$

In Stock, Qty 18

0

14

Gravely 017980

RG-RTNG-EXT .906 X .078
(Superseded to 05707300)

$2.99

$

In Stock, Qty 9

0

15

Gravely 045113

BUSH., S1.01 X 1.25 X .645 ST
(Superseded to 08963700)

$11.99

$

In Stock, only 1 left!

0

16

Gravely 048636

GR, PTO OUTPUT 10DP 45T
(Superseded to 08985000)

$180.99

$

Usually ships in 4-12 days

0

17

Gravely 120384

WSHR-LOCK .50 REG.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

18

Gravely 180177

BLT-HEX .50-13 X 1.50 PL GR 5
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

19

Gravely 045112

SHFT, PTO OUTPUT(LOWER)
(Superseded to 08963600)

Note: (LOWER)

$

$

Not available

20

Gravely 050476

CAP, PIPE 3/8
(Superseded to 08996100)

$

$

Not available

21

Gravely 070250

NIPPLE, PIPE .38 X 6.0 UNFIN STL
(Superseded to 07025000)

$

$

Not available

22

Gravely 070242

EL .38 X 90 STRT UNFIN MAL IR
(Superseded to 07024200)

$9.49

$

Usually ships in 4-12 days

0

23

Gravely 044901

COVER
(Superseded to 08958000)

$

$

Not available

24

Gravely 014745

EL, HOSE
(Superseded to 08900300)

$

$

Not available

25

Gravely 032045

HOSE CLAMP
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

26

Gravely 045118

BRG BALL 1.97 X 3.14 X .63
(Superseded to 05435400)

$

$

Not available

27

Gravely 045134

SEAL-LIP 1.25 X 1.75 X .25
(Superseded to 05617500)

$26.99

$

In Stock, only 1 left!

0

28

Gravely 050477

HOSE, 1/4 IN VINYL
(Superseded to 00918300)

$3.49

$

Usually ships in 4-12 days

0

29

Gravely 021528

GSKT, FRT PTO CAP
(Superseded to 08737300)

$5.99

$

Usually ships in 4-12 days

0

30

Gravely 045116

CAP, FRONT PTO
(Superseded to 08963800)

$122.99

$

Usually ships in 4-12 days

0

31

Gravely 017917

SEAL 2.250 X 3.002 X .375
(Superseded to 05614000)

$21.99

$

In Stock, only 1 left!

0

32

Gravely 120214

WSHR-LOCK .313 X .078 PL
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 180077

BLT-HEX .31-18 X .75 PL GR 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 189316

BLT-HEX .50-13 X 4.25
(Superseded to 05901906)

$4.99

$

In Stock, only 4 left!

0

35

Gravely 045121

BRG-ROLLER 1.0 X 1.312 X .75
(Superseded to 05425900)

$

$

Not available

36

Gravely 042631

HUB, PTO CLUTCH
(Superseded to 08943600)

$

$

Not available

37

Gravely 042634

DISC, CLUTCH
(Superseded to 08943700)

$68.99

$

In Stock, only 2 left!

0

38

Gravely 045132

SEAL-LIP 1.0 X 1.50 X .25
(Superseded to 05617300)

$15.99

$

Usually ships in 4-12 days

0

39

Gravely 050958

SPRG, WAVE
(Superseded to 08345200)

$13.99

$

In Stock, only 2 left!

0

40

Gravely 042636

PLT, CLUTCH
(Superseded to 08943800)

$

$

Not available

41

Gravely 042637

HUB, CLUTCH ACTUATING
(Superseded to 08943900)

$312.99

$

Usually ships in 4-12 days

0

42

Gravely 035330

BRG-BALL 1.57 X 3.15 X .71
(Superseded to 05420900)

$193.99

$

In Stock, only 3 left!

0

43

Gravely 034734

TRUNION, FWD-REV CLUTCH
(Superseded to 08911000)

$95.99

$

In Stock, only 4 left!

0

44

Gravely 121223

PIN-COTR .062 X .75 PL
(Superseded to 06707500)

$0.99

$

In Stock, only 2 left!

0

45

Gravely 035681

PIN, CLUTCH SPRING
(Superseded to 08654800)

$45.99

$

In Stock, only 1 left!

0
