989300 (PM 400) - Gravely Pro-Master Zero-Turn Mower, 31hp Yanmar (SN: 000101 & Above) ENGINE, FUEL AND EXHAUST Parts Diagram

Pro-Master Zero-Turn Mower, 31hp Yanmar

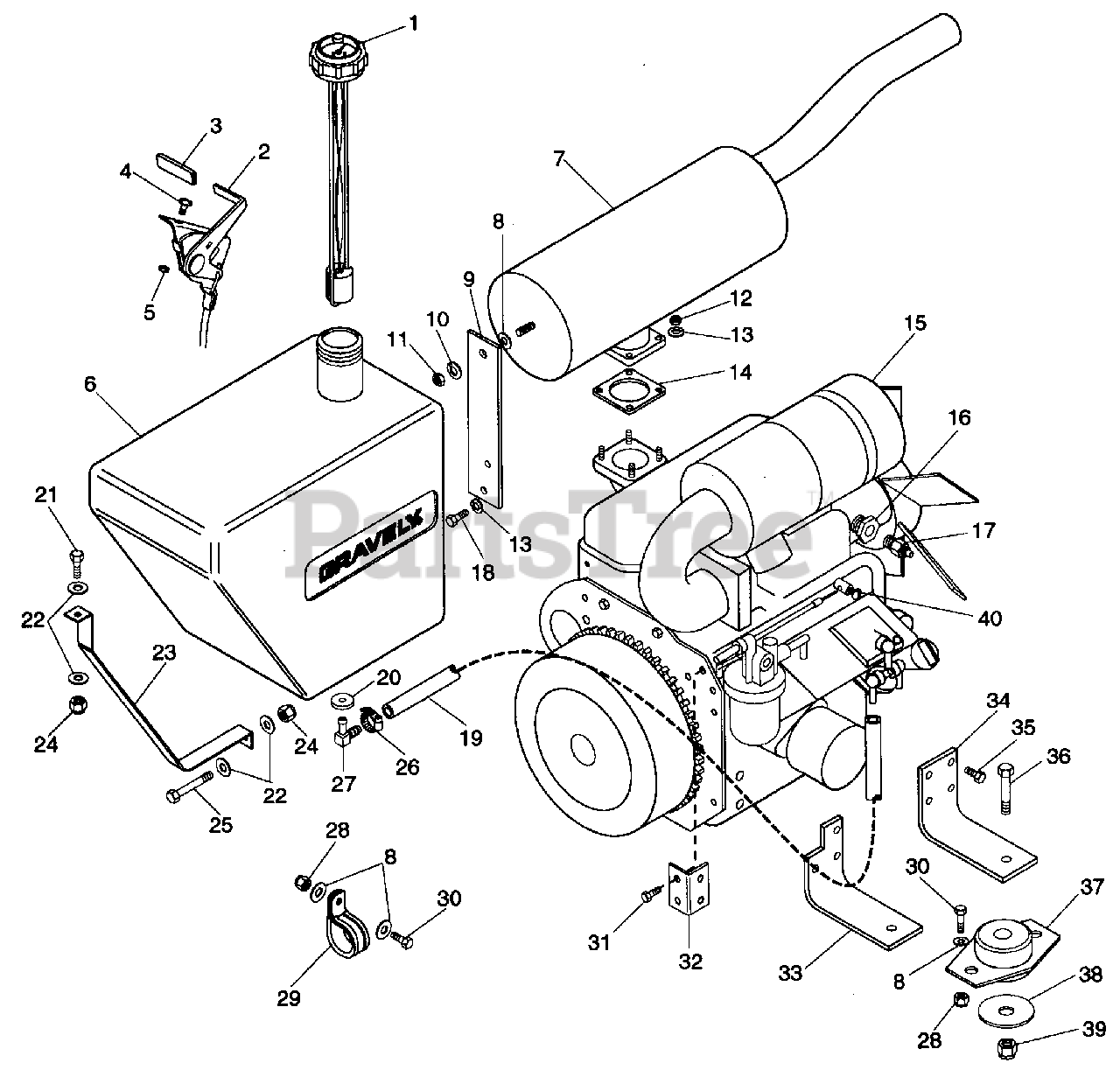

ENGINE, FUEL AND EXHAUST Parts Diagram

  • Title

1

Gravely 047615

GAUGE, FUEL
(Superseded to 08983200)

$47.99

$

Usually ships in 4-12 days

0

2

Gravely 069260

THROTTLE CABLE ASS'Y
(Superseded to 06926000)

$

$

Not available

3

Gravely 075215

GRIP
(Superseded to 07521500)

$

$

Not available

4

Gravely 160046

SCR-MACH 10-32 X .50 PH D
(Superseded to 06113300)

$2.49

$

Usually ships in 4-12 days

0

5

Gravely 065028

NUT-LK 10-32 NY PL
(Superseded to 06539200)

$1.99

$

Usually ships in 4-12 days

0

6

Gravely 050663

TANK, FUEL
(Superseded to 09033100)

$

$

Not available

7

Gravely 090406

MUFFLER, YANMAR
(Superseded to 09040600)

$

$

Not available

8

Gravely 120394

WSHR-FL-STL .406 X .812 X .065 PL
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 090408

BRACE, MUFFLER
(Superseded to 09040800)

$

$

Not available

10

Gravely 120382

WSHR-LOCK .375 X .094 MED PL
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 120377

NUT-HEX .375-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 046363

NUT-HEX M8 X 1.25 PL
(Superseded to 06538600)

$

$

Not available

13

Gravely 120214

WSHR-LOCK .313 X .078 PL
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 047853

GSKT, EXHAUST
(Superseded to 20875800)

$

$

Not available

15

Gravely 082409

ENGINE, YANMAR

$

$

Not available

16

Gravely 052611

ADPT, TEMPERATURE SENDER
(Superseded to 09010300)

$

$

Not available

17

Gravely 052610

SENDER, TEMPERATURE
(Superseded to 09010200)

$34.99

$

In Stock, only 1 left!

0

18

Gravely 046360

BLT-HEX M8 X 1.25 X 16MM PL
(Superseded to 05956300)

$

$

Not available

19

Gravely 021134

GAS LINE-BULK
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 050246

BUSHING
(Superseded to 07511400)

$3.49

$

In Stock, Qty 20+

0

21

Gravely 180087

BLT-HEX .31-18 X 2.00 PL GR 5
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 120393

WSHR-FL-STL .344 X .688 X .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 050664

STRAP, GAS TANK
(Superseded to 08998500)

$

$

Not available

24

Gravely 419455

NUT-LK-NYL .312-18 PL
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 180077

BLT-HEX .31-18 X .75 PL GR 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 032045

HOSE CLAMP
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

27

Gravely 050722

FTG-TANK 1.37 X .406 PL
(Superseded to 07023300)

$

$

Not available

28

Gravely 456004

NUT-LK-NYL .375-16 PL
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

29

Gravely 050395

CLAMP, STEEL 1.0
(Superseded to 06917900)

$14.99

$

Usually ships in 4-12 days

0

30

Gravely 180122

BLT, HEX .38-16 X 1.00 PL GR 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 046360

BLT-HEX M8-1.25 X 16MM PL
(Superseded to 05956300)

$

$

Not available

32

090404

BRACKET, CONTROL

$

$

Not available

33

Gravely 090401

MOUNT, ENGINE
(Superseded to 09040100)

$6.99

$

Usually ships in 4-12 days

0

34

Gravely 090409

MOUNT, ENGINE
(Superseded to 09040900)

$

$

Not available

35

Gravely 059464

BLT-HEX M12-1.75 X 25MM PL
(Superseded to 05946400)

$

$

Not available

36

Gravely 180188

BLT-HEX .50-13 X 2.75 PL GR 5
(Superseded to 05901720)

$4.99

$

Usually ships in 4-12 days

0

37

Gravely 044473

MOUNT, ENGINE
(Superseded to 07529700)

$

$

Not available

38

Gravely 044476

WSHR-SNUB-STL .53 X 2.38 X .125
(Superseded to 06428100)

$

$

Not available

39

Gravely 435507

NUT-LK-NYL .50-13 PL
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

40

Gravely 03604100

SWIVEL ASSY

$9.49

$

Usually ships in 4-12 days

0
