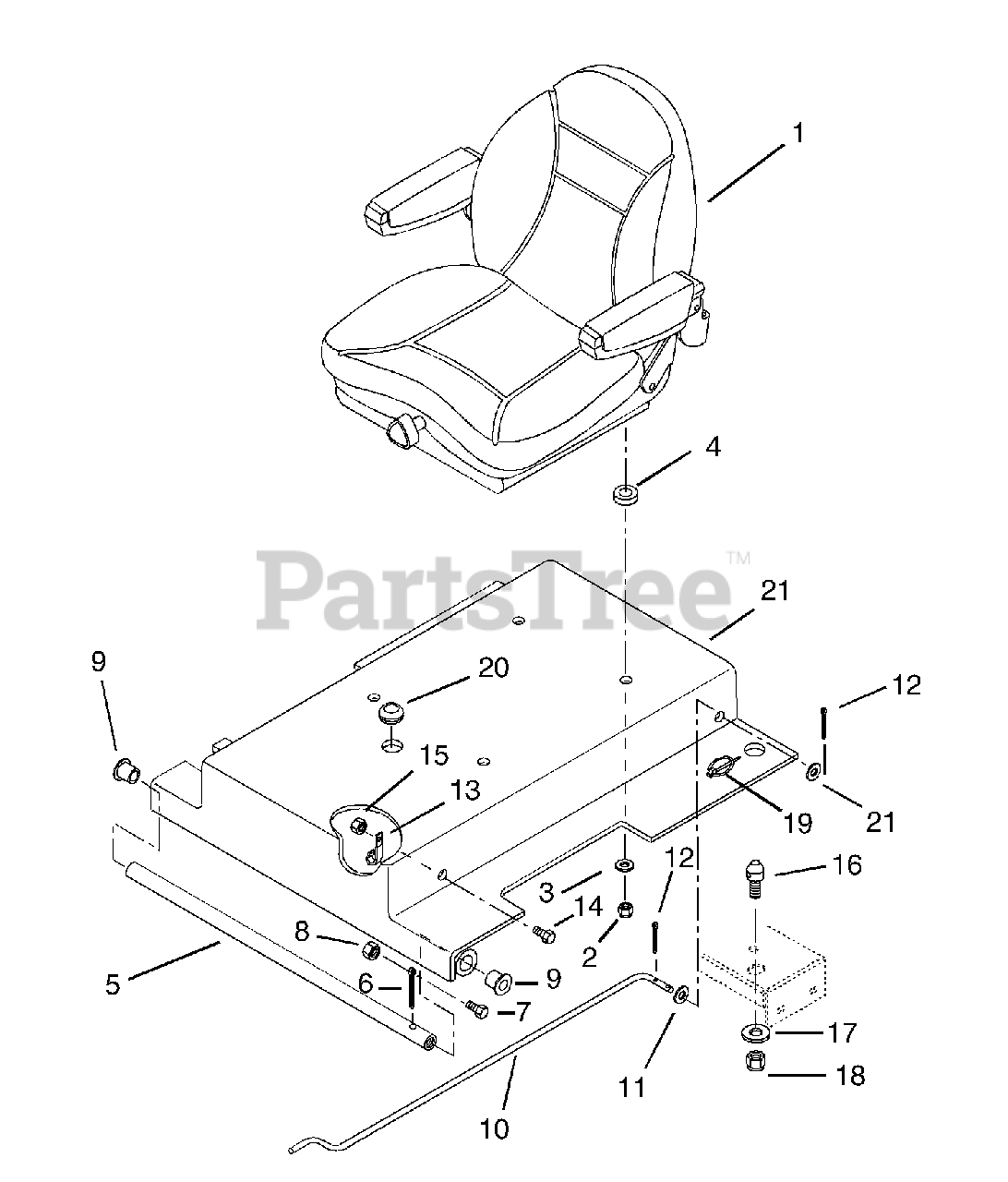

989057 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) Seat And Deck Assembly Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

Seat And Deck Assembly Parts Diagram

  • Title
1

Gravely 09230000

Seat, Suspension
(Superseded to 79207100)

$

$

Not available

2

Gravely 06538500

Nut-Locking-Center M8-1.25
(Superseded to 06541700)

$1.49

$

Usually ships in 4-12 days

0

3

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 039145

Bushing-Sleeve .377 x .624 x .235
(Superseded to 05508900)

$9.49

$

In Stock, only 1 left!

0

5

Gravely 08963100

Shaft, Control

$

$

Not available

6

Gravely 06713100

Pin, Cotter .25 x 2.00
(Superseded to 06700213)

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 05947700

Bolt-Hex .25-20 x 1.00 Grade 5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

8

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06521100

Bushing, Flange .515 x .750 x .745 x 1.00
(Superseded to 06538900)

$

$

Not available

10

Gravely 09029500

Rod, Stay

$

$

Not available

11

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06706900

Pin-Cotter .09 x .75

$0.99

$

In Stock, Qty 10

0

13

$3.49

$

In Stock, Qty 8

0

14

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 045148

Pin, Catch
(Superseded to 08964800)

$

$

Not available

17

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06536300

Nut-Locking-Nylon .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

19

Gravely 011902

Pin-Klik .25 x 1.75
(Superseded to 07015400)

$5.99

$

In Stock, only 1 left!

0

20

Gravely 045290

Grommet .75 x 1.06 x 1.38
(Superseded to 07530600)

$2.49

$

Usually ships in 4-12 days

0

21

Gravely 09091451

Weldment, Seat Support

$

$

Not available
