989057 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) Hood Assembly Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

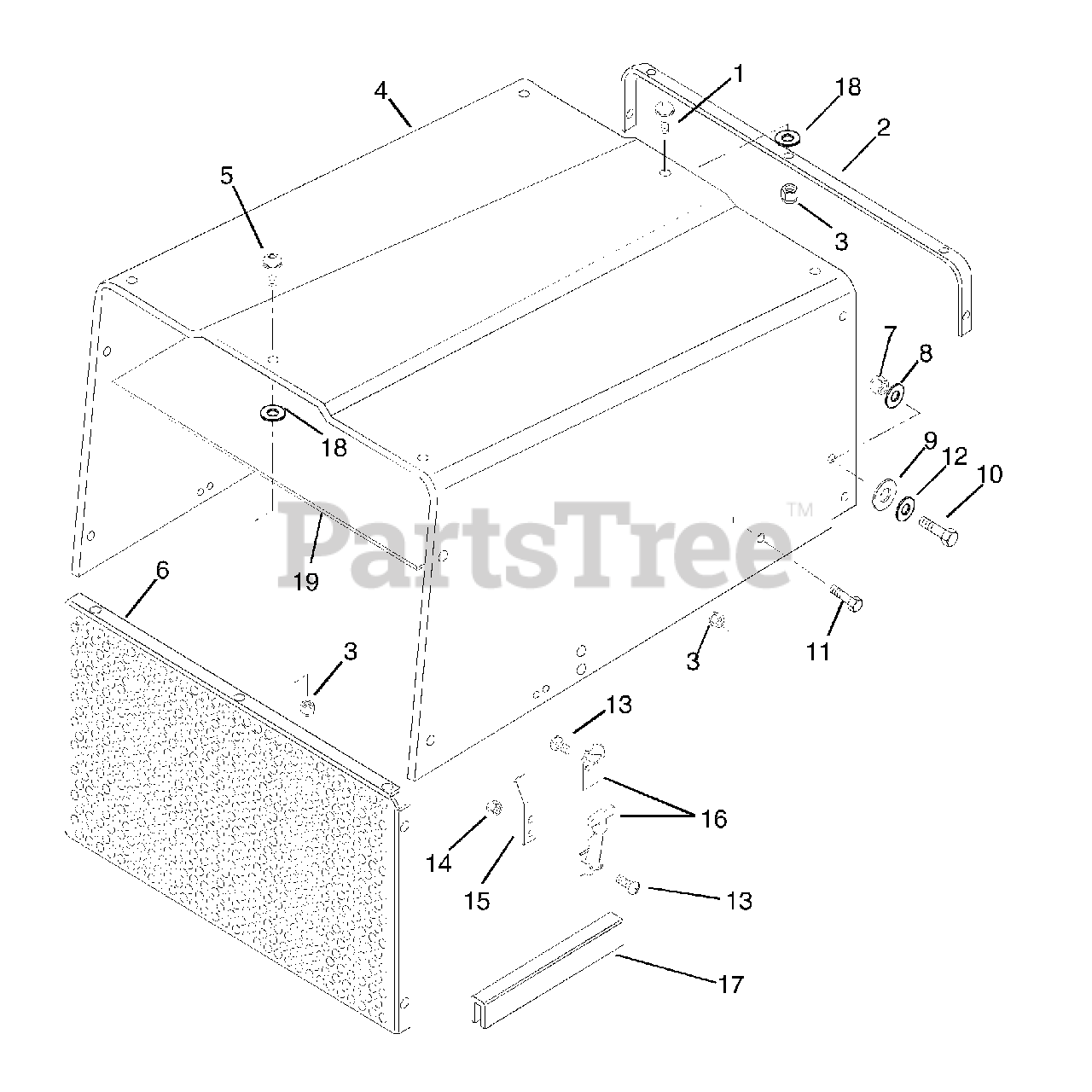

Hood Assembly Parts Diagram

  • Title

1

Gravely 06114400

Screw-Machine .25-20 X .75

$0.99

$

In Stock, Qty 10

0

2

Gravely 052991

Brace, Hood
(Superseded to 09013400)

$

$

Not available

3

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 09091253

Hood, Engine

$

$

Not available

5

Gravely 06114300

Screw-Machine .25-20 X .50

$2.49

$

Usually ships in 4-12 days

0

6

Gravely 09040500

Panel, Hood

$

$

Not available

7

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06433600

Washer-Flat-Nylon .375 X .75 X .060

$0.99

$

In Stock, Qty 11

0

10

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06443400

Washer-Flat Steel .380 x 1.50 x .125
(Superseded to 06401106)

$3.49

$

In Stock, Qty 10

0

13

Gravely 06116700

Screw-Machine 10-24 x .50
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06536000

Nut-Locking w/Insert 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 046295

Plate, Guide
(Superseded to 08977300)

$

$

Not available

16

Gravely 045554

Latch
(Superseded to 08969700)

$

$

Not available

17

Gravely 049767

Strip, Cowl
(Superseded to 00918200)

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 06439500

Washer-Flat-Steel .265 x .50 x .087
(Superseded to 06401120)

$1.49

$

Usually ships in 4-12 days

0

19

Gravely 09076600

Sound Pad

$

$

Not available
