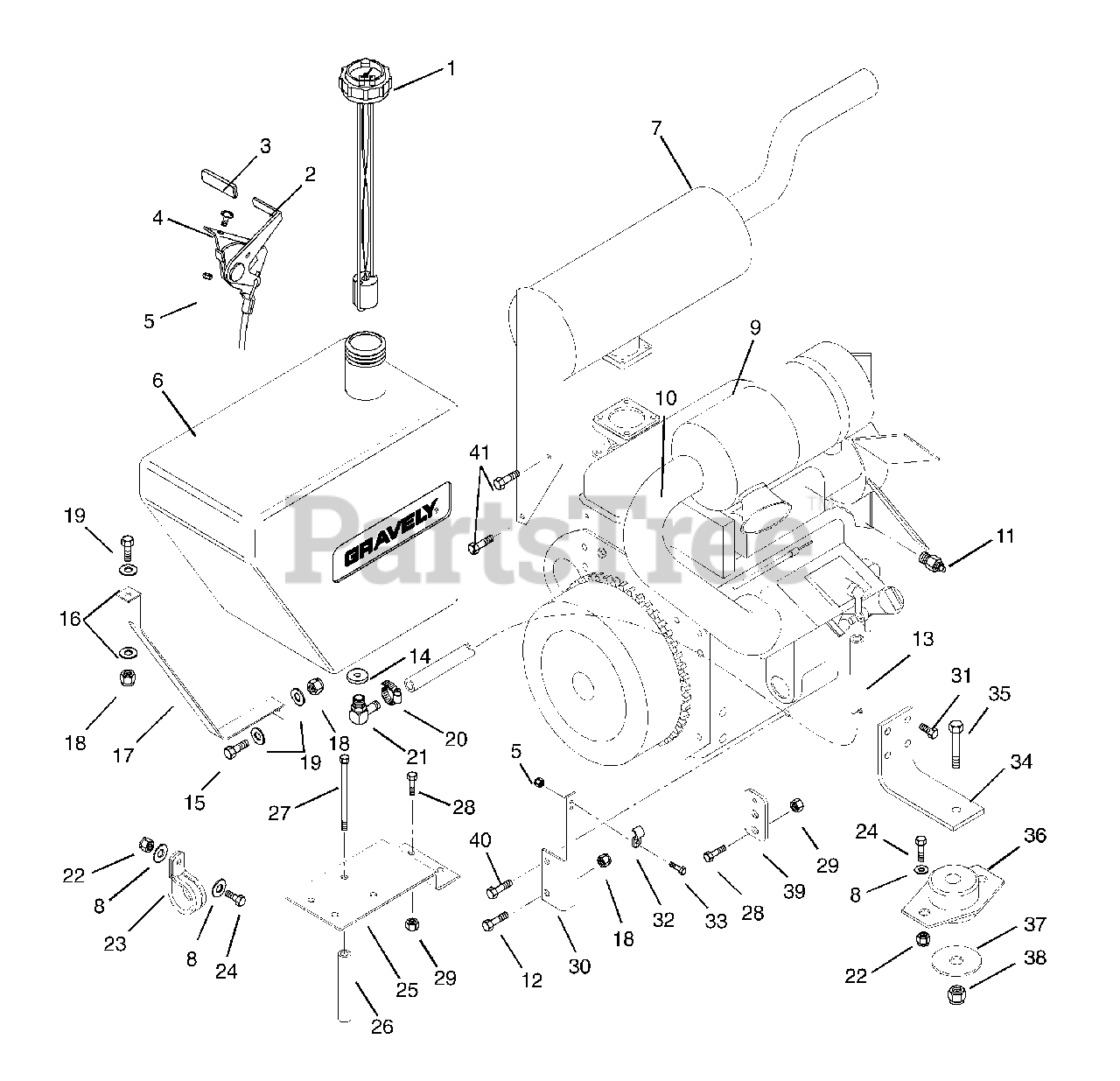

989057 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) Engine, Fuel And Exhaust Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

Engine, Fuel And Exhaust Parts Diagram

  • Title

1

Gravely 047615

Gauge, Fuel
(Superseded to 08983200)

$47.99

$

Usually ships in 4-12 days

0

2

Gravely 06937500

Throttle Cable Assembly

$

$

Not available

3

Gravely 07521500

Grip

$

$

Not available

4

Gravely 06116700

Screw-Machine 10-24 x .50
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06536000

Nut-Locking 10-24 w/Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 050663

Tank, Fuel
(Superseded to 09033100)

$

$

Not available

7

Gravely 09085900

Muffler, Kubota

$

$

Not available

8

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 08243700

Engine, Kubota V-1305-B1

Note: (Includes Items 9-12)

$

$

Not available

10

Gravely 09063000

Hose, Air Intake

$

$

Not available

11

Gravely 09061200

Sender, Temperature

$

$

Not available

12

Gravely 05947500

Bolt-Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, Qty 11

0

13

Gravely 021134

Gas Line-Bulk
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 050246

Bushing
(Superseded to 07511400)

$3.49

$

In Stock, Qty 20+

0

15

Gravely 05957200

Bolt-Hex .31-18 x 2.00 Grade 5
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 050664

Strap, Gas Tank
(Superseded to 08998500)

$

$

Not available

18

Gravely 419455

Nut-Locking-Nylon .31-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 05947500

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, Qty 11

0

20

Gravely 032045

Hose Clamp
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

21

Gravely 050722

Fitting-Tank 1.37 x .406
(Superseded to 07023300)

$

$

Not available

22

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 050395

Clamp, Steel 1.0
(Superseded to 06917900)

$14.99

$

Usually ships in 4-12 days

0

24

Gravely 06529800

Bolt-Hex .375-16 x 1.00 Grade 5
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 09045000

Bracket, Air Cleaner Mount

$

$

Not available

26

Gravely 09046400

Mount, Engine

$

$

Not available

27

Gravely 05961300

Bolt-Hex M8 - 1.25 x 120

$

$

Not available

28

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 09044900

Bracket, Throttle Cable

$

$

Not available

31

Gravely 05972800

Bolt-Hex M10-1.25 x 25

$

$

Not available

32

Gravely 045242

Clip Plated
(Superseded to 06928000)

$3.49

$

Usually ships in 4-12 days

0

33

Gravely 06116900

Screw-Machine 10-24 x .75
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

34

Gravely 09046600

Mount, Engine

$

$

Not available

35

Gravely 05925500

Bolt-Hex .50-13 x 2.75 Grade 5

$

$

Not available

36

Gravely 07528500

Mount, Engine Isolator

$

$

Not available

37

Gravely 044476

Washer-Snub-Steel .53 x 2.38 x .125
(Superseded to 06428100)

$

$

Not available

38

Gravely 435507

Nut-Locking-Nylon .50-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

39

Gravely 09063600

Clip, Throttle Cable

$

$

Not available

40

Gravely 05960500

Bolt-Hex M10 x 1.25 x 20

$3.49

$

Usually ships in 4-12 days

0

41

Gravely 05964900

Bolt-Hex M8 x 1.25 x 25 Grade 8

$2.49

$

Usually ships in 4-12 days

0

Gravely 21526000

Air Filter

$142.99

$

In Stock, only 1 left!

0

Gravely 21526100

Oil Filter

$22.99

$

Usually ships in 4-12 days

0

Gravely 21526200

Fuel Filter

$30.99

$

Usually ships in 4-12 days

0
