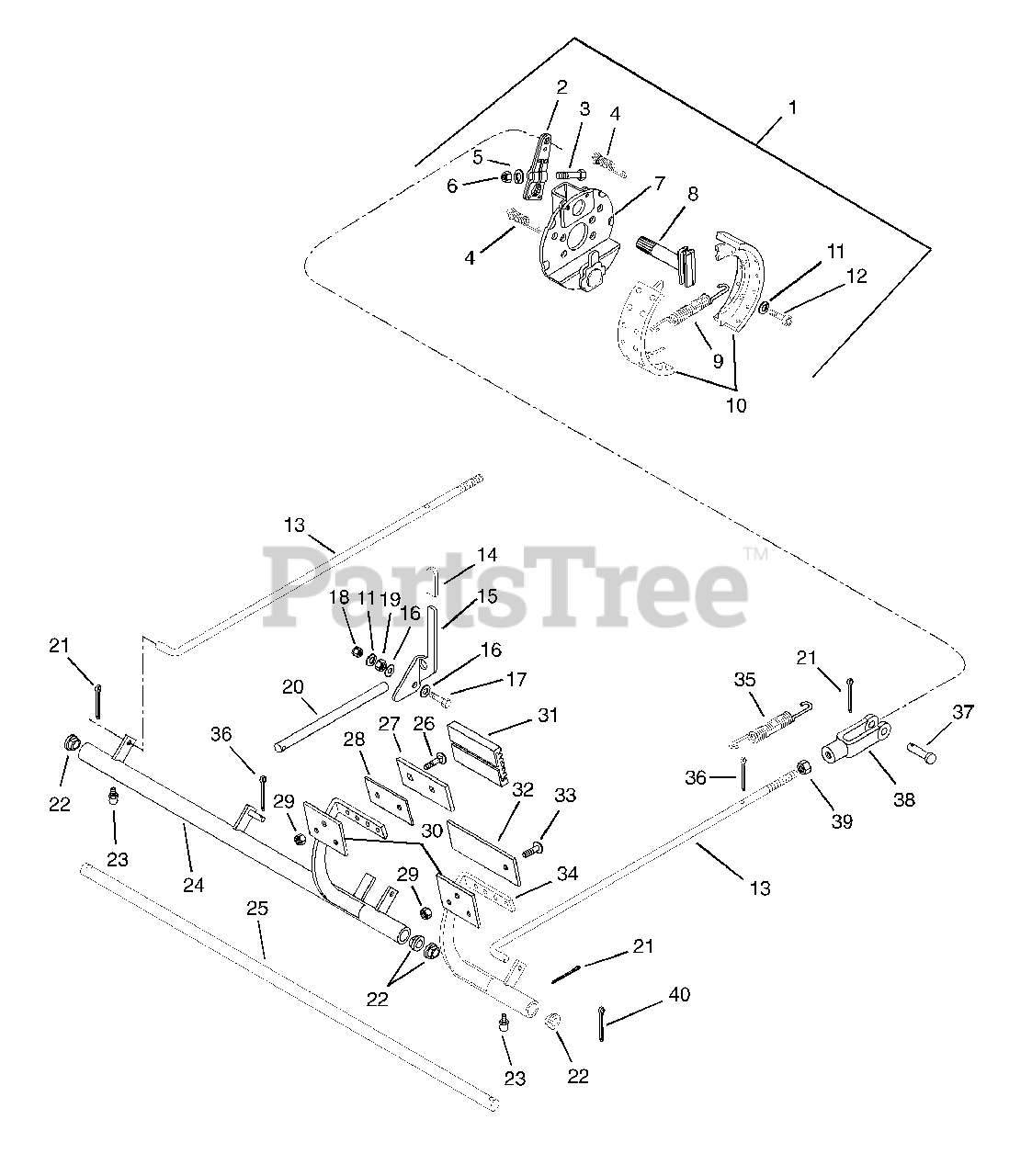

989057 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) Brakes Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

Brakes Parts Diagram

  • Title

1

Gravely 045003

Brake, 7 x 1.75 Mechanical
(Superseded to 08960800)

Note: (Contains: One each of Items 2, 3, 5, 6-9; Two each of Items 4, 10)

$

$

Not available

2

Gravely 023505

Arm, Cam Lever
(Superseded to 08529900)

$79.99

$

In Stock, only 1 left!

0

3

Gravely 05968000

Bolt-Hex .31-24 x 1.75
(Superseded to 05902007)

$2.99

$

In Stock, Qty 11

0

4

Gravely 023509

Spring, Shoe Ret Box
(Superseded to 08530300)

$

$

Not available

5

Gravely 06308600

Washer-Lock .313 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 120368

Nut-Hex .312-24 Grade 2
(Superseded to 06522800)

$2.49

$

Usually ships in 4-12 days

0

7

Gravely 046231

Plate, Brake
(Superseded to 21279100)

$

$

Not available

8

Gravely 023506

Cam, Brake
(Superseded to 08530000)

$271.99

$

In Stock, only 1 left!

0

9

Gravely 023508

Spring, Shoe Return
(Superseded to 08530200)

$21.99

$

Usually ships in 4-12 days

0

10

Gravely 023539

Kit, Brake Shoe
(Superseded to 08530400)

$268.99

$

Usually ships in 4-12 days

0

11

Gravely 06308800

Washer-Lock .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 179146

Screw-Cap .38-16 x 1.25
(Superseded to 05932800)

$

$

Not available

13

Gravely 034517

Rod, Brake
(Superseded to 09027100)

$39.99

$

Usually ships in 4-12 days

0

14

Gravely 043192

Tip-Brake Lock Lever
(Superseded to 07503800)

$1.49

$

In Stock, only 4 left!

0

15

Gravely 045101

Arm, Parking Brake Lock
(Superseded to 08963400)

$

$

Not available

16

Gravely 020775

Washer-Flat-Nylon .375 x .75 x .060
(Superseded to 06433600)

$0.99

$

In Stock, Qty 11

0

17

Gravely 05958000

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06529400

Nut-Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 045223

Rod, Brake Lock
(Superseded to 08967300)

$

$

Not available

21

Gravely 06706900

Pin-Cotter .09 x .75

$0.99

$

In Stock, Qty 8

0

22

Gravely 045787

Bushing-Flange .630 x 1.000 x .625
(Superseded to 05517400)

$

$

Not available

23

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

24

Gravely 052977

Weldment, Brake Pedal
(Superseded to 09014700)

$

$

Not available

25

Gravely 045193

Shaft, Brake
(Superseded to 08966100)

$

$

Not available

26

Gravely 06219700

Bolt-Round Head Square Neck .25-20 x 1.25 Grade 5

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 045565

Pedal, Brake
(Superseded to 08969800)

$

$

Not available

28

Gravely 041921

Plate, Brake
(Superseded to 08938300)

$

$

Not available

29

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 021749

Plate, Brake Lock Backing
(Superseded to 08903200)

$

$

Not available

31

Gravely 041944

Pad, Pedal
(Superseded to 00270100)

$3.49

$

In Stock, Qty 5

0

32

Gravely 036808

Arm, Brake Lock

$

$

Not available

33

Gravely 06118100

Screw-Machine .25-20 x 1.00

$3.49

$

Usually ships in 4-12 days

0

34

Gravely 052976

Weldment, Brake Pedal
(Superseded to 09014400)

$

$

Not available

35

Gravely 015255

Spring-Tension .091 x .500 x 5.50
(Superseded to 08327500)

$

$

Not available

36

Gravely 06707300

Pin-Cotter .12 x .75

$0.99

$

In Stock, Qty 5

0

37

Gravely 06811900

Pin-Clevis .375 x .948

$4.99

$

In Stock, Qty 5

0

38

Gravely 018380

Clevis, .38-24 Adjustable
(Superseded to 08800400)

$11.99

$

Usually ships in 4-12 days

0

39

Gravely 06534700

Nut-Jam .375-24
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0

40

Gravely 06712600

Pin-Cotter .12 x 1.25
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0
