989056 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) TRANSMISSION ASSEMBLY Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

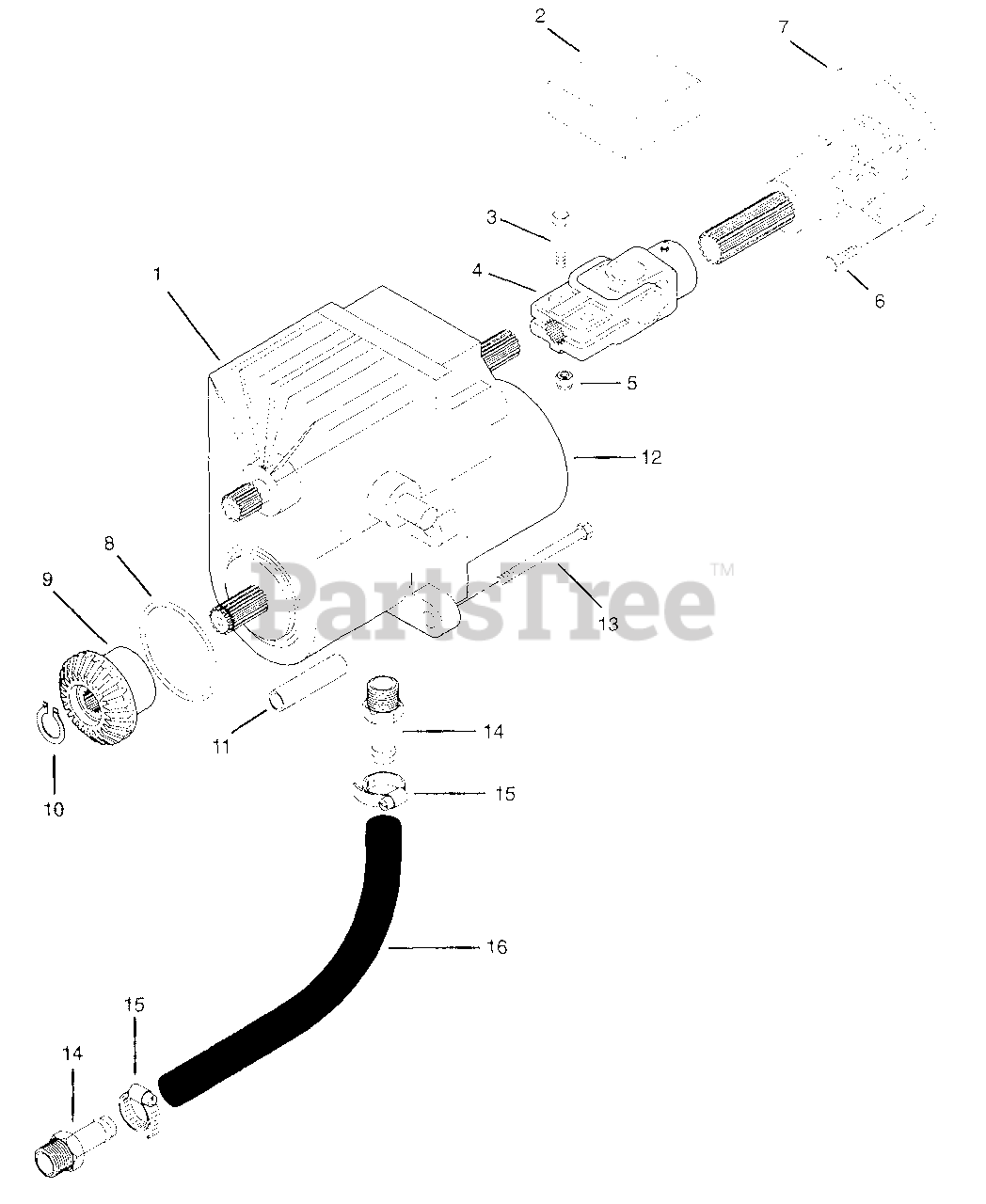

TRANSMISSION ASSEMBLY Parts Diagram

  • Title

1

Gravely 09080300

Transmission, Hydraulic

$

$

Not available

2

Gravely 047636

Kit, U-Joint Repair
(Superseded to 53114500)

$

$

Not available

3

Gravely 05958500

Bolt-Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 050602

Assembly, U-Joint
(Superseded to 09019000)

$

$

Not available

5

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 00598700

Screw, Hex Head 10MM - 1.25 x 20
(Superseded to 05960500)

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 09046300

Adapter, Flywheel

$

$

Not available

8

Gravely 018346

O-Ring 3.0 x 3.187 x .093
(Superseded to 05614900)

$3.49

$

In Stock, Qty 11

0

9

Gravely 044568

Gear
(Superseded to 09028600)

$

$

Not available

10

Gravely 015338

Ring-Retaining-External .579 x .93
(Superseded to 05711900)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 044472

Spacer .385 x .625 x 2.69
(Superseded to 08950300)

$

$

Not available

12

Gravely 039306

Oil Filter
(Superseded to 03192800)

$27.99

$

In Stock, only 1 left!

0

13

Gravely 05965400

Bolt-Hex .38-16 x 4.00 Grade 5

$3.99

$

In Stock, only 1 left!

0

14

Gravely 045226

Fitting-Adapter 88-14
(Superseded to 07020300)

$6.99

$

Usually ships in 4-12 days

0

15

Gravely 021247

Clamp, .88 Diameter Hose
(Superseded to 06923500)

$1.99

$

In Stock, Qty 6

0

16

Gravely 046379

Hose .62 Inside Diameter x .91 OD
(Superseded to 00915100)

$3.49

$

In Stock, Qty 20+

0
