989056 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) SEAT & DECK ASSEMBLY Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

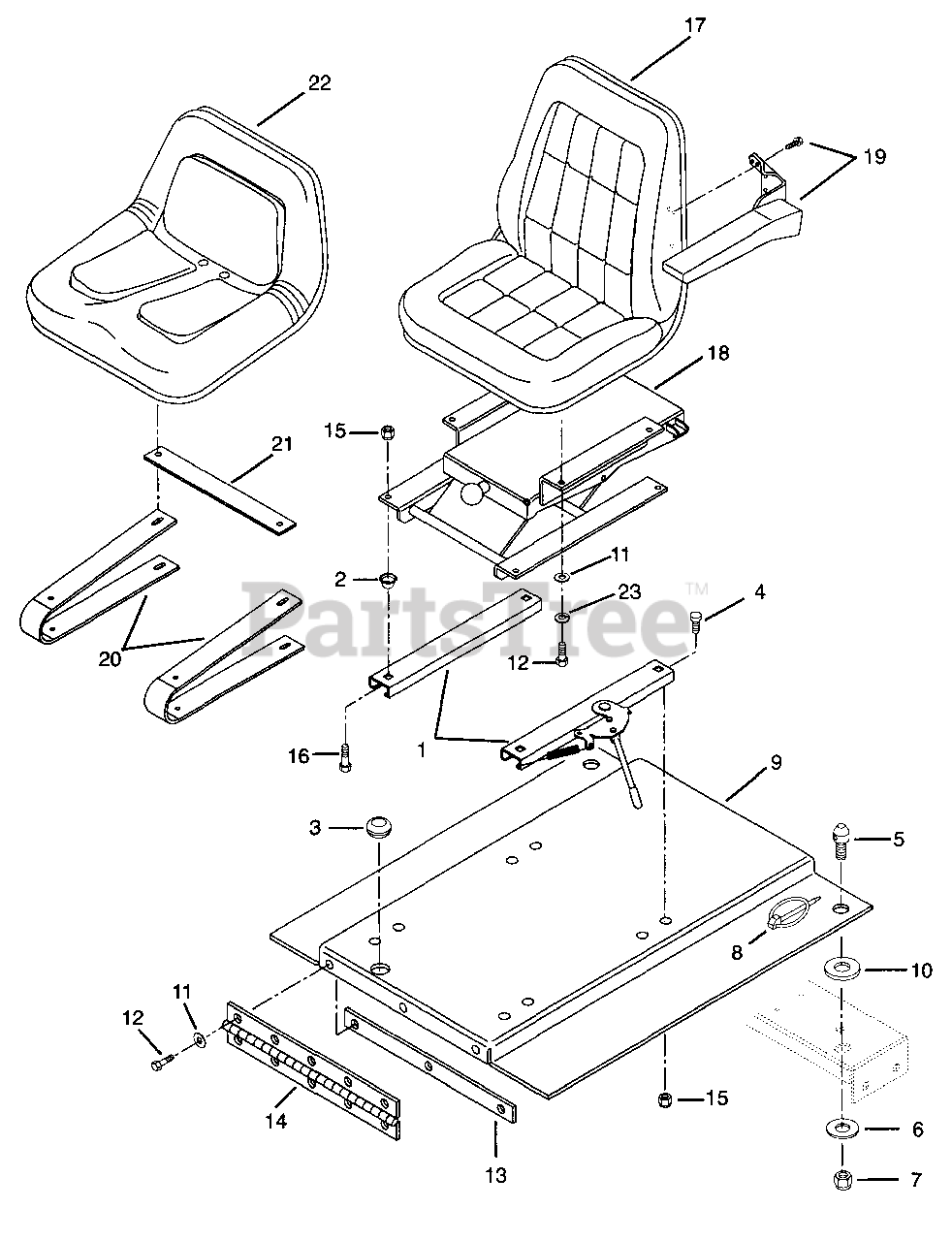

SEAT & DECK ASSEMBLY Parts Diagram

  • Title

1

Gravely 03600800

Seat Slides

$104.99

$

Usually ships in 4-12 days

0

2

Gravely 035670

Seat Slide Spacer
(Superseded to 03418300)

$4.49

$

Usually ships in 4-12 days

0

3

Gravely 045290

Grommet .75 x 1.06 x 1.38
(Superseded to 07530600)

$2.49

$

Usually ships in 4-12 days

0

4

Gravely 039062

Screw-Cap Button Head .31-18 x .50 Grade 5
(Superseded to 07008100)

$

$

Not available

5

Gravely 045148

Pin, Catch
(Superseded to 08964800)

$

$

Not available

6

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06536300

Nut-Locking-Nylon .50-13 Grade 5
(Superseded to 06500827)

$3.99

$

In Stock, only 1 left!

0

8

Gravely 011902

Pin-Klik .25 x 1.75
(Superseded to 07015400)

$5.99

$

In Stock, only 1 left!

0

9

Gravely 045117

Plate, Deck
(Superseded to 08963900)

$

$

Not available

10

Gravely 06428100

Washer-Snub-Steel .53 x 2.38 x .125

Note: (989304,305)

$

$

Not available

11

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

Note: (with Seat Kit)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

Note: (with Seat Kit)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 01539100

Plate, Clamping

$

$

Not available

14

Gravely 039090

Hinge
(Superseded to 03102800)

$

$

Not available

15

Gravely 06529800

Nut-Locking-Nylon .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06529800

Nut-Locking-Nylon .31-18
(Superseded to 06500826)

Note: (with Seat Kit)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

Note: (with Seat Kit)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 046220

Seat, Pro Master
(Superseded to 08975800)

Note: (with Kit 048577)

$283.99

$

Usually ships in 4-12 days

0

18

Gravely 045230

Seat, Suspension
(Superseded to 08967500)

Note: (with Kit 048577)

$

$

Not available

19

Gravely 044143

Kit-Pro Master Arm Rest
(Superseded to 78901400)

$

$

Not available

20

Gravely 047528

Spring, Seat
(Superseded to 03486851)

Note: (with Kit 051546)

$

$

Not available

21

Gravely 09004000

Plate, Control Shaft
(Superseded to 09004051)

Note: (with Kit 051546)

$

$

Not available

22

Gravely 09112400

Seat, V-560 High Back

Note: (with Kit 051546)

$

$

Not available

23

Gravely 06308600

Washer-Locking .31 x .078
(Superseded to 06300119)

Note: (with Seat Kit)

$0.99

$

In Stock, Qty 20+

0

Gravely 048577

Kit, Deluxe Seat
(Superseded to 78703200)

$

$

Not available

Gravely 044143

Kit, Pro Master Arm Rest
(Superseded to 78901400)

$

$

Not available

Gravely 051546

Kit, High Back Seat
(Superseded to 78901300)

$

$

Not available

Gravely 044144

Arm Rest Kit - G Series

$

$

Not available

Gravely 78707800

Arm Rest Kit

$

$

Not available
