989056 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) SEAT BELT & ROPS Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

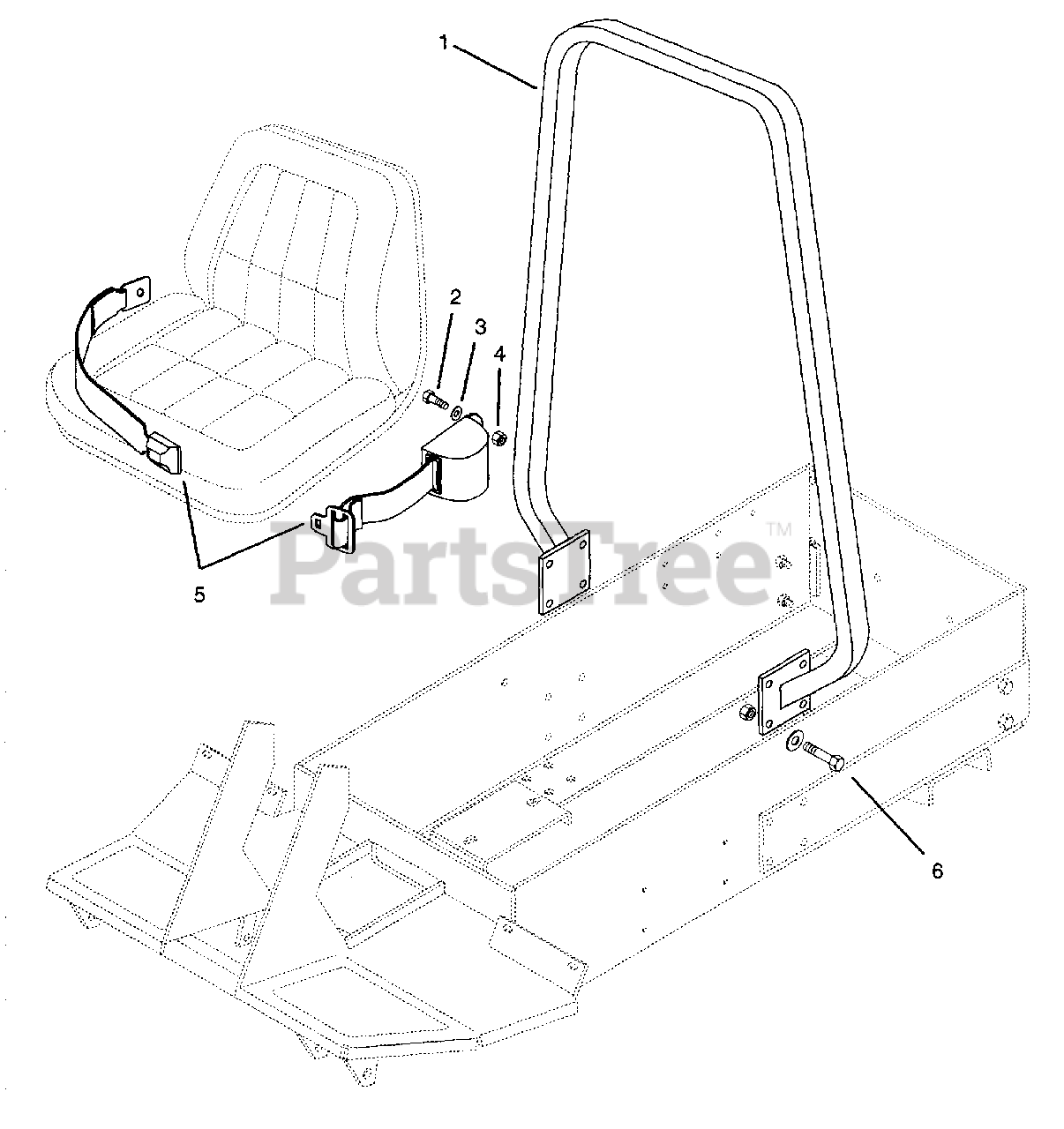

SEAT BELT & ROPS Parts Diagram

  • Title
1

Gravely 09036300

Weldment, Rollover Bar

$284.99

$

Usually ships in 4-12 days

0

2

Gravely 05958700

Bolt-Hex .44-14 x 1.0 Grade 5
(Superseded to 05901913)

$2.99

$

In Stock, only 1 left!

0

3

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06536400

Nut-Locking-Center .44-14
(Superseded to 06500930)

$2.99

$

In Stock, Qty 12

0

5

Gravely 043208

Assembly, Seat Belt
(Superseded to 08945400)

$89.99

$

Usually ships in 4-12 days

0

6

Gravely 05946000

Bolt-Hex .50-13 x 1.75 Grade 8

$

$

Not available

Gravely 88903300

ROPS, PM-400

Note: (Contains Items 1-6)

$

$

Not available
