989056 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) POWER STEERING Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

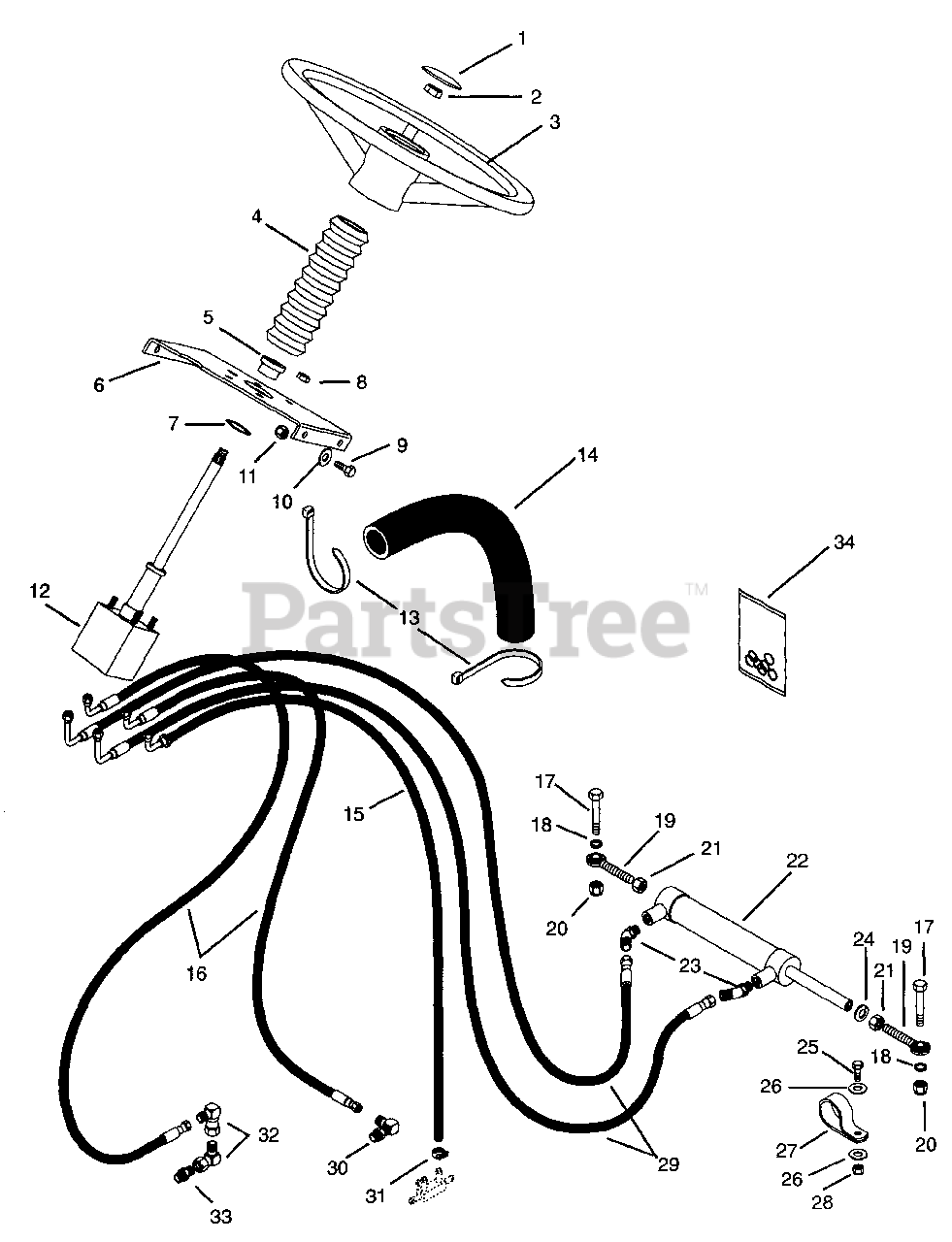

POWER STEERING Parts Diagram

  • Title

1

Gravely 031426

Steering Wheel Cap
(Superseded to 03489800)

$

$

Not available

2

Gravely 06535600

Nut-Hex .62-11

$2.99

$

In Stock, only 3 left!

0

3

Gravely 031281

Steering Wheel
(Superseded to 03066600)

$

$

Not available

4

Gravely 047311

Steering Column Boot
(Superseded to 08739200)

$

$

Not available

5

Gravely 010174

Bushing-Flange .762 x 1.0 x .580 x 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

6

Gravely 046290

Bracket, Steering Pump
(Superseded to 08977100)

$

$

Not available

7

Gravely 05717300

Ring-Retaining-External 1.31 x .05

$

$

Not available

8

Gravely 06537000

Nut-Locking-Center .31-24

$

$

Not available

9

Gravely 05947000

Bolt-Hex .25-20 X 1.25 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 046109

Power Steering Unit
(Superseded to 09093200)

$

$

Not available

13

Gravely 041634

Tie Wrap, Black
(Superseded to 07519900)

$3.49

$

Usually ships in 4-12 days

0

14

Gravely 052780

Sleeve 12"
(Superseded to 09011400)

$

$

Not available

15

Gravely 046382

Assembly, Hydraulic Hose
(Superseded to 08978200)

$

$

Not available

16

Gravely 046381

Assembly, Hydraulic Hose
(Superseded to 08978100)

$64.99

$

Usually ships in 4-12 days

0

17

Gravely 05959700

Bolt-Hex .50-13 x 2.00 Grade 5
(Superseded to 05901929)

$

$

Not available

18

Gravely 046192

Spacer .520 x .625 x .125
(Superseded to 08974800)

$21.99

$

In Stock, only 1 left!

0

19

Gravely 044950

Assembly, Rod End
(Superseded to 08959600)

Note: (Right Hand)

$38.99

$

Usually ships in 4-12 days

0

20

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

21

Gravely 06539500

Nut-Jam .50-20 Grade 2

$2.49

$

Usually ships in 4-12 days

0

22

Gravely 044583

Cylinder, Steering
(Superseded to 04935800)

$559.99

$

In Stock, only 1 left!

0

23

Gravely 018829

Adapter
(Superseded to 08901200)

$21.99

$

Usually ships in 4-12 days

0

24

Gravely 06307300

Washer-Locking .50 X 1.25
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

25

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 045279

Clamp, Nylon
(Superseded to 06939900)

$

$

Not available

28

Gravely 06529600

Nut-Locking-Nylon .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 09061600

Hydraulic Hose Assembly

$

$

Not available

30

Gravely 018828

Adapter
(Superseded to 00313270)

$9.49

$

Usually ships in 4-12 days

0

31

Gravely 032045

Hose Clamp
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

32

Gravely 018818

Adapter
(Superseded to 08901000)

$20.99

$

Usually ships in 4-12 days

0

33

Gravely 019167

Adapter-Pipe .56-18 "O" Ring To .56-18
(Superseded to 07017500)

$11.99

$

In Stock, only 2 left!

0

34

Gravely 58900600

Repair Kit, PM-400 Power Steering

$

$

Not available
