989056 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) FOUR WHEEL DRIVE ASSIST KIT Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

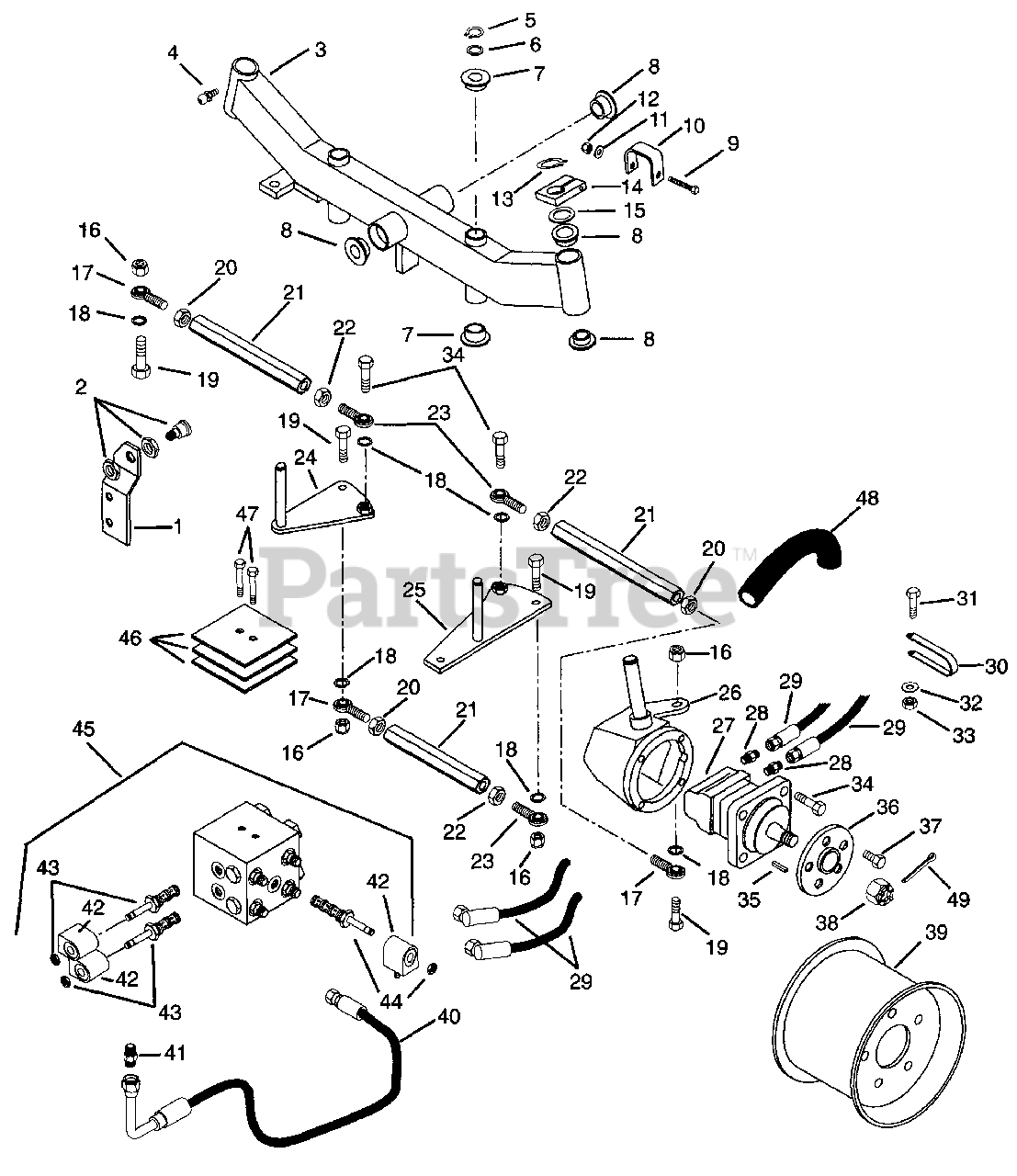

FOUR WHEEL DRIVE ASSIST KIT Parts Diagram

  • Title

1

Gravely 09030800

Bracket

$5.99

$

Usually ships in 4-12 days

0

2

Gravely 039493

Safety Switch
(Superseded to 03110700)

$39.99

$

Usually ships in 4-12 days

0

3

Gravely 09039100

Axle Weldment

$91.99

$

Usually ships in 4-12 days

0

4

Gravely 411027

Fitting Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

5

Gravely 026300

Ring-Retaining-External .689 x .077
(Superseded to 05714600)

$2.49

$

In Stock, Qty 5

0

6

Gravely 011223

Bearing-Needle-Thrust .752 x 1.24 x .031
(Superseded to 06413400)

$3.49

$

In Stock, only 2 left!

0

7

Gravely 010174

Bushing-Flange .762 x 1.0 x .580 x 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

8

Gravely 018355

Bushing-Flange 1.020 x 1.385 x .75 x 1.75
(Superseded to 05520100)

$11.99

$

In Stock, Qty 18

0

9

Gravely 05969900

Bolt-Hex .25-20 x 2.75 Grade 5

$

$

Not available

10

Gravely 09017400

Bracket, Hose Loop

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 06437300

Washer-Flat-Steel .281 X .62 X .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06529700

Nut-Locking .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 017980

Ring-Retaining-External .906 x .078
(Superseded to 05707300)

$2.99

$

In Stock, Qty 9

0

14

Gravely 09038300

Bracket Support

$5.99

$

Usually ships in 4-12 days

0

15

Gravely 019340

Washer-Hardened Thrust 1.002 x 1.552 x .030
(Superseded to 06435300)

$4.99

$

In Stock, only 3 left!

0

16

Gravely 06536300

Nut-Locking-Center .50-13 Grade 5
(Superseded to 06500827)

$3.99

$

In Stock, only 1 left!

0

17

Gravely 044950

Assembly, Rod End Right Hand
(Superseded to 08959600)

$38.99

$

Usually ships in 4-12 days

0

18

Gravely 046192

Spacer .520 x .625 x .125
(Superseded to 08974800)

$21.99

$

In Stock, only 1 left!

0

19

Gravely 05959700

Bolt-Hex .50-13 x 2.00 Grade 5
(Superseded to 05901929)

$

$

Not available

20

Gravely 06539500

Nut-Jam .50-20 Grade 2

$2.49

$

Usually ships in 4-12 days

0

21

Gravely 051085

Rod, Tie
(Superseded to 09002400)

$

$

Not available

22

Gravely 06538300

Nut-Jam .50-20 Left Hand Grade 2

$

$

Not available

23

Gravely 051086

Assembly, Rod End Left Hand
(Superseded to 09002500)

$

$

Not available

24

Gravely 09084300

Weldment, Steering Idler

$

$

Not available

25

Gravely 09084200

Weldment, Steering Arm

$

$

Not available

26

Gravely 09045500

Spindle Weldment Left Hand

$

$

Not available

26

Gravely 09045400

Spindle Weldment Right Hand

$148.99

$

Usually ships in 4-12 days

0

27

Gravely 09045600

Eaton 2000 Wheel Motor

$956.99

$

Usually ships in 4-12 days

0

28

Gravely 07025800

Adapter, Hydraulic

$13.99

$

In Stock, only 2 left!

0

29

Gravely 09038600

Assembly, Hydraulic Hose

$

$

Not available

30

Gravely 045279

Clamp, Nylon
(Superseded to 06939900)

$

$

Not available

31

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 05962000

Bolt-Hex .50-13 x 1.50 Grade 5
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

35

Gravely 06609800

Key-Square .313 x 1

$3.99

$

Usually ships in 4-12 days

0

36

Gravely 09017600

Hub

$

$

Not available

37

Gravely 07412200

Screw-Hex-Tapping .500-20 x .62
(Superseded to 07416900)

$13.99

$

In Stock, only 3 left!

0

38

Gravely 06528400

Nut-Hex Slotted 1-20

$

$

Not available

39

Gravely 07136400

Wheel

$

$

Not available

40

Gravely 09038700

Assembly, Hydraulic Hose

$

$

Not available

41

Gravely 07020400

Adapter, Hydraulic

$

$

Not available

42

Gravely 07020700

Coil, Solenoid

$

$

Not available

43

Gravely 07026700

Valve, 3-Way 12VDC Directional

$

$

Not available

44

Gravely 07026800

Valve, 4-Way 12VDC Directional

$

$

Not available

45

Gravely 09017800

Hydraulic Manifold Assembly

$1876.99

$

Usually ships in 4-12 days

0

46

Gravely 09038800

Plate

$5.99

$

Usually ships in 4-12 days

0

47

Gravely 05947500

Bolt-Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

48

Gravely 050692

Sleeve 18"
(Superseded to 08787200)

$

$

Not available

49

Gravely 06704600

Pin-Cotter .12 x 2.0

$

$

Not available
