989056 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) 72" MOWER ROLLER KIT Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

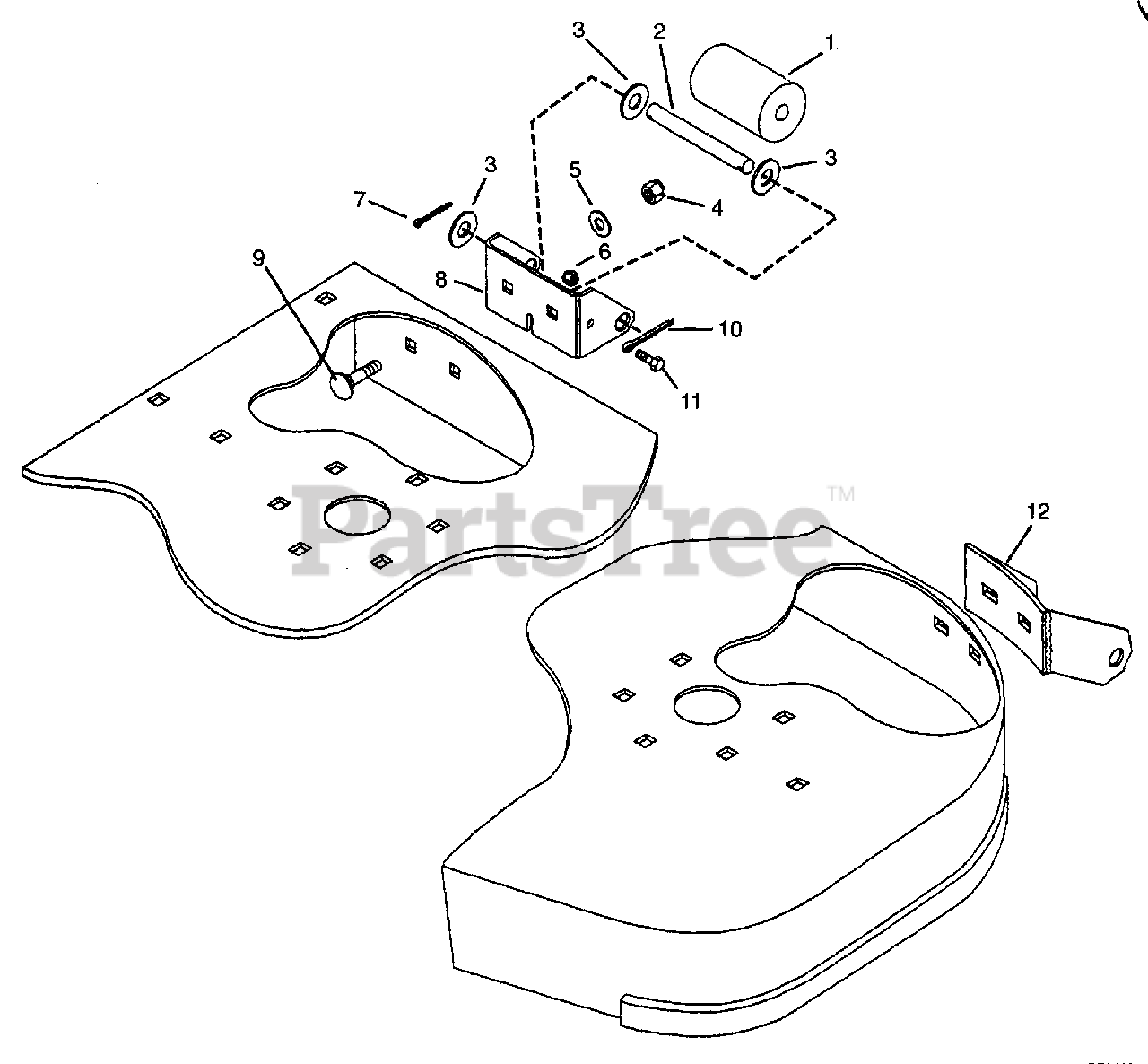

72" MOWER ROLLER KIT Parts Diagram

  • Title
1

Gravely 015351

Roller, Gauge
(Superseded to 07520100)

$26.99

$

Usually ships in 4-12 days

0

2

Gravely 045211

Rod
(Superseded to 08966900)

$56.99

$

Usually ships in 4-12 days

0

3

Gravely 06442800

Washer-Flat-Steel .656 x 1.31 x .095
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

4

Gravely 06529200

Nut-Locking-Center .38-16
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

5

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06713000

Pin-Cotter .25 x 1.00

$1.49

$

In Stock, only 2 left!

0

8

Gravely 045210

Bracket, Roller
(Superseded to 08966853)

$

$

Not available

9

Gravely 06215500

Bolt-Round Head Square Neck .38-16 x 1.00
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

10

Gravely 06713100

Pin-Cotter .250 x 2.00
(Superseded to 06700213)

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 050536

Weldment, Roller Bracket
(Superseded to 08998000)

$113.99

$

Usually ships in 4-12 days

0
