989056 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) 60" MOWER DECK Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

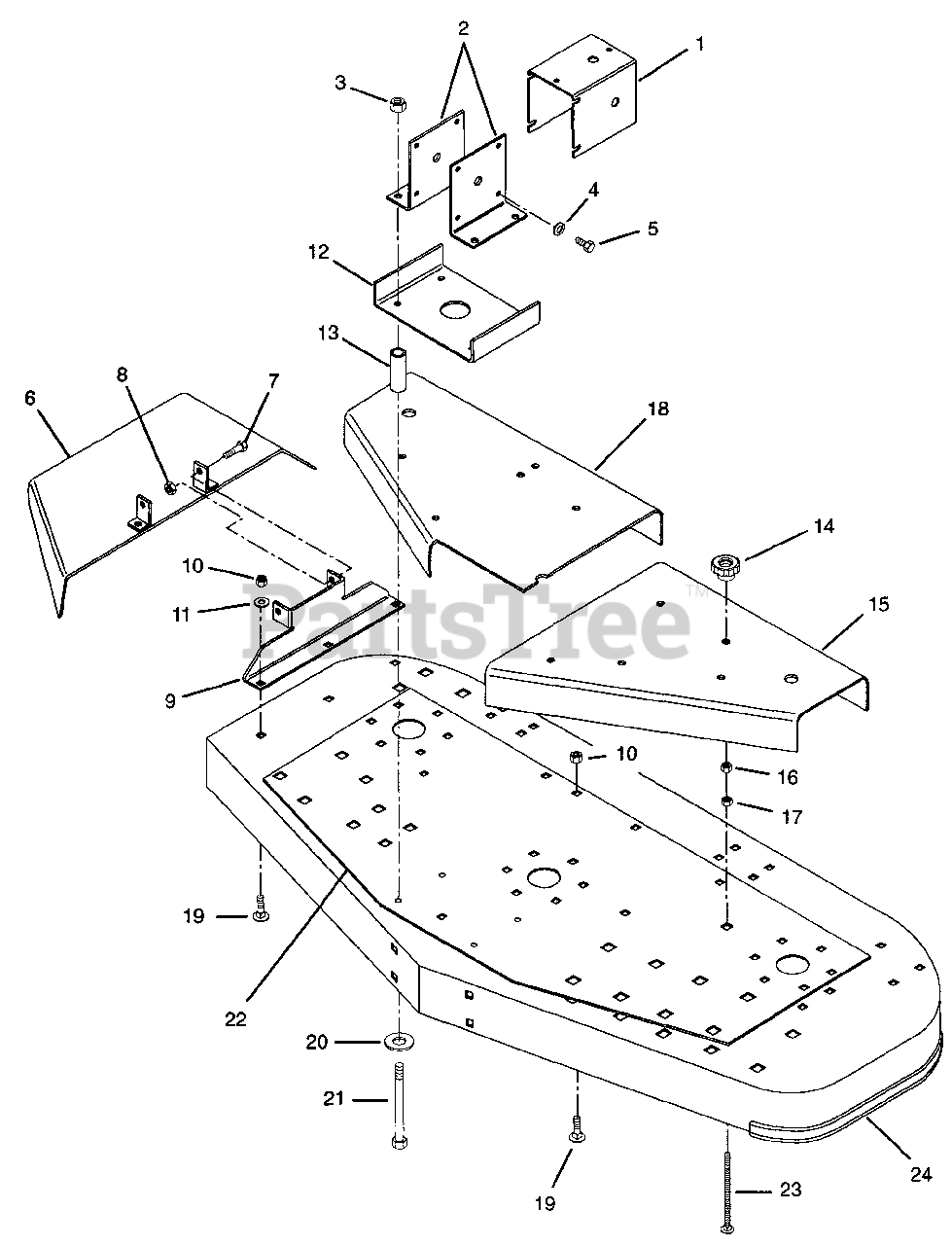

60" MOWER DECK Parts Diagram

  • Title
1

Gravely 047332

Shield, U-Joint
(Superseded to 08981900)

$6.99

$

Usually ships in 4-12 days

0

2

Gravely 049079

Bracket, Gearbox Mounting
(Superseded to 08986700)

$6.99

$

Usually ships in 4-12 days

0

3

Gravely 435507

Nut-Locking-Nylon .50-13 Grade 5
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

4

Gravely 120382

Washer-Lock .375 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 180121

Bolt-Hex .380-16 x .875
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

6

Gravely 048967

Weldment, Discharge Chute
(Superseded to 08782100)

$

$

Not available

7

Gravely 180021

Bolt-Hex .25-20 x .875
(Superseded to 05934000)

$1.99

$

Usually ships in 4-12 days

0

8

Gravely 419454

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

9

Gravely 049649

Bracket, Discharge
(Superseded to 08990400)

$54.99

$

Usually ships in 4-12 days

0

10

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

11

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 049080

Plate, Support
(Superseded to 09064400)

$

$

Not available

13

Gravely 044905

Spacer .562 x 1.00 x 2.00
(Superseded to 08981000)

$27.99

$

Usually ships in 4-12 days

0

14

Gravely 041674

Knob
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+

0

15

Gravely 049334

Cover, Belt Silkscreen
(Superseded to 08988500)

$34.99

$

Usually ships in 4-12 days

0

16

Gravely 419455

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 124824

Nut-Jam .312-18
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 049331

Cover, Belt Right Hand
(Superseded to 09090100)

$20.99

$

Usually ships in 4-12 days

0

19

Gravely 120915

Bolt-Round Head Square Neck .38-16 x 1.0

$

$

Not available

20

Gravely 120396

Washer-Flat-Steel .531 x 1.062 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 180193

Bolt-Hex .50-13 x 3.75
(Superseded to 05901703)

$5.99

$

Usually ships in 4-12 days

0

22

Gravely 049090

Plate, Deck Support
(Superseded to 08986900)

$

$

Not available

23

Gravely 040546

Bolt-Round Head Square Neck .31-18 x 4.0
(Superseded to 06222500)

$3.99

$

In Stock, only 3 left!

0

24

Gravely 049332

Weldment, 60" Mower Deck
(Superseded to 08988700)

$

$

Not available
