989054 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) GEAR SHIFT Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

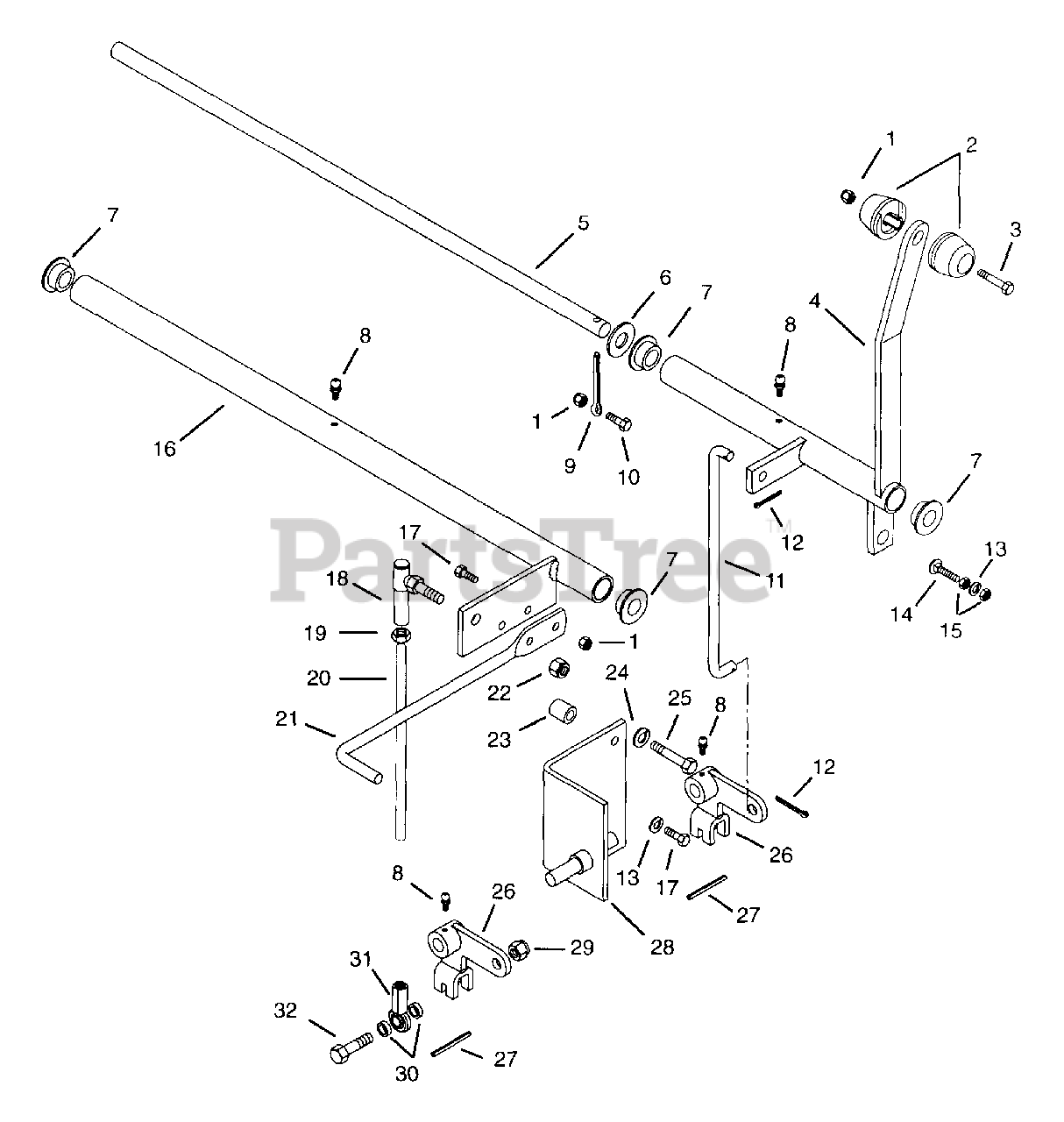

GEAR SHIFT Parts Diagram

  • Title

1

Gravely 419454

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

2

Gravely 041941

Knob, Control
(Superseded to 07527100)

$

$

Not available

3

Gravely 180034

Bolt-Hex .25-20 x 1.50 Grade 5
(Superseded to 05901739)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 045078

Control, Hi-Lo
(Superseded to 08963000)

$

$

Not available

5

Gravely 045079

Shaft, Control
(Superseded to 08963100)

$

$

Not available

6

Gravely 120396

Washer-Flat-Steel .531 x 1.062 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 034738

Bushing-Flange .515 x .750 x .745 x 1.00
(Superseded to 05521100)

$2.49

$

In Stock, only 3 left!

0

8

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

9

Gravely 103422

Pin-Cotter .250 x 2.00
(Superseded to 06713100)

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 180021

Bolt-Hex .25-20 x .875
(Superseded to 05934000)

$1.99

$

Usually ships in 4-12 days

0

11

Gravely 045075

Rod, Hi-Lo
(Superseded to 09029400)

$

$

Not available

12

Gravely 121222

Pin-Cotter .09 x .75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

13

Gravely 120380

Washer-Lock .250 Reg.
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 454480

Screw-Machine .25-20 x 1.25
(Superseded to 06114200)

$

$

Not available

15

Gravely 120375

Nut-Hex .250-20 Grade 2
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

16

Gravely 051830

Weldment, Differential Lock Control
(Superseded to 09007700)

$

$

Not available

17

Gravely 180020

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 021084

Joint, Steering Ball
(Superseded to 02917100)

$23.99

$

In Stock, Qty 6

0

19

Gravely 120369

Nut-Hex .375-24 Grade 2
(Superseded to 06522900)

$2.49

$

In Stock, only 2 left!

0

20

Gravely 051840

Rod, Lock Control
(Superseded to 09030500)

$

$

Not available

21

Gravely 051892

Bar, Foot
(Superseded to 09030600)

$

$

Not available

22

Gravely 192481

Nut-Locking-Nylon .375-24 Grade 2
(Superseded to 06538800)

$1.99

$

In Stock, only 4 left!

0

23

Gravely 038696

Bushing-Sleeve .407 x .625 x .750
(Superseded to 05525700)

$7.49

$

In Stock, only 1 left!

0

24

Gravely 120214

Washer-Lock .313 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 180087

Bolt-Hex .31-18 x 2.00 Grade 5
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 044559

Lever, Hi-Lo
(Superseded to 08952300)

$

$

Not available

27

Gravely 412281

Pin-Roll .250 x 1.000
(Superseded to 05808400)

$3.99

$

Usually ships in 4-12 days

0

28

Gravely 051813

Bracket, Shift
(Superseded to 09007300)

$

$

Not available

29

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

30

Gravely 042989

Bushing-Flange .383 x .50 x .165
(Superseded to 05526700)

$

$

Not available

31

Gravely 043249

Rod End, Spherical Bearing
(Superseded to 08821700)

$16.99

$

Usually ships in 4-12 days

0

32

Gravely 180126

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0
