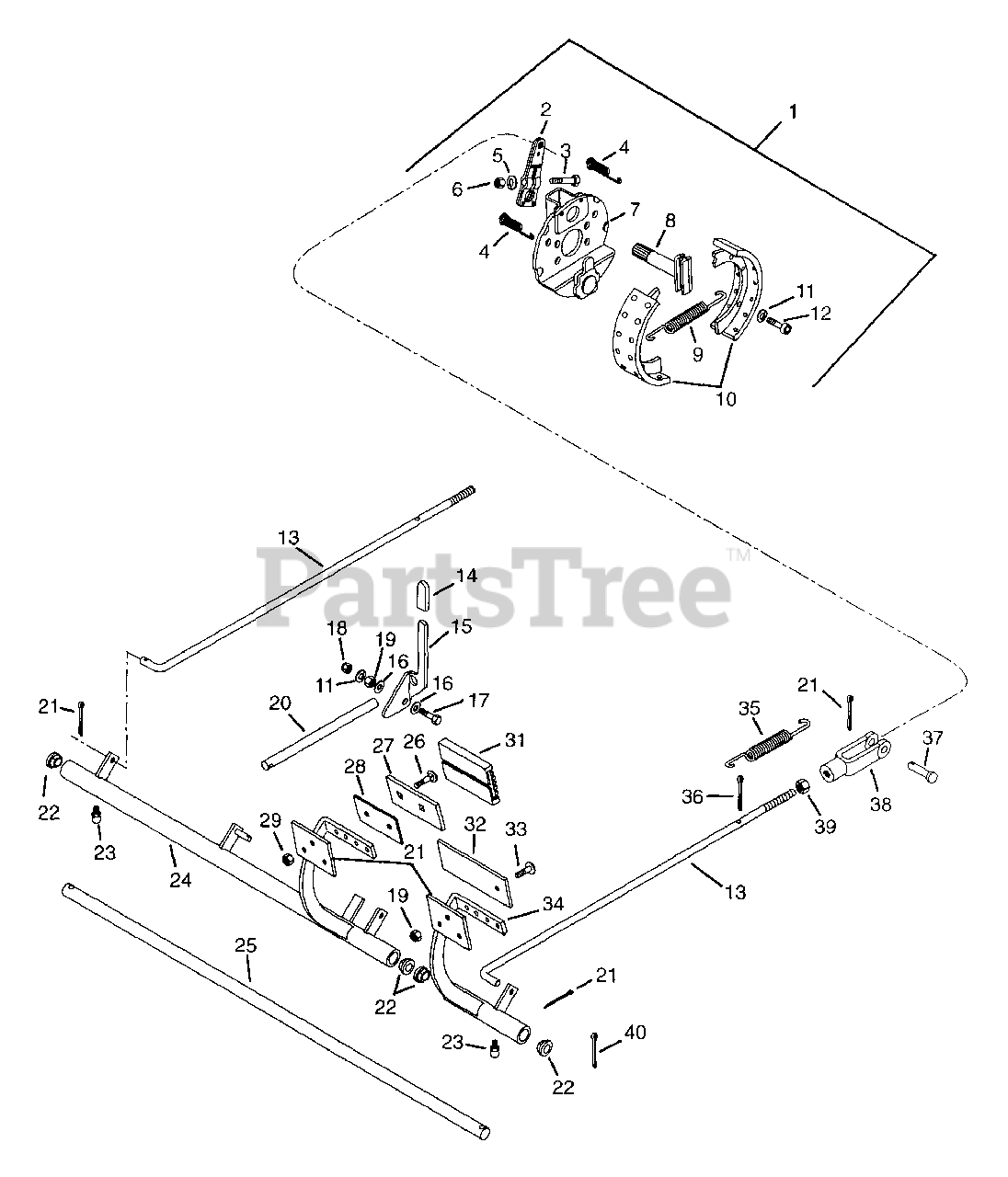

989054 (PM 460) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) BRAKES Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

BRAKES Parts Diagram

  • Title

1

Gravely 045003

Brake, 7 x 1.75 Mechanical
(Superseded to 08960800)

$

$

Not available

2

Gravely 023505

Arm, Cam Lever
(Superseded to 08529900)

$79.99

$

In Stock, only 1 left!

0

3

Gravely 181618

Bolt-Hex .31-24 x 1.75
(Superseded to 05902007)

$2.99

$

In Stock, Qty 11

0

4

Gravely 023509

Spring, Shoe Ret Box
(Superseded to 08530300)

$

$

Not available

5

Gravely 120214

Washer-Lock .313 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 120368

Nut-Hex .312-24 Grade 2
(Superseded to 06522800)

$2.49

$

Usually ships in 4-12 days

0

7

Gravely 046231

Plate, Brake
(Superseded to 21279100)

$

$

Not available

8

Gravely 023506

Cam, Brake
(Superseded to 08530000)

$271.99

$

In Stock, only 1 left!

0

9

Gravely 023508

Spring, Shoe Return
(Superseded to 08530200)

$21.99

$

Usually ships in 4-12 days

0

10

Gravely 023539

Kit, Brake Shoe
(Superseded to 08530400)

$268.99

$

Usually ships in 4-12 days

0

11

Gravely 120382

Washer-Lock .375 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 179146

Screw-Cap .38-16 x 1.25
(Superseded to 05932800)

$

$

Not available

13

Gravely 034517

Rod, Brake
(Superseded to 09027100)

$39.99

$

Usually ships in 4-12 days

0

14

Gravely 043192

Tip-Brake Lock Lever
(Superseded to 07503800)

$1.49

$

In Stock, only 4 left!

0

15

Gravely 045101

Arm, Parking Brake Lock
(Superseded to 08963400)

$

$

Not available

16

Gravely 020775

Washer-Flat-Nylon .375 x .75 x .060
(Superseded to 06433600)

$0.99

$

In Stock, Qty 11

0

17

Gravely 180125

Bolt-Hex .38-16 x 1.38
(Superseded to 05934900)

$

$

Not available

18

Gravely 413534

Nut-Locking - Center .625-10 Grade 2
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 120377

Nut-Hex .375-16 Grade 2
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

20

45223

Rod, Brake Lock

$

$

Not available

21

Gravely 121222

Pin-Cotter .09 x .75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

22

Gravely 045787

Bushing-Flange .630 x 1.000 x .625
(Superseded to 05517400)

$

$

Not available

23

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

24

Gravely 052977

Weldment, Brake Pedal
(Superseded to 09014700)

$

$

Not available

25

Gravely 045193

Shaft, Brake
(Superseded to 08966100)

$

$

Not available

26

Gravely 126325

Bolt-Round Head Square Neck .25-20 x 1.25
(Superseded to 06219700)

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 045565

Pedal, Brake
(Superseded to 08969800)

$

$

Not available

28

Gravely 041921

Plate, Brake
(Superseded to 08938300)

$

$

Not available

29

Gravely 419454

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

30

Gravely 021749

Plate, Brake Lock Backing
(Superseded to 08903200)

$

$

Not available

31

Gravely 041944

Pad, Pedal
(Superseded to 00270100)

$3.49

$

In Stock, Qty 5

0

32

Gravely 036808

Arm, Brake Lock

$

$

Not available

33

Gravely 120657

Screw-Machine .25-20 x 1.00
(Superseded to 06118100)

$3.49

$

Usually ships in 4-12 days

0

34

Gravely 052976

Weldment, Brake Pedal
(Superseded to 09014400)

$

$

Not available

35

Gravely 015255

Spring-Tension .091 x .500 x 5.50
(Superseded to 08327500)

$

$

Not available

36

Gravely 177923

Pin-Cotter .12 x .75
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

37

Gravely 06811900

Pin-Clevis .375 x .948

$4.99

$

In Stock, Qty 5

0

38

Gravely 018380

Clevis, .38-24 Adjustable
(Superseded to 08800400)

$11.99

$

Usually ships in 4-12 days

0

39

Gravely 124925

Nut-Jam .375-24
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0

40

Gravely 120123

Pin-Cotter .12 x 1.25
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0
