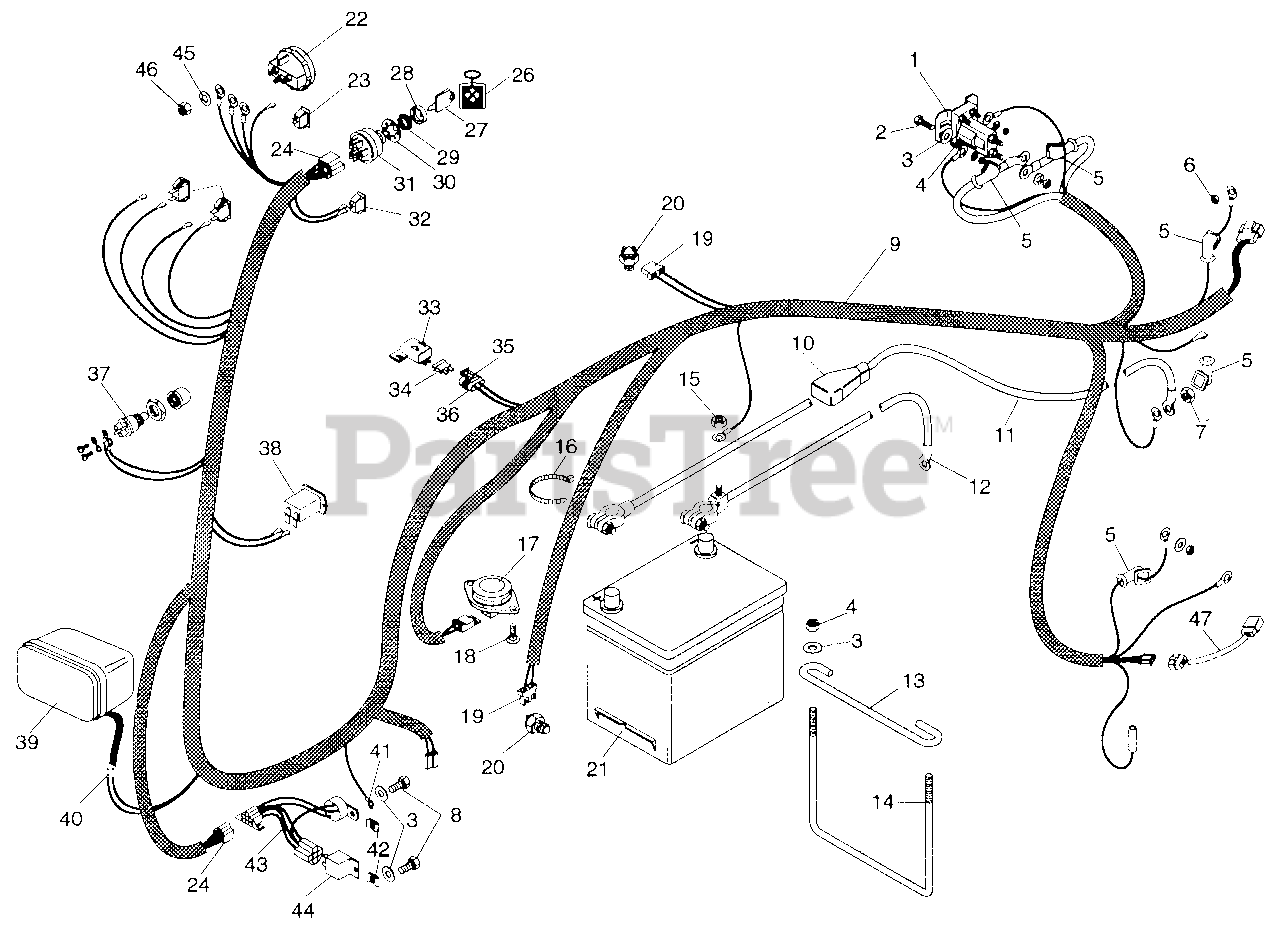

989051 (PM 400) - Gravely Pro-Master Zero-Turn Mower, 31hp Yanmar (SN: 000101 & Above) ELECTRICAL SYSTEM Parts Diagram

Pro-Master Zero-Turn Mower, 31hp Yanmar

ELECTRICAL SYSTEM Parts Diagram

  • Title
1

Gravely 045071

SOLENOID
(Superseded to 03551000)

$34.99

$

In Stock, Qty 14

0

2

Gravely 180020

BLT-HEX .25-20 X .75 PL GR 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 120392

WSHR-FL-STL .281 X .625 X .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 419454

NUT-LK-NYL .250-20 PL
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

5

Gravely 033847

G-BOOT, INSULATOR
(Superseded to 03384700)

$

$

Not available

6

Gravely 046364

NUT-HEX M5 X .8 PL
(Superseded to 06522100)

$

$

Not available

7

Gravely 046363

NUT-HEX M8 X 1.25 PL
(Superseded to 06538600)

$

$

Not available

8

Gravely 180018

BLT-HEX .25-20 X .63
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

9

Gravely 053081

HRNS, WIRING 22/30-H
(Superseded to 09014200)

$

$

Not available

10

Gravely 034466

CVR, BATTERY TERMINAL
(Superseded to 07523100)

$

$

Not available

11

Gravely 045019

CBL, POSITIVE CABLE
(Superseded to 08961100)

$

$

Not available

12

Gravely 045018

CBL, NEGATIVE BATTERY
(Superseded to 08961000)

$

$

Not available

13

Gravely 051098

ROD, HOLD DOWN
(Superseded to 09030300)

$

$

Not available

14

Gravely 050781

ROD, BATTERY
(Superseded to 09030200)

$252.99

$

Usually ships in 4-12 days

0

15

Gravely 120376

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

16

Gravely 041634

TIE WRAP, BLACK
(Superseded to 07519900)

$3.49

$

Usually ships in 4-12 days

0

17

Gravely 045036

SEAT SWITCH
(Superseded to 03490500)

$15.99

$

In Stock, only 1 left!

0

18

Gravely 160515

SCR-MCH .25-20 X .50
(Superseded to 06110900)

$2.49

$

Usually ships in 4-12 days

0

19

Gravely 042176

CONN, 2-WIRE SWITCH
(Superseded to 08550000)

$3.49

$

Usually ships in 4-12 days

0

20

Gravely 020916

SWITCH
(Superseded to 02913100)

$45.99

$

In Stock, Qty 7

0

21

Gravely 050917

BATTERY, 24 FLTV

$

$

Not available

22

Gravely 052609

GA, WATER TEMPERATURE
(Superseded to 58902100)

$

$

Not available

23

Gravely 051212

SWITCH, BLANK
(Superseded to 09003300)

$4.99

$

Usually ships in 4-12 days

0

24

Gravely 038058

CONNECTOR
(Superseded to 20645101)

$7.99

$

In Stock, Qty 7

0

25

Gravely 050673

LIGHT, INDICATOR
(Superseded to 05128700)

$6.99

$

In Stock, only 1 left!

0

26

Gravely 045842

KEY CHAIN
(Superseded to 03490000)

$

$

Not available

27

Gravely 045488

IGNITION SWITCH KEY
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

28

Gravely 045490

CAP - IGNITION SWITCH
(Superseded to 07517700)

$3.99

$

Usually ships in 4-12 days

0

29

Gravely 045489

NUT - PANEL .562-24 GRECO
(Superseded to 06517400)

$20.99

$

In Stock, only 1 left!

0

30

Gravely 019667

WSHR-LOCK INT .563 X .040 PL
(Superseded to 06310900)

$2.49

$

In Stock, only 2 left!

0

31

Gravely 019223

IGNITION SWITCH
(Superseded to 59211800)

$68.99

$

In Stock, Qty 13

0

32

Gravely 046060

SWITCH, LIGHT
(Superseded to 08973300)

$6.99

$

In Stock, only 1 left!

0

33

Gravely 045921

CVR
(Superseded to 20822800)

$

$

Not available

34

Gravely 045037

FUSE, 25 AMP
(Superseded to 08961800)

$3.99

$

In Stock, only 4 left!

0

35

Gravely 045922

TERM., FOR 14-16 GA WIRE
(Superseded to 20822900)

$

$

Not available

36

Gravely 045920

ASM, CONN WEATHER TIGHT
(Superseded to 20822700)

$

$

Not available

37

Gravely 045237

SWITCH, PREHEATER
(Superseded to 08967700)

$

$

Not available

38

Gravely 038256

HOUR METER
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

39

Gravely 045513

HEADLAMP, 3 X 5 HALOGEN
(Superseded to 08969000)

$

$

Not available

40

Gravely 046136

TERMINAL, MALE
(Superseded to 08973800)

$

$

Not available

41

Gravely 047140

TERM., RING TONGUE
(Superseded to 20860200)

$

$

Not available

42

Gravely 011676

NUT-SPEED .25-20
(Superseded to 07016800)

$

$

Not available

43

Gravely 040215

MODULE, TIME DELAY
(Superseded to 59000400)

$185.99

$

Usually ships in 4-12 days

0

44

Gravely 040216

RELAY
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

45

Gravely 178383

WSHR-LOCK 10 X .047 MED PL
(Superseded to 06308100)

$1.49

$

Usually ships in 4-12 days

0

46

Gravely 453248

NUT-HEX 10-32

$

$

Not available

47

Gravely 090414

WIRE HARNESS, SOLENOID
(Superseded to 09041400)

$

$

Not available
