989051 (PM 400) - Gravely Pro-Master Zero-Turn Mower, 31hp Yanmar (SN: 000101 & Above) COOLING SYSTEM Parts Diagram

Pro-Master Zero-Turn Mower, 31hp Yanmar

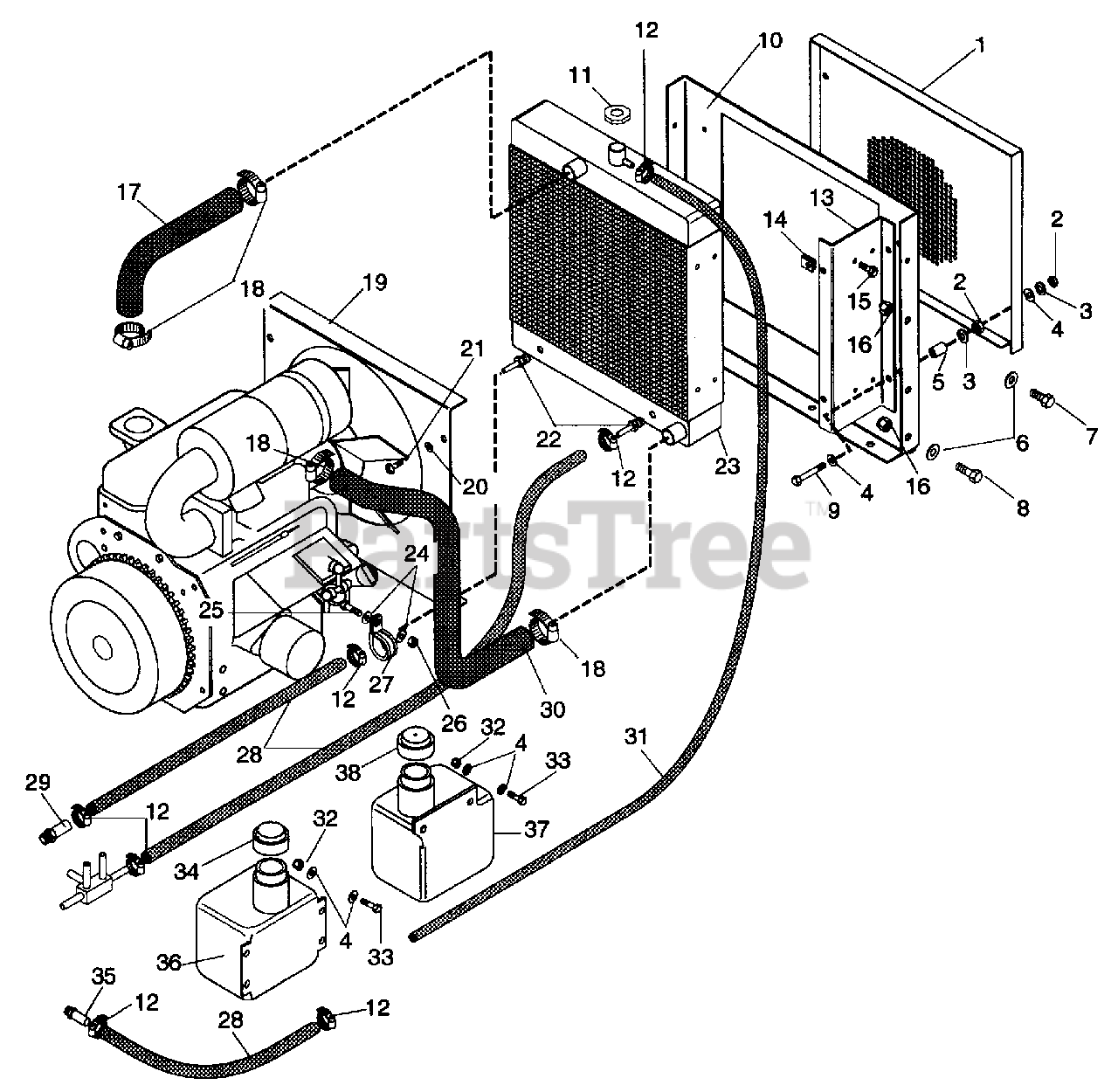

COOLING SYSTEM Parts Diagram

  • Title

1

Gravely 044520

CVR, AIR
(Superseded to 09080800)

$

$

Not available

2

Gravely 120376

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

3

Gravely 120214

WSHR-LOCK .313 X .078 PL
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 120393

WSHR-FL-STL .344 X .688 X .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 038696

BSHG-SLV .407 X .625 X .750 PL
(Superseded to 05525700)

$7.49

$

In Stock, only 1 left!

0

6

Gravely 120396

WSHR-FL-STL .531 X 1.062 X .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 180173

BLT-HEX .50-13 X 1 PL GR 5
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

8

Gravely 180177

BLT-HEX .50-13 X 1.50 PL GR 5
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

9

Gravely 180087

BLT-HEX .31-18 X 2.00 PL GR 5
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

10

090403

MOUNT, RADIATOR

$

$

Not available

11

Gravely 046291

CAP, RADIATOR
(Superseded to 08977200)

$

$

Not available

12

Gravely 032045

HOSE CLAMP
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

13

Gravely 049314

BRKT, RADIATOR
(Superseded to 08988000)

$

$

Not available

14

Gravely 032369

NUT-RTNR .25-20 X .56
(Superseded to 07009000)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 180073

BLT-HEX .31-18 X .50
(Superseded to 05901904)

$1.49

$

In Stock, Qty 13

0

16

Gravely 435507

NUT-LK-NYL .50-13 PL
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

17

Gravely 090402

HOSE, UPPER RADIATOR
(Superseded to 09040200)

$

$

Not available

18

Gravely 046365

CLAMP-HOSE 1.50 X .81 X 1.42
(Superseded to 06922200)

$5.99

$

Usually ships in 4-12 days

0

19

Gravely 053269

CVR, FAN
(Superseded to 09031200)

$

$

Not available

20

Gravely 120392

WSHR-FL-STL .281 X .625 X .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 160541

SCR-MCH .25-20 PAN HD
(Superseded to 06113500)

$2.99

$

In Stock, only 3 left!

0

22

Gravely 049257

ADPTR .38 MA PIPE TO .38 TUBE
(Superseded to 07020200)

$

$

Not available

23

Gravely 050137

RADIATOR, FLAT PLATE
(Superseded to 09041500)

$

$

Not available

24

Gravely 120394

WSHR-FL-STL .406 X .812 X .065 PL
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 180122

BLT-HEX .38-16 X 1.00 PL GR 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 456004

NUT-LK-NYL .375-16 PL
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

27

Gravely 050394

CLAMP, CUSHIONED STEEL
(Superseded to 06908200)

$5.99

$

Usually ships in 4-12 days

0

28

Gravely 035636

HOSE, HYDRAULIC
(Superseded to 00921600)

$11.99

$

Usually ships in 4-12 days

0

29

Gravely 045227

FTG-ADPTR .562-18 ST THD
(Superseded to 07019600)

$

$

Not available

30

Gravely 046329

HOSE, LOWER RADIATOR
(Superseded to 08958500)

$

$

Not available

31

Gravely 048544

HOSE, 5/16 LD
(Superseded to 00922600)

$

$

Not available

32

Gravely 419455

NUT-LK 10-24 NY PL
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 180079

BLT-HEX .44-20 X .75 GR 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 090360

CAP, 2" VENTED
(Superseded to 09036000)

$21.99

$

Usually ships in 4-12 days

0

35

Gravely 022145

CONN, HOSE
(Superseded to 08903600)

$

$

Not available

36

Gravely 053402

TANK, PLASTIC 2.0 QT
(Superseded to 09033800)

$

$

Not available

37

Gravely 044385

TANK, PLASTIC 1.5 QT
(Superseded to 09032400)

$

$

Not available

38

Gravely 045243

CAP, 1-5/8 VENTED
(Superseded to 08967800)

$

$

Not available

NS

Gravely 033926

G-DECAL, DANGER HAND
(Superseded to 05350300)

$31.99

$

Usually ships in 4-12 days

0
